on Board Air Compressors 12 Volt Air Compressors
Shenzhen Zhongtaijia Packaging, Co. Ltd- After-sales Service：1 Year
- Warranty：1 Year
- Material：Copper Iron
- Certification：ISO,TS16949, ISO9001
- Car Make：Carteeair
- OEM：Yes
Base Info
- Model NO.：X098
- Type：Air Suspension
- Specification：152L*53W*109MM
- Trademark：CARTEEAIR
- Origin：Huizhou, China
Description
Basic Info.
Model NO. X098 Type Air Suspension Specification 152L*53W*109MM Trademark CARTEEAIR Origin Huizhou, ChinaProduct Description

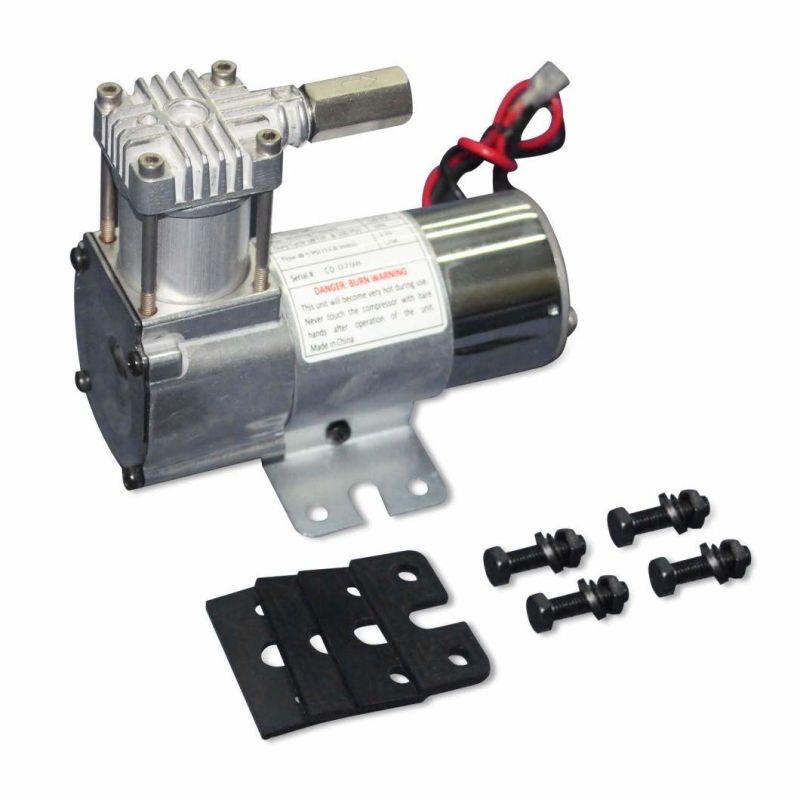

X098 air compressor offer a light duty solution for smaller air requirements and are meant to fill no larger than a one-gallon air tank.
SPECIFICATIONS:
duty cycle: 10% @ 100 psi
flow rate: 1.53 cfm @ 0 psi
max working pressure: 130 psi
intermittent pressure: 220 psi
volt: 12v
amp: 13a
ingress protection rating: ip54
cylinder: Φ30mm
Max. Ambient Temp: +158°F
Min. Ambient Temp: -4°F
Dimensions: 5.6″L x 3.1″W x 4.7″H
Net Weight: 2.55 lbs
Accessories:
inline check valve
vibration isolators
mounting hardware
Omega bracket
PERFORMANCE DATA
| PSI | CFM | A | BAR | LPM | A |
| 0 | 1.53 | 7 | 0 | 43.5 | 7 |
| 10 | 1.00 | 9 | 1.0 | 28.0 | 9 |
| 20 | 0.95 | 10 | 2.0 | 25.5 | 11 |
| 30 | 0.90 | 11 | 3.0 | 22.7 | 11 |
| 40 | 0.85 | 11 | 4.0 | 20.7 | 12 |
| 50 | 0.77 | 12 | 5.0 | 18.3 | 12 |
| 60 | 0.72 | 12 | 6.0 | 16.3 | 12 |
| 70 | 0.65 | 12 | 7.0 | 13.7 | 12 |
| 80 | 0.60 | 12 | 8.0 | 11.7 | 12 |
| 90 | 0.54 | 12 | 9.0 | 10.0 | 11 |
| 100 | 0.48 | 12 | |||
| 110 | 0.44 | 12 | |||
| 120 | 0.39 | 12 | |||
| 130 | 0.35 | 11 |
MAINTENANCE & REPAIRS
Periodically check all electrical and fitting connections. Clean and tighten as needed.Periodically check all mounting screws. Tighten as needed.
Replace air filter element periodically. Replacement frequency depends on operating frequency and operating environment. For frequent use in dusty environment, we recommend that you replace air filter element at least once a month.
Regularly clean dust and dirt from compressor cooling fins and motor housing.
Your air compressor is equipped with a permanently-lubricated, maintenance-free motor. Never try to lubricate the compressor.
All repairs should be performed by Manufacturer or Manufacturer's Authorized Service Agencies only.
CAUTION: Never touch the air compressor or fittings connected to the air compressor, with bare hands during or immediately after usage. It will become very hot during and after use. If necessary, wear heat resistant gloves.
