• Model NO.：LM335-WN120-24V
• LED Supplier：Honglitronic,Osram,Samsung
• LEDs material：packaged by 99.99% pure gold wire
• LED BINs：3-Step,5-Step, same BIN for each order
• LED Chip Brand：Sanan(Epistar optional)
• PCB Width：8mm
• PCB material：Double-sided coated pure copper
• PCB Thickness：2Oz(front 35um,back 35um)
• Adhesive Tape：9495 3000LSE 3M tape
• IP Grade：IP20,IP60,IP65,IP68
• Lifespan：5000 hours
• Warranty：3years
• CRI：Ra>80
• Input Voltage：DC24V
• Color Temperture：2700K,3000K,4000K,6500K
• Transport Package：Neutral Packing, OEM Packing Are Available
• Specification：CE, RoHS, FCC
• Trademark：LEOMAY
• Origin：Guangdong, China
• HS Code：9405409000
• Production Capacity：10000 Meter,Day

Basic Info.

Model NO. LM335-WN120-24V LED Supplier Honglitronic/Osram/Samsung LEDs material packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order LED Chip Brand Sanan(Epistar optional) PCB Width 8mm PCB material Double-sided coated pure copper PCB Thickness 2Oz(front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Lifespan 5000 hours Warranty 3years CRI Ra>80 Input Voltage DC24V Color Temperture 2700K/3000K/4000K/6500K Transport Package Neutral Packing, OEM Packing Are Available Specification CE, RoHS, FCC Trademark LEOMAY Origin Guangdong, China HS Code 9405409000 Production Capacity 10000 Meter/Day

Product Description

Product Description
Product Specification:

Model NO	LM335-WN120-24V-8MM
Product Name	SMD335  120LEDS/M  LED strips
PCB Width	8MM
LED Qty/m	120leds/m 335

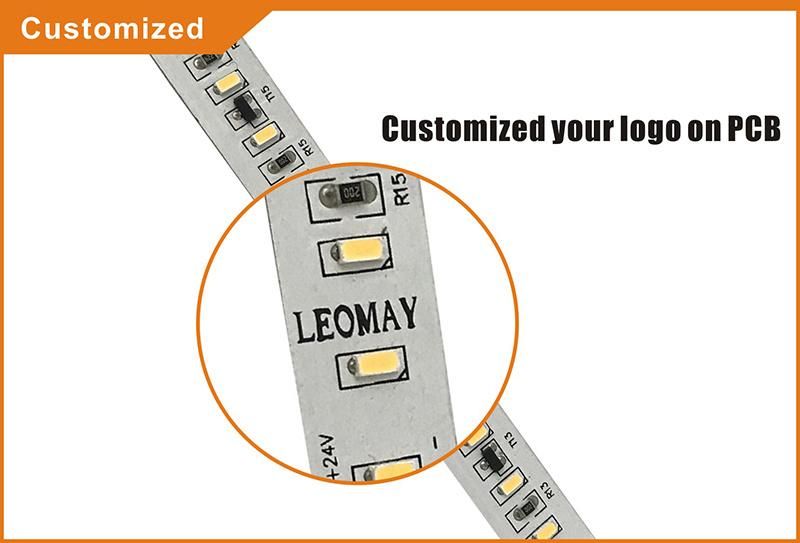

PCB Materials	2Oz Double-sided coated pure copper(can print your logo on PCB)
Voltage(V)	24V DC
Rated Power(W)	9.6W/M,48W/5M
Luminous(lm/m)	840lm/m
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K

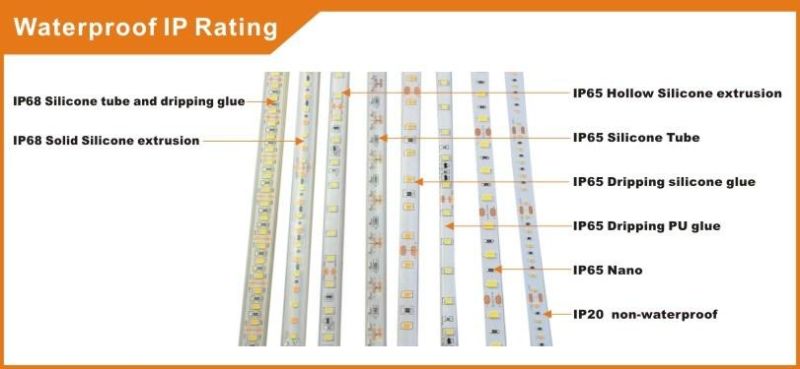

IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120
Product Size(mm)	8*5000mm

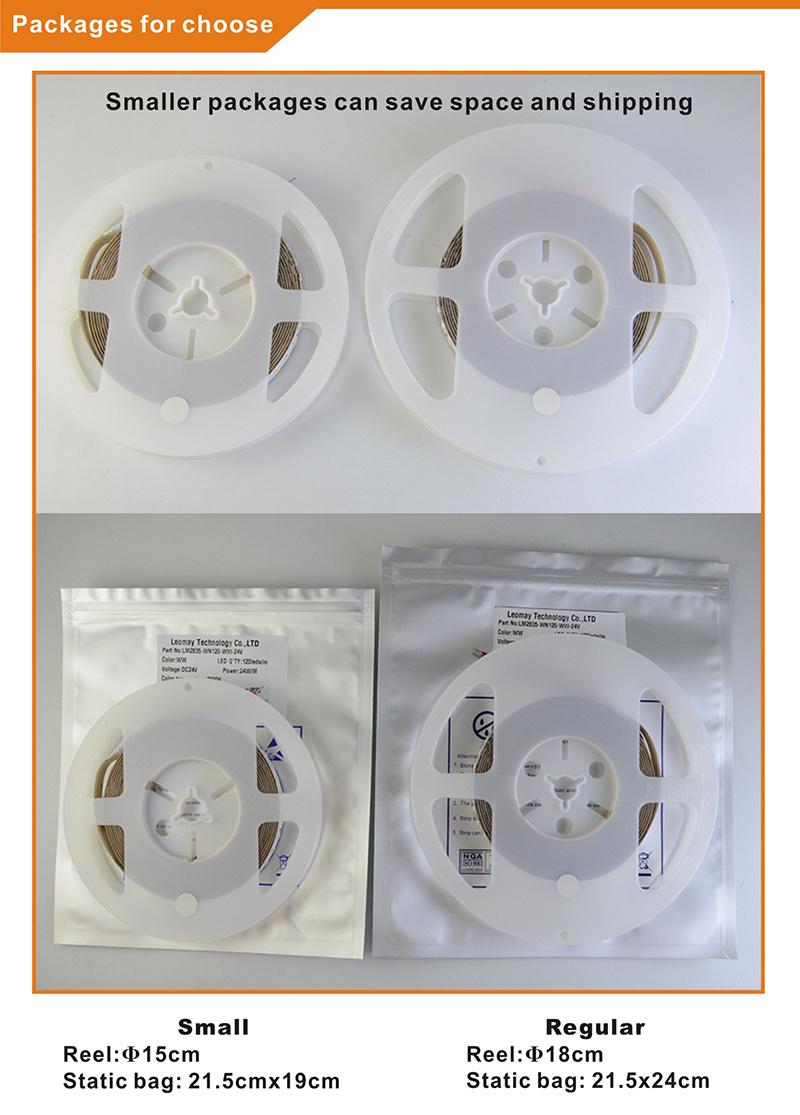

Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	3 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL,CE,Rohs,FCC.
Warranty	3 Years

Product Features:

a. CE, RoHs, UL, FCC certificate
b. Reliable SMD Source, Epistar. SMD 335, super brightness, high CRI, ideal for restraurant and supermarket, make everything looks more real.
c. Operating low voltage (DC12V, DC24V) for human safety.
d. Energy saving and environmental conservation, long lifespan.

Product Applications:

a. Indoor and outdoor decoration lightings.
b. Large scale backlight.
d. Window display lighting.
e. Building contour decorative lighting.
f.  Ad. Signs, light boxes.
g. Landscape outlines.
h. Car and motorcycle decorative lighting.
i. Bridge edge lighting.
j. Architectural decorative lighting.
k. Emergency hallway lighting.
l. Festival lighting, like Christmas.

Model	LED QTY	Volt	Power	Lumen/m	CRI	PCB Width	IP Rate	Color
LM335-WN60	60leds/m	12V/24V	4.8w/m	360lm/m	80+	8mm	IP33/65/67/68	W/WW/R/Y/G/B
LM335-WN120	120leds/m	12V/24V	9.6w/m	720lm/m	80+	8mm	IP33/65/67/68	W/WW/R/Y/G/B
