- Model NO.：STL12-160W
- Lamp Power：160W
- Power Supply：Solar
- Average Life：80000h
- Application：Highway, Square, Garden
- IP Rating：IP66
- Certification：CE, RoHS, CCC, UL, ISO, FCC, EMC, GS
- Voltage：DC12V

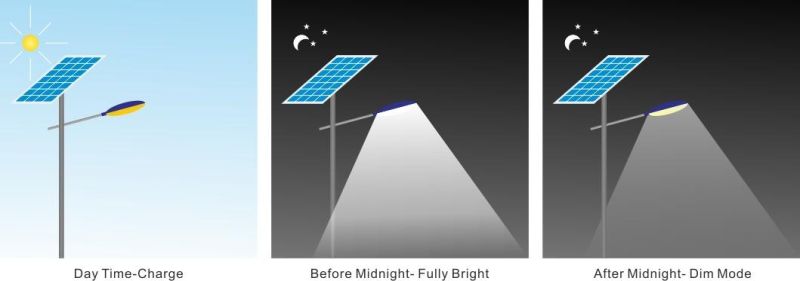

- Lighting Time："Dusk-to-Dawn 12 Hours with Dim Energy Saving Mode
- LED Chip Brand：USA Bridgelux 210lm,W
- Controller：Smart MPPT
- Back up Days：3 Days
- Maintenance：10 Years Free Maintenance
- Mounting Height：12-13m
- Distance Between Poles：30-35m
- Solar Panel：220W*2PCS
- Battery：Lead Battery
- Working Mode：Full Power and Energy Saving Mode
- Transport Package：Carton,Plywood Box,Pallet,Bubble Film,Woven Fabric
- Specification：A Grade
- Trademark：SunMaster
- Origin：Zhejiang, China.
- HS Code：9405409000
- Production Capacity：3, 000PCS ,Month
Basic Info.
Model NO.
STL12-160W
Lamp Power
160W
Power Supply
Solar
Average Life
80000h
Application
Highway, Square, Garden
IP Rating
IP66
Certification
CE, RoHS, CCC, UL, ISO, FCC, EMC, GS
Voltage
DC12V
Lighting Time
"Dusk-to-Dawn 12 Hours with Dim Energy Saving Mode
LED Chip Brand
USA Bridgelux 210lm/W
Controller
Smart MPPT
Back up Days
3 Days
Maintenance
10 Years Free Maintenance
Mounting Height
12-13m
Distance Between Poles
30-35m
Solar Panel
220W*2PCS
Battery
Lead Battery
Working Mode
Full Power and Energy Saving Mode
Transport Package
Carton,Plywood Box,Pallet,Bubble Film,Woven Fabric
Specification
A Grade
Trademark
SunMaster
Origin
Zhejiang, China.
HS Code
9405409000
Production Capacity
3, 000PCS /Month
Product Description
1.Excellent quality LED and human induction PIR more senstitive.2.MPPT Superier controller efficiency more than 96%,time control,light on/off.3.LiFePO4 battery,good safety performance,high capacity,long life,high and low temperateure protection.4.Unique lens design,with excellent illumination and light transmittance.5.IP67 Metal switch,more durable.

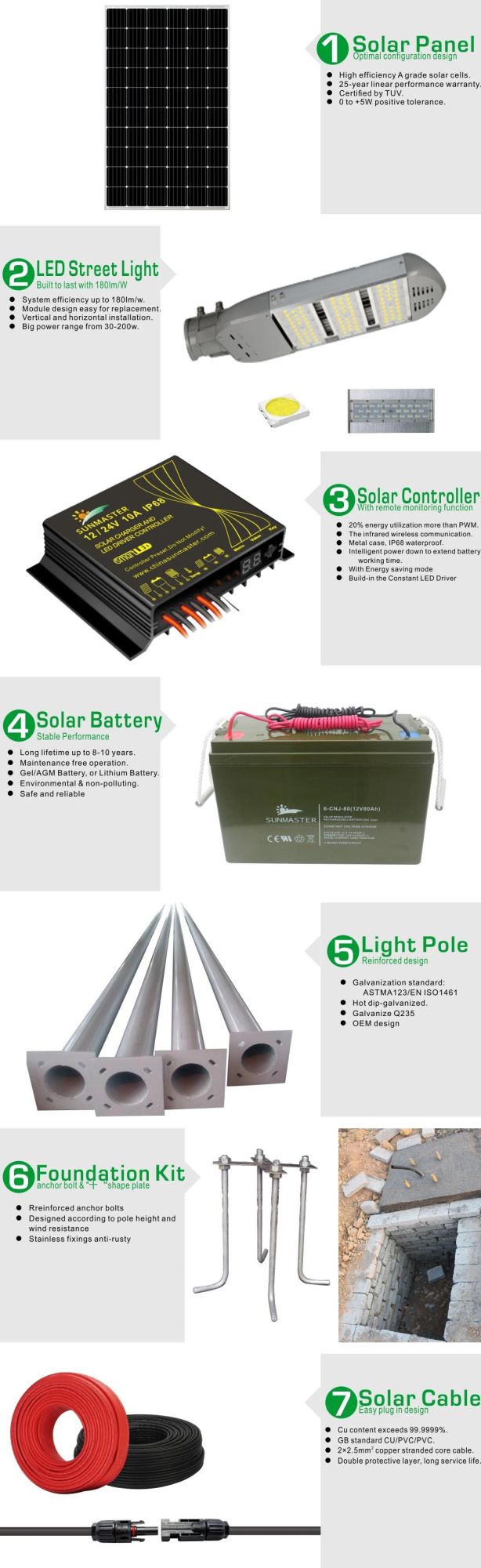

| Lighting Time | 10-14hrs/day(adjustable),3-7 rainy days back-up |
| Solar Panel | Poly solar panel 220W(optional)*2pcs,high efficiency,life span >25years 80% rated output power |
| Gel Battery | Capacity 160Ah/12v(optional)*2pcs,free maintenance,better weather-ability(-20ºC to +55ºC)
Deep cycle 3500 times @ 30% DOD,low self discharge rate,life span>8 years |
| Solar Controller | MPPT/PWM,intelligent output power control,light on/off+time off,remote control,waterproof IP68 over-charge/discharge/over heat/over load/short circuit/anti-reverse protections,life span:>10 years |
| LED Lamp | LED power 160w,USA Bridgelux LED chip efficiency 200lm/w,Whole LED lamp efficiency 180lm/w, IP65 or higher,CRI>70Ra,C.T. 3000-6500k(optional),life span>100,000hrs |
| Light Pole | Q235 steel material,hot-dip galvanized and powder coating,equipped with lamp arm/solar panel mounting bracket/flange/fittings/foundation kit,wind resistance>150km/h,life span>20 years |
| Solar Battery Installtion Position |
| Recommended configurations |
| Lamp | Pole | Solar Panel | GEL Battery | Lighting Space | Controller | Working Hours | Backup |
| 20w | 3-4m | 50w*1pcs | 40Ah*1pcs | >12m | MPPT | 10-14 hours | 3-5days |
| 30w | 4-5m | 80w*1pcs | 60Ah*1pcs | >14m | MPPT | 10-14 hours | 3-5days |
| 40w | 5-6m | 100w*1pcs | 80Ah*1pcs | >15m | MPPT | 10-14hours | 3-5 days |
| 50w | 6-7m | 120w*1pcs | 50Ah*2pcs | >17m | MPPT | 10-14 hours | 3-5days |
| 60w | 7-8m | 150w*1pcs | 60Ah*2pcs | >20m | MPPT | 10-14 hours | 3-5 days |
| 70w | 7-8m | 180w*1pcs | 70Ah*2pcs | >22m | MPPT | 10-14 hours | 3-5 days |
| 80w | 8-9m | 200w*1pcs | 80Ah*2pcs | >24m | MPPT | 10-14 hours | 3-5 days |
| 90w | 8-9m | 120w*2pcs | 90Ah*2pcs | >24m | MPPT | 10-14 hours | 3-5 days |
| 100w | 9-10m | 130w*2pcs | 100Ah*2pcs | >27m | MPPT | 10-14 hours | 3-5 days |
| 120w | 10-11m | 150w*2pcs | 120Ah*2pcs | >30m | MPPT | 10-14 hours | 3-5 days |
| 140w | 11-12m | 180w*2pcs | 140Ah*2pcs | >33m | MPPT | 10-14 hours | 3-5 days |
| 150w | 11-12m | 200w*2pcs | 150Ah*2pcs | >33m | MPPT | 10-14 hours | 3-5 days |
| 180w | 12-13m | 250w*2pcs | 180Ah*2pcs | >35m | MPPT | 10-14 hours | 3-5 days |
| 200w | 12-13m | 280w*2pcs | 200Ah*2pcs | >35m | MPPT | 10-14 hours | 3-5 days |
