• Model NO.：SF17-2
• Output Torque：20.4kn.M
• Gear Ratio：102:1
• Static Axial Load：970kn.M
• Static Radial Laod：390kn.M
• Inner Dia.：365mm
• Outer Dia.：480mm
• Transport Package：Standard Exporting Package
• Specification：SF17-2
• Trademark：Coresun Drive
• Origin：Changzhou
• HS Code：8482109000
• Production Capacity：6000PCS,Month

Model

SF17

Place of Origin

Changzhou,China

Brand

Coresun Drive

Type

Material

42CrMo

Output Torque

20.4KN.m

Tilting Moment Torque

135.8KN.m

Holding Torque

72.3K N.m

Static Axial Rating

970KN

Static Radial Rating

390KN

Dynamic Axial Rating

114KN

Dynamic Radial Rating

100KN

Gear Ratio

102:1

Ourter Dia.

420mm

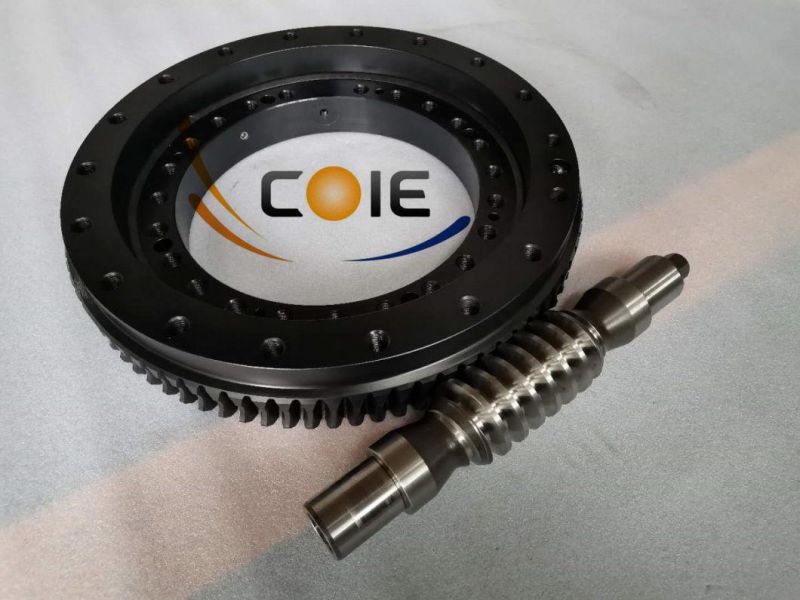

Slewing bearing is also called: Slewing ring bearing/ Turntable bearing/ Slewing ring etc. Slewing Ring Bearings can accommodate axial, radial and moment loads acting single or in combination and in any direction. They are not mounted in a housing or on a shaft, but directly to a seating surface. The inner and outer ring are supplied with mounting holes. Both rings may have integral gears. They are also referred to as slewing rings and tabletop bearings. Slewing ring bearing can perform oscillating (slewing) as well as rotating movements.  They may be used without gears or with internal or external gears.

Structure types of Slewing Bearings

-- Single-row 4-point contact ball series

-- Single-row crossed roller series

-- Double-row ball series

-- Three-row roller series

-- Roller and ball combination series

-- Quenching slewing ring bearing

-- For Non-gear,External Gear,Internal Gear

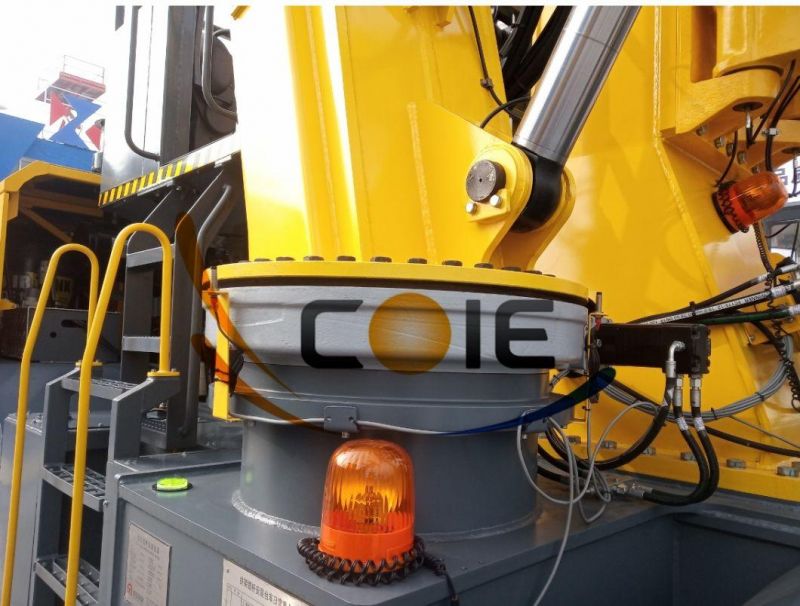

Application of Slewing Bearings

Mining machine, construction equipment, port hoisting machine, port oil transfer equipment,

onshore and offshore crane, excavator,concrete machine, revolving grabbers and winches,

plastic and rubber machine, weave machine, logging industry machines, wind-power generation,

electronic power plant, water treatment machinery, drilling equipment and steering applications.

About  Us:
 We have established a solid foundation in technology,equipment,personal and management we strengthen the complete quality control and service system.During ten years quick development,Our excavators and parts have been exporting to South Africa Africa Ghana Zambia Nigeria Uganda Kenya Bangladesh Nepal India Pakistan Thailand Philippines Malaysia Indonesia Singapore South Korea Israel Ireland South America Brazil Columbia Mexico Russia Ukraine Australia and so on.

We provide all parts for Coresun excavator,so its convenient for you if you want to buy kinds of parts together.And also please do not worry about the price and quality!We totally have advantage in price and quality compared with foreign trade company.

Coresun Drive makes the tilting moment torque testing to ensure the quality and safety factor on slewing bearing bearing.
Quality is the foundation of enterprise development.
