• Model NO.：LM3528-WN96-24V
• PCB Width：8mm
• Adhesive Tape：9495 3000LSE 3M tape
• Length Per Roll：5m,roll
• View angle：120 degree
• Dimmable：Yes
• LED Supplier：Honglitronic,Osram,Samsung
• Chip Brand：Sanan(Epistar optional)
• BINs：3-Step,5-Step, same BIN for each order
• LEDs：packaged by 99.99% pure gold wire
• PCB：Double-sided coated pure copper
• PCB thickness：2Oz(front 35um,back 35um)
• IP Grade：IP20,IP60,IP65,IP68
• Transport Package：Neutral Packing, OEM Packing Are Available
• Specification：UL, CE, RoHS, FCC, ERP
• Trademark：LEOMAY
• Origin：Guangdong, China
• HS Code：9405409000
• Production Capacity：10000 Meter,Day

Basic Info.

Model NO. LM3528-WN96-24V PCB Width 8mm Adhesive Tape 9495 3000LSE 3M tape Length Per Roll 5m/roll View angle 120 degree Dimmable Yes LED Supplier Honglitronic/Osram/Samsung Chip Brand Sanan(Epistar optional) BINs 3-Step/5-Step, same BIN for each order LEDs packaged by 99.99% pure gold wire PCB Double-sided coated pure copper PCB thickness 2Oz(front 35um,back 35um) IP Grade IP20/IP60/IP65/IP68 Transport Package Neutral Packing, OEM Packing Are Available Specification UL, CE, RoHS, FCC, ERP Trademark LEOMAY Origin Guangdong, China HS Code 9405409000 Production Capacity 10000 Meter/Day

Product Description

Product Paramenters

<North America market 3528 96LEDS 24V LED strip.>

Model NO	LM3528-WN96-24V-8MM
Product Name	SMD3528  96LEDS/M  LED strips
PCB Width	8MM
LED Qty/m	96leds/m 3528
PCB Materials	2Oz Double-sided coated pure copper(can print your logo on PCB)
Voltage(V)	24V DC
Rated Power(W)	7.68W/M, 38.4W/5M
Luminous(lm/m)	672lm/m
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120
Product Size(mm)	8*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	3 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL,CE,Rohs,FCC.
Warranty	3 Years

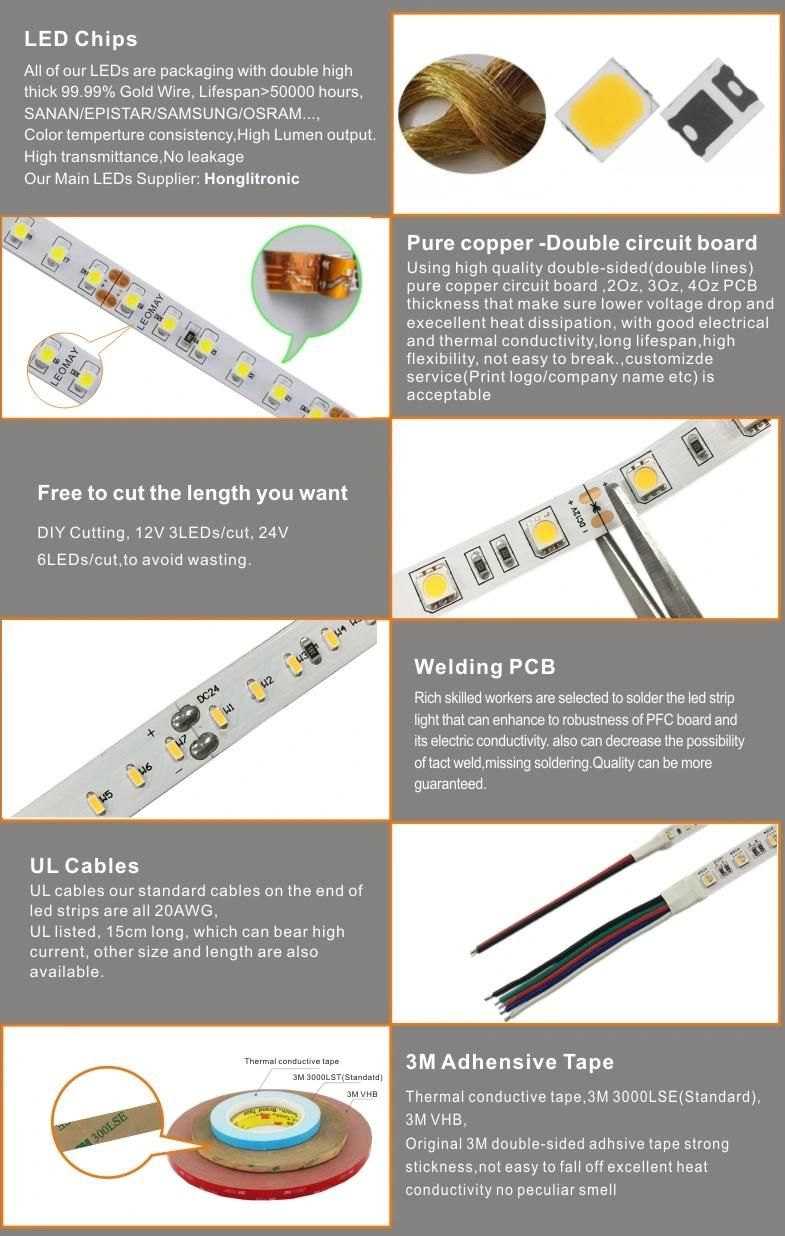

Details Images




Our Services

1. We can help all our customer in instaling, design, and accessory free.
2. Our all customer know: our connector, install cips, wires, is free with orders.
3. Any questions when using , we always fast replys with the professional methods.
4. The shipping from us, very fast, because when we know the normal prodcuts you often ordered. We will do stock produce.
5. We are very honest and careful factory direct sell the products. So all products is tested very good and packing very strong.
6. We are will be your most professional and cheapest, fastest supplier.




Packing & Delivery

Packing

1. LED Strip Normal Length: 5meters/roll, in a anti-static bag.
2. Our Box Size for 80rolls 10MM width Led strip and 12MM width
3. 50rolls per box
4. Size:46CM*35CM*25CM
5. 50Rolls led strip in 1 Box
6. weight: 10.5±0.5KG/BOX

Delivery
We mainly ship by DHL, International Express and others acording to customer's requirement.

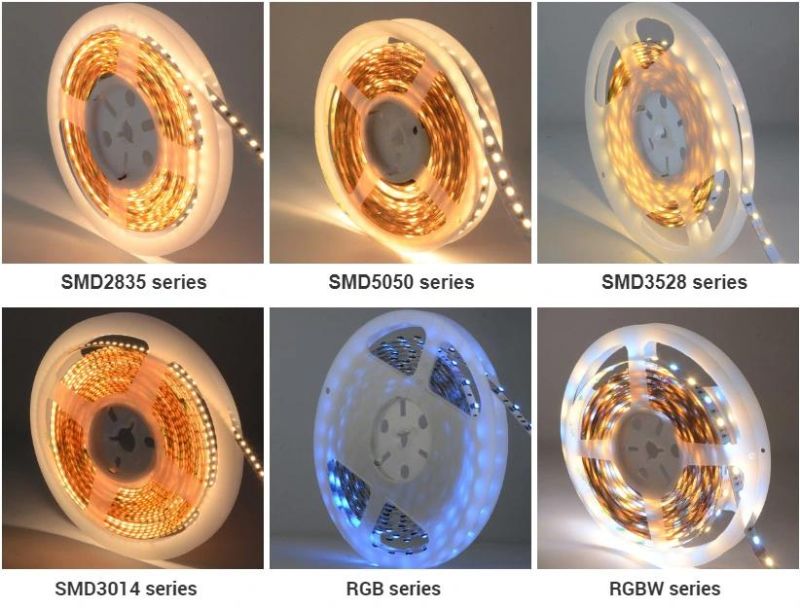

Recommend Products




Company Profile





Our Advantages


1. UL,FCC,CE,RoHS,CCC,TUV,VDE,CUL certificate.
2. Reliable SMD Source, Epistar. SMD 5050, super brightness, high CRI, ideal for restraurant and super market, make everything looks more real.
3. Operating low voltage (DC12V, DC24V) for human safety.
4. Energy saving and environmental conservation, long lifespan.
