Italy Ceramic Ball Angular Contact Ball Bearing 7007cdga/P4a SKF
Ruian Sowinpak. Co., Ltd.- Contact Angle：15°
- Aligning：Non-Aligning Bearing
- Separated：Unseparated
- Rows Number：Single
- Load Direction：Radial Bearing
- Material：Ceramic
Base Info
- Model NO.：7007CDGA,p4A
- Place of Origin：Shandong China (Mainland)
- Transport Package：as Per Client′s Requirement
- Trademark：SKF
- Origin：China
- HS Code：8482102000
- Production Capacity：60000 Pieces,Month
Description
Basic Info.
Model NO. 7007CDGA/p4A Place of Origin Shandong China (Mainland) Transport Package as Per Client′s Requirement Trademark SKF Origin China HS Code 8482102000 Production Capacity 60000 Pieces/MonthProduct Description

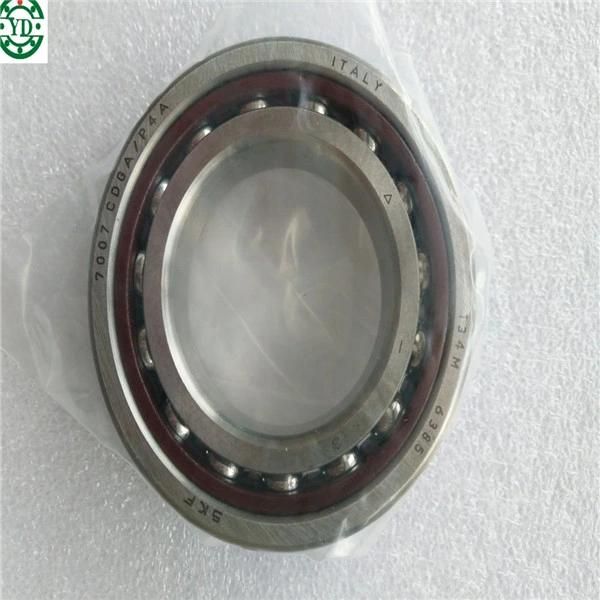

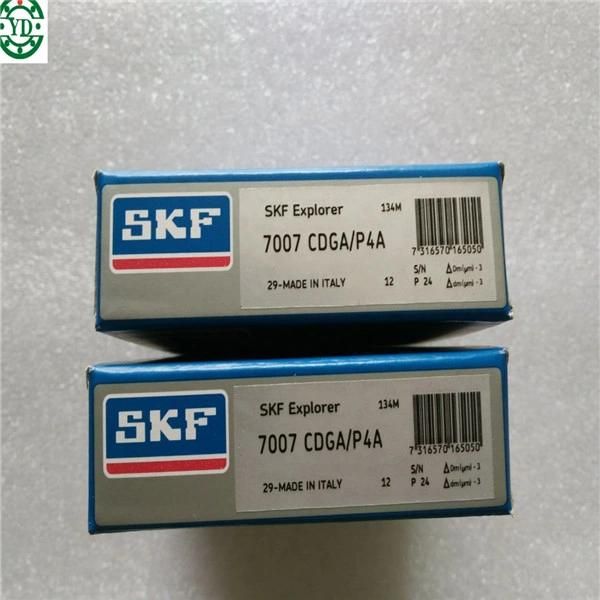

Italy ceramic ball angular contact ball bearing 7007CDGA/p4A SKFQuick Details
Structure: Angular Contact
Type: Ball
Bore Size: 35 mm
Outside Diameter: 62 mm
Model Number: 7007AC
Precision Rating: P0 p6 p5
Seals Type: Open
Number of Row: Single Row
Width: 14mm
Service: OEM
Cage: Bakelite, brass
Vibration: Zv1, Zv2 and Zv3
Clearance: C0, C2, C3, C4, C5
Cage materia: Ring Material Chrome Steel, Carbon steel, Stainless steel
Greese: As you requirement, such as SRL, PS2, Alvania R12 and so on
Specifications
1. In high speed application
2. Combination arbitrarily
3. Lower noise and higher speed
4. Higher rated load
Packaging & Delivery
Packaging Detail: Angular contact ball bearing 1. Neutral Package: Plastic Bag + Carton + Pallet; 2. Commercial Package: Plastic Bag + Box + Carton + Pallet; 3. As the clients' requirement.
Delivery Detail: 5-30days
Applications
The raceways of angular contact ball bearing in the inner and outer rings can have relative displacement on the horizontal axis. Therefore, this design can make it withstand combined loads, namely, supporting radial and axial loads simultaneously. The axial load capacity of angular contact ball bearing improves with the increasing contact angle.
| BearingNo. | Bore(mm) | O.D.(mm) | Width(mm) | Weight (lbs) |
| 7308 | 40 | 90 | 23 | 1.38 |
| 7309 | 45 | 100 | 25 | 1.85 |
| 7310 | 50 | 110 | 27 | 2.40 |
| 7311 | 55 | 120 | 29 | 3.06 |
| 7312 | 60 | 130 | 31 | 3.84 |
| 7313 | 65 | 140 | 33 | 4.65 |
| 7314 | 70 | 150 | 35 | 5.64 |
| 7315 | 75 | 160 | 37 | 6.77 |
| 7316 | 80 | 170 | 39 | 8.05 |
| 7317 | 85 | 180 | 41 | 9.57 |
| 7318 | 90 | 190 | 43 | 11.2 |
| 7319 | 95 | 200 | 45 | 13.0 |
| 7320 | 100 | 215 | 47 | 15.8 |
| 7321 | 105 | 225 | 49 | 18.1 |
| 7322 | 110 | 240 | 50 | 21.2 |
| 7324 | 120 | 260 | 55 | 32.4 |
| 7326 | 130 | 280 | 58 | 38.8 |
| 7328 | 140 | 300 | 62 | 47.4 |
| 7330 | 150 | 320 | 65 | 55.3 |
| 7332 | 160 | 340 | 68 | 65.7 |
| 7334 | 170 | 360 | 72 | 77.8 |
| 7336 | 180 | 380 | 75 | 90.2 |
| 7338 | 190 | 400 | 78 | 104 |
| 7340 | 200 | 420 | 80 | 117 |
| 7000C | 10 | 26 | 8 | 0.042 |
