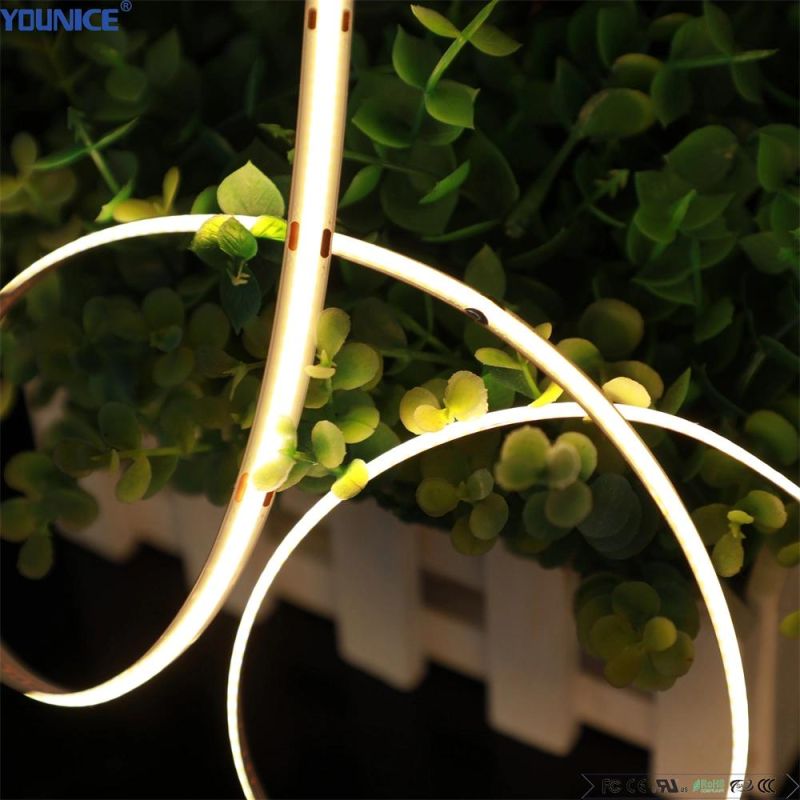

Ra90 High Brightness 95lm/W 10mm Width DC24V 528LEDs/M LED COB Strip

Qingdao Haochen Packing Co., Ltd.
  • Certification：FDA, GS, SAA, FCC, CCC, LVD, UL, EMC, CE
  • Power：15W,M
  • Emitting Color：White
  • Voltage：DC24V
  • IP Rating：IP54
  • LED Quantity：528 LEDs,M

Base Info

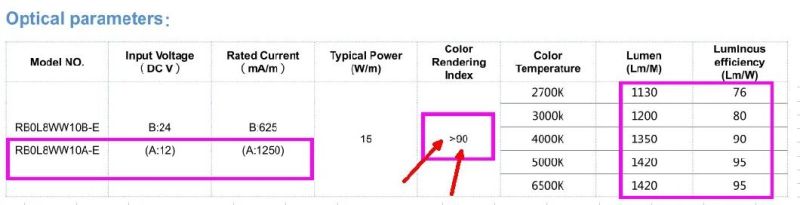

  • Model NO.：RB0L8WW10B-E
  • Package：5m,Roll
  • Color：2700K-6500K
  • Aluminous Flux：1130-1420 Lm,M
  • Length：5m
  • Warranty：3 Years
  • IP：IP20 IP67 IP68 IP54
  • Delivery Time：5days
  • Shipping：DHL,UPS,FedEx, by Sea, by Air
  • Rated Current：625mA,M
  • Cut-Able Unit：45.45mm
  • LED Pitch：1.89mm
  • Luminous Efficiency：76-95lm,W
  • Width：10mm

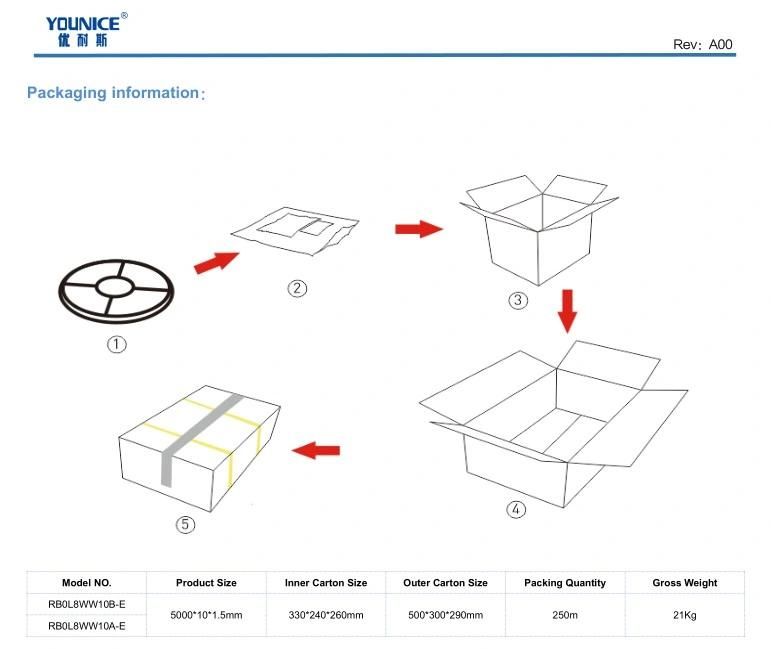

  • Transport Package：5m,Roll(Anti-Static Bag), 250m,CTN, Gw21kg
  • Specification：5M,roll(Anti-static bag), 250m,ctn, GW21kg
  • Trademark：OEM , Younice
  • Origin：Shenzhen, China
  • HS Code：9405409000
  • Production Capacity：100000m,Day

Description

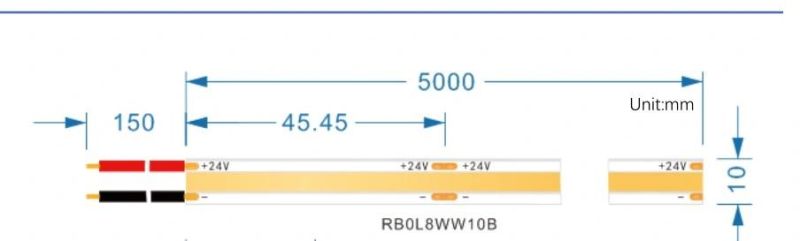

Product size5000*10*1.5 mmCut-able unit45.45mmChips Pitch1.89mmLED quantity528LEDs/mMin. bend diameterØ20 mmMounting solution3M tapeOperating ambient-25ºC~45ºCStorage Environment-25ºC~60ºC / 60% RHRa90 High Brightness 95lm/W 10mm Width DC24V 528LEDs/M LED COB StripRa90 High Brightness 95lm/W 10mm Width DC24V 528LEDs/M LED COB StripRa90 High Brightness 95lm/W 10mm Width DC24V 528LEDs/M LED COB StripRa90 High Brightness 95lm/W 10mm Width DC24V 528LEDs/M LED COB StripRa90 High Brightness 95lm/W 10mm Width DC24V 528LEDs/M LED COB StripRa90 High Brightness 95lm/W 10mm Width DC24V 528LEDs/M LED COB StripRa90 High Brightness 95lm/W 10mm Width DC24V 528LEDs/M LED COB StripRa90 High Brightness 95lm/W 10mm Width DC24V 528LEDs/M LED COB Strip
Ra90 High Brightness 95lm/W 10mm Width DC24V 528LEDs/M LED COB Strip

Ra90 High Brightness 95lm/W 10mm Width DC24V 528LEDs/M LED COB Strip
Ra90 High Brightness 95lm/W 10mm Width DC24V 528LEDs/M LED COB Strip

Ra90 High Brightness 95lm/W 10mm Width DC24V 528LEDs/M LED COB Strip
