• Model NO.：234420,M
• Outer Diameter：150mm
• Load Rating：P4,P2,P5
• Sealing Type：Sealed or Not
• Inner Diameter：100mm
• Breadth：36mm
• Loading Rating：Ca:20.8kn Coa:38kn
• Limiting Speed：Grease:8500r,Min Oil:12000r,Min
• Weight：0.42-0.46kg
• Rolling Body：Ball Bearings
• The Number of Rows：Double
• Outer Dimension：Small and Medium-Sized (60-115mm)
• Transport Package：Cases and Pallets or as Customer′s Requirment
• Trademark：ZYS
• Origin：Luoyang, Henan, China

Basic Info.

Model NO. 234420/M Outer Diameter 150mm Load Rating P4/P2/P5 Sealing Type Sealed or Not Inner Diameter 100mm Breadth 36mm Loading Rating Ca:20.8kn Coa:38kn Limiting Speed Grease:8500r/Min Oil:12000r/Min Weight 0.42-0.46kg Rolling Body Ball Bearings The Number of Rows Double Outer Dimension Small and Medium-Sized (60-115mm) Transport Package Cases and Pallets or as Customer′s Requirment Trademark ZYS Origin Luoyang, Henan, China

Product Description

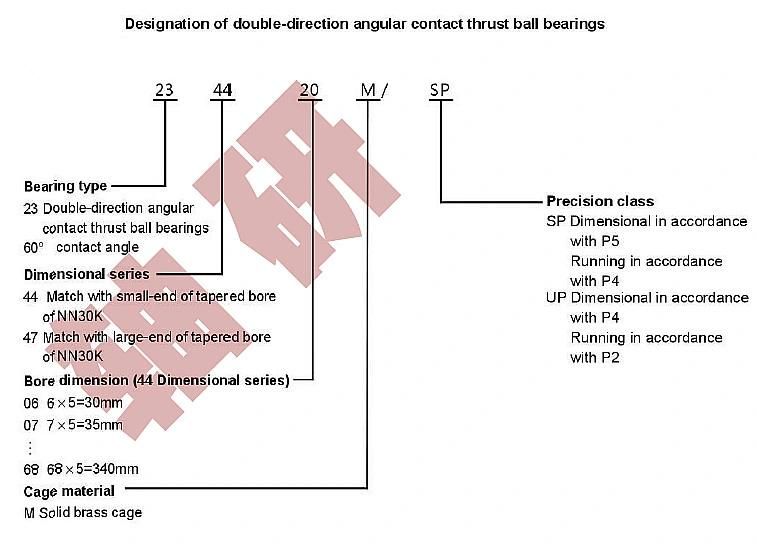

     Double-direction angular contact thrust ball bearings with two dimension series, 2344 and 2347. 2344 series are fit for the small end of taper bore of double row cylindrical roller bearings,and 2347 series for the large end.

     As for ZYS double-direction angular contact thrust ball bearings, a cirumferential oil groove and three symmetric lubrication holes are set up in the middle of outer ring. Lubricants are led into the space between the double row rolling elements and cage assemblies, then lubrication through the rotation of bearing will be realized.

    ZYS double-direction angular contact thrust ball bearings have such advantages as high accuracy, high rigidity, low temperature rise, high speed and convenient fixing and removing.


Luoyang Bearing Science And Technology Co.,ltd.


1).About ZYS company
     ZYS was formerly known as Luoyang bearing research institute, which was founded in 1958 and was the only first-class comprehensive research institute in China bearing industry.   As it became one member of China National Machinery Industry Corporation in 1999, the former institute was transformed into the science and technology enterprise. Then Luoyang Bearing Science & Technology Co., Ltd. was established in 2001.ZYS is a high-tech enterprise, which focuses on the research and development of "high-tech, precise, cutting-edge, specialized and special" bearing products, which are applied to the mainframes of national economic construction in various fields and national defense construction. It was listed at Shenzhen Stock Exchange with stock code 002046 in 2005.

2).Glory


1.China National Accreditation Laboratory for Bearing
2.State Key Laboratory for Bearings of Earth Pressure Balance Shield
3.State Quality Supervision and Testing Center for Bearing
4.National Technical Committee for Rolling Bearing Standardization
5.ISO/TC4 China Secretariat
6.National Patent Exchange Workstation
7.The Technical Committee of China Bearing Industry Association
8.The Research Center for High-speed Precision Bearing Engineering
9.The Bearing Industry Branch of Machinery Industry Professional Skill Appraisal Center
10.Listing Company in Shenzhen Stock,Stock no.002046



3).ZYS Advantage

     ZYS has a strong strength of manufacturing high-precision and high-reliability bearings and relevant parts. ZYS company not only possesses advanced bearing manufacturing equipments and international first-class measuring instruments,but also has strong strength of manufacturing,inspecting and testing the high-precision and high-reliability bearings and relevant spare parts.In the meantime,it always keeps a leading position in bearing basic theory,lubrication technology,design,material,test,information criterion and other aspects. As a leading enterprise in aerospace bearing industry of China, the company has successfully accomplished the milestone tasks of bearing assemblies for "Dong fang hong" series man-made satellite, manned spacecraft series from "Shenzhou 1" to "Shenzhou 7" and "Chang'E" lunar exploration program, which are commended by relative administrative departments for several times.


 4).Application

      The "high-tech, precise, cutting-edge, specialized and special" bearing products have been widely applied to aviation, spaceflight, navigation, machine tool, wind turbine generator, metallurgy, petroleum, chemical, medical treatment, rail transport, automobile, textile, and other fields.(example:wind bearing)



     We would like to and ready to do business with any company from all over the world.If any of ZYS products interests you or if you have interests in ZYS company,please don't hesitate to contact with us,we would like to give you ZYS best quality service any day any time!!!!



Sales Manager: Robert Dong
Address: No.1 Jilin Road, Luoyang, Henan, P.R, China

Zip Code:471039
Website: chinazys.en.made-in-china.com

OTHER HOT SALE PRODUCTS

High precision angular contact ball bearing                   Precision spindle bearing

Hybrid ceramic bearing                                                       Slewing bearing

Cylindrical roller bearing                                                      Needle roller bearing

Taper roller bearing                                                              Precision lathe bearing

Bearing measuring instrument                                          YRT rotary table bearing

High-frequency spindles                                                     Dental drill bearing

Bearing ball                                                                           Bearing making machine

etc.

Material:   GCr15,9Cr18,G20CrMo or others

Certificate:  GB/T19001-2000(ISO9001:2000),  GJB/Z9001A-2001,  GJB9001A-2001
