• Model NO.：AIT5
• Cell Type：LiFePO4
• Charging Time (H)：6
• Usage：Garden, Street
• IP Rating：IP67
• Certification：CE, ISO9001
• Voltage：12,24V
• With Light Source：With Light Source
• Application：Street, Road, Highway, Pathway, Sidewalk, Park
• Color：Grey
• Design：LiFePO4 Battery Is Built in Lamp Fixture
• Transport Package：630*310*106mm
• Specification：20W ~120W
• Trademark：INLUX SOLAR
• Origin：China
• HS Code：9405500000
• Production Capacity：200000 Sets, Year

Lighting ParametersLamp Power30W-120WLuminous FluxUp to 16000 lumensColor Temperature3000K~ 6000KOptical DistributionBat Wing, TypeIIBeam Angle150°CRI>70Lithium Battery ParametersLithium Battery Typeslithium iron phosphate (LiFePO4) battery / Soft Pack Li-ion BatteryLiFePO4 Lithium Battery  1229WH (LiFePO4 Lithium Battery) / 1665WH (Li-ion Lithium battery)Life Span> 10 years (LiFePO4 Lithium Battery) / > 6 years (Li-ion Lithium battery)Controller ParametersControllerMPPT controller/ PWM controllerSystem Voltage12V/24VMax. Charging Current5A/10A/15A/20APIR SensorOptionalProtection FunctionsShort-circuit Protection, Reverse Discharging Protection, Polarity Protection, Lightning Protection, Low Voltage load cut-off protection, Over-charge ProtectionPhysical ParametersLamp FixtureHigh-Pressure Die-Casting Aluminum. Corrosion ResistantLamp Arm AdaptorDiameter 55-65mmDimension of Product720*340*135mmWorking ModeWorking Hours per NightFrom Dusk to Dawn (adjustable)Continues Rainy Days Backup>3 days (adjustable)Environment RequirementsCharge Temperature0-55ºCDischarge Temperature-20-55ºCStorage Temperature0-50ºCInstallation RecommendationsInstallation Height6-12MetersSpacing Distance20-60 meters

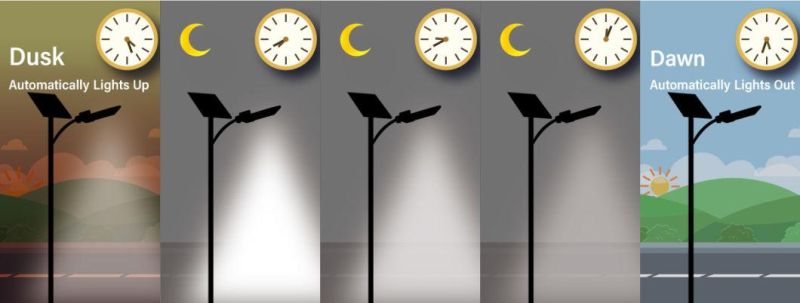

WORKING MODE

12 Lighting hours/Night + Automatic Time Control.
The lights turn on automatically at dusk, automatic brightness adjustment at night,the lights turn off automatically at dawn.

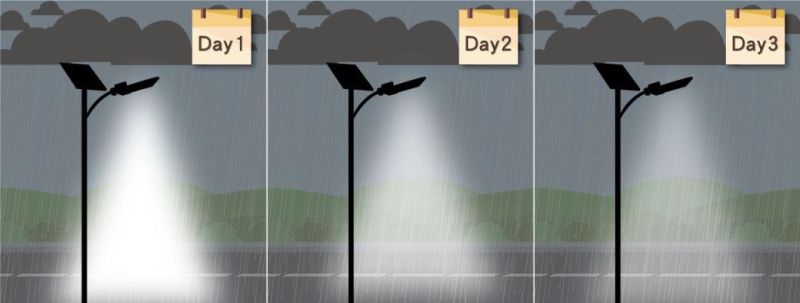

>3 Consecutive Rainy & Cloudy Days
Due to perfect power management system, the solar light can still work after more than 3 consecutive rainy and cloudy days
