• Model NO.：SNSTY-Y230
• Illumination Time：8h
• Cell Type：Lithium Battery
• Charging Time (H)：7hours
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Item Name：Solar Powered LED Garden Lighting
• LED Power：30W
• Solar PV Power：50W
• Lithium Battery：18ah
• Lumen：3000-3300lm
• Mounting Height：5-6m
• Mounting Distance：20-25m
• Working Mode：Timer Control
• Waterproof Degree：IP65
• Brand：Sinoltech
• Transport Package：Strong Carton
• Specification：30W LED 50W Solar Panel
• Trademark：SINOLTECH
• Origin：China
• HS Code：9405409000
• Production Capacity：China

Basic Info.

Model NO. SNSTY-Y230 Illumination Time 8h Cell Type Lithium Battery Charging Time (H) 7hours Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Item Name Solar Powered LED Garden Lighting LED Power 30W Solar PV Power 50W Lithium Battery 18ah Lumen 3000-3300lm Mounting Height 5-6m Mounting Distance 20-25m Working Mode Timer Control Waterproof Degree IP65 Brand Sinoltech Transport Package Strong Carton Specification 30W LED 50W Solar Panel Trademark SINOLTECH Origin China HS Code 9405409000 Production Capacity China

Product Description

30W Round  shape Integrated Solar Powered  LED Light (SNSTY-Y230)

----Main feature of SINOLTECH All in one LED solar street light:
1) Integrity design, no cabling, easy to install, various mounting methods (pole or fence)
    Pole material could be iron, wood, bamboo, plastic etc, low construction cost.
2) Adopting solar panel as power source, LED as light source, a perfect combination for energy saving.
3) Adopting high capacity long service life Lithium lron Phosphate Battery, theory life time over 5 years, excellent high temperature performance, long life time can ensure the service life of whole product.
4) Waterproof structure, safe and reliable.
5) Adopting aluminum alloy as main body material, with excellent rust-proof and corrosion-proof function.
6) With segmented power control function, during late half night, brightness reduce in order to save energy and increase practicality.

----Advantage:
This product is composed of high efficiency monocrystalline silicone solar panel, 5 years exta long service life lithium battery( same with the drive batteries of hybrid cars), high light efficiency LED lamp and intelligent controller, PIR motion sensor module, theft-resistant mounting bracket.
The most advantage of all in one solar light is easy installation, light-weight, under general normal condition, only 1 or 2 workers using a wrench could finish the installation within 5 minutes.

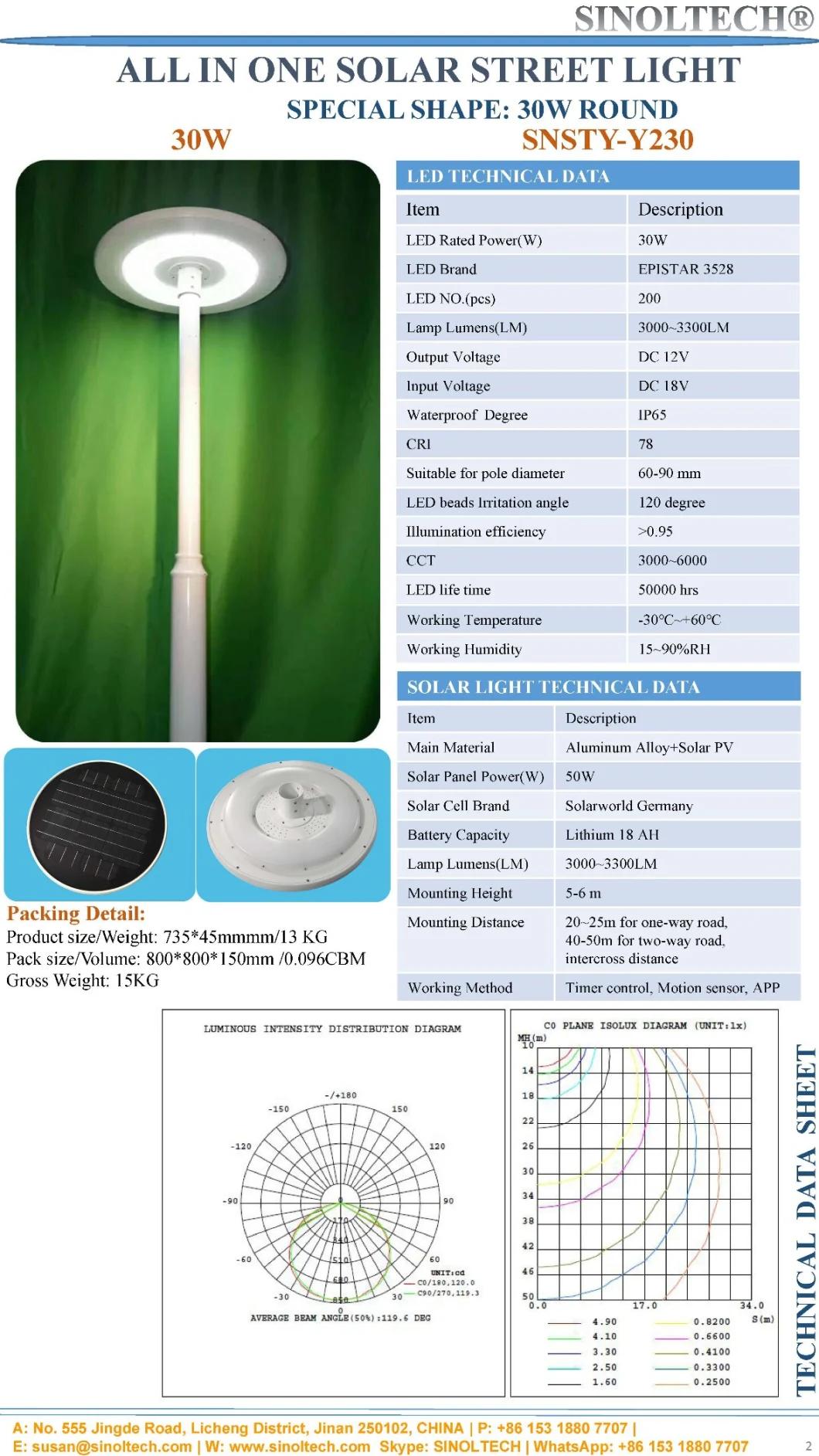

----Technical Data for 30W Timer Control Integrated solar street light (SNSTY-Y230):

Solar Panel	Max Power	18V50W(High efficiency mono solar cell)
	Life time	25 years
Battery	Type	Lithium battery 15Ah
	Life time	5 years
LED Lamp	Max power	12V 30W
(With sensor)	Led chip brand	Bridgelux from USA with high brightness
	Lumen(LM)	3000LM
	Life time	50000hours
	Viewing angle	120 degree
Charge time	By sun	9 hours
Discharge time	Saving power	more than 24 hours
	Full power	more than 10 hours
Working temp.	range(C)	-20C~+60C
Color temp.	range(k)	6500K (2700-7000K optional)
Mounting height	range(m)	7-7.5m
Space between light	range(m)	20-25m
Main lamp materials		Aluminum alloy
Certificate		CE/ROHS/IP65
Warranty period		3 years

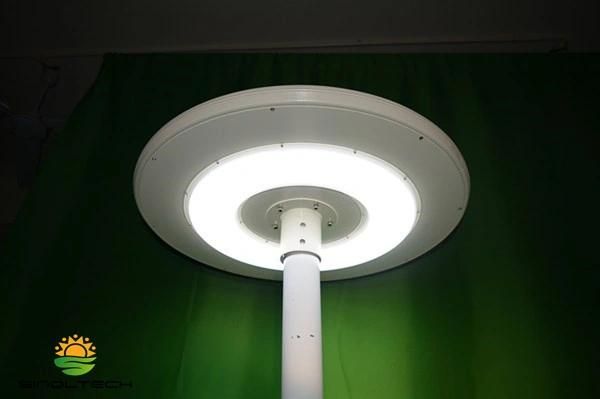

----Round shape solar street light:



----Product display:
