• Model NO.：QJ315ADLA
• Separated：Separated
• Ball Bearing：Turbocharger Angular Contact Ball Bearing
• Outer Diameter：160mm
• Load Rating：P4,P2,P5
• Sealing Type：Sealed or Not
• Inner Diameter：75mm
• Breadth：37mm
• Loading Rating：Cr:191.0kn Cor:195.0kn
• Limiting Speed：12000r,Min
• Weight：3.96kg
• Transport Package：Cases and Pallets or as Customer′s Requirment
• Specification：high quality
• Trademark：ZYS
• Origin：Luoyang, Henan, China
• Production Capacity：40000,Month

Basic Info.

Model NO. QJ315ADLA Separated Separated Ball Bearing Turbocharger Angular Contact Ball Bearing Outer Diameter 160mm Load Rating P4/P2/P5 Sealing Type Sealed or Not Inner Diameter 75mm Breadth 37mm Loading Rating Cr:191.0kn Cor:195.0kn Limiting Speed 12000r/Min Weight 3.96kg Transport Package Cases and Pallets or as Customer′s Requirment Specification high quality Trademark ZYS Origin Luoyang, Henan, China Production Capacity 40000/Month

Product Description

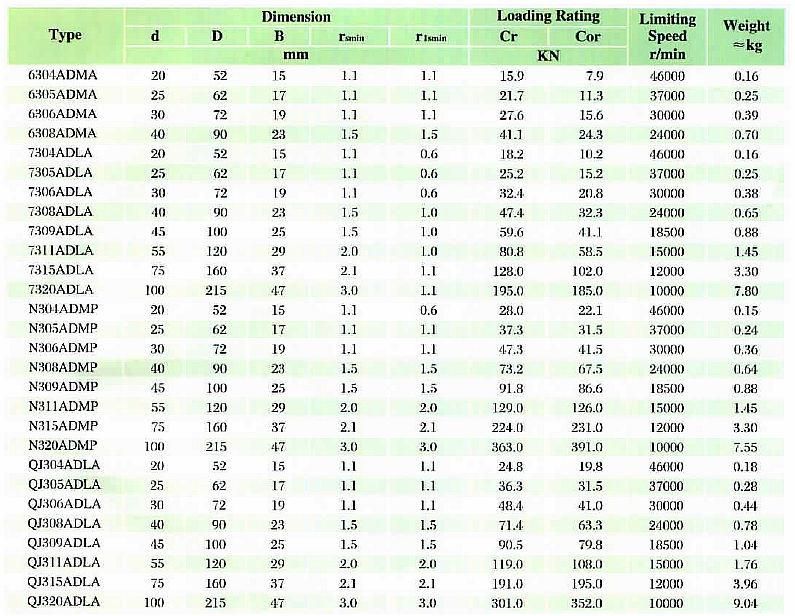

Dimension of turbocharger bearing

    The turbocharger bearings that ZYS developed refer to deep groove ball bearings, cylindrical roller bearings, angular contact ball bearings and four-point contact ball bearings. Angular contact ball bearings are used in pairs or matched with four-point contact ball bearings.

     Deep groove ball bearings and cylindrical roller bearings mainly support radial load, the angular contact ball bearings used in pair and angular contact ball bearings matched with four-point contact ball bearings can support radial and axial combined loads. ZYS turbocharger bearings have such features as high limiting speed, large carrying capacity and long service life.

      For the turbocharger bearings with higher speed and greater load, its cage material is alloy steel with special treatment on its surface.

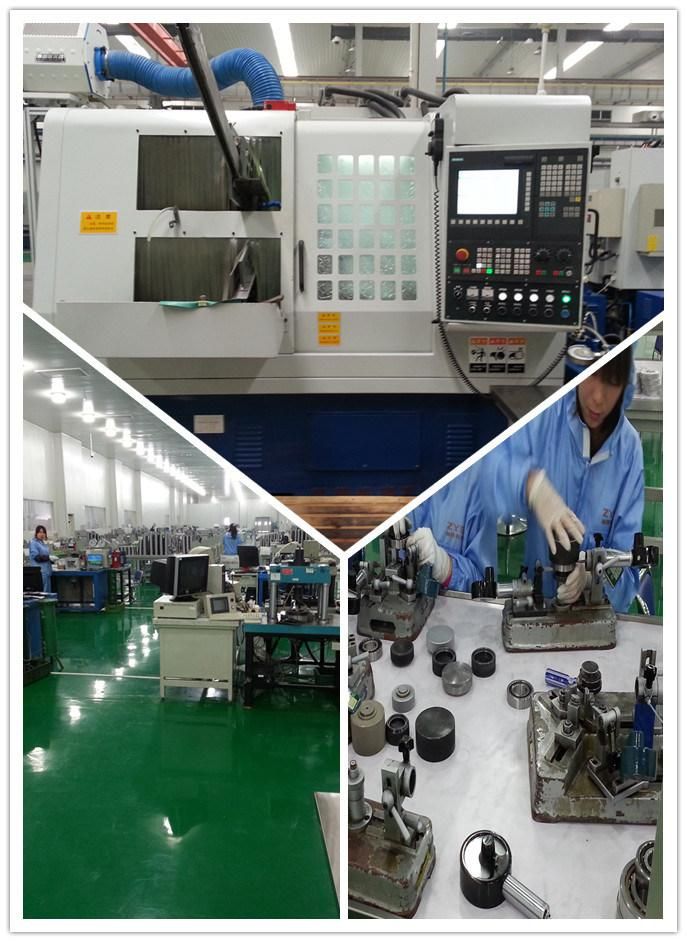

Bearing workshop

Packaging



ZYS Luoyang Bearing Science And Technology Co.,ltd.

ZYS Tenet: To lead the science and technology development of bearing industry and to improve the world'sequipment level.ZYS Spirit: To keep continuous improvement, to pursue brilliance.ZYS Core values: Integrity, rigor, innovation, mutual benefit.      ZYS was formerly known as Luoyang bearing research institute, which was founded in 1958 and was the only first-class comprehensive research institute in China bearing industry. As it became one member of China National Machinery Industry Corporation in 1999, the former institute was transformed into the science and technology enterprise. Then Luoyang Bearing Science & Technology Co., Ltd. was established in 2001. It was listed at Shenzhen Stock Exchange with stock code 002046 in 2005.ZYS Advantage      ZYS has a strong strength of manufacturing high-precision and high-reliability bearings and relevant parts. ZYS company not only possesses advanced bearing manufacturing equipments and international first-class measuring instruments,but also has strong strength of manufacturing,inspecting and testing the high-precision and high-reliability bearings and relevant spare parts.In the meantime,it always keeps a leading position in bearing basic theory,lubrication technology,design,material,test,information criterion and other aspects.Glory

Top 200 most promising companies of China in Forbes

Top 500 in China Machinery Industry

Excellent Enterprise with China Well-know Trademark

High-performance Bearings Laboratory

State Quality Supervision and Testing Center for Bearing

ISO/TC4 China Secretariat

The Research Center for High-speed Precision Bearing Engineering in Machinery Industry

                                                              ... ...



    We would like to and ready to do business with any company from all over the world.If any of ZYS products interests you or if you have interests in ZYS company,please don't hesitate to contact with us,we would like to give you ZYS best quality service any day any time !



Contact us

Address: No.1 Jilin Road, Luoyang City, Henan, Province, China.

Zip Code:471039

OTHER HOT SALE PRODUCTS

High precision angular contact ball bearing                   Precision spindle bearing

Hybrid ceramic bearing                                                       Slewing bearing

Cylindrical roller bearing                                                      Needle roller bearing

Taper roller bearing                                                              Precision lathe bearing

Bearing measuring instrument                                          YRT rotary table bearing

High-frequency spindles                                                     Dental drill bearing

Bearing ball                                                                           Bearing making machine

etc.

Material:   GCr15,9Cr18,G20CrMo or others

Certificate:  GB/T19001-2000(ISO9001:2000),  GJB/Z9001A-2001,  GJB9001A-2001
