High Quality Slewing Bearing Slewing Motor for Spraying Equipment
Showtime Packing Co., Ltd- Feature：Corrosion-Resistant
- Material：42CrMo
- Type：Internal Gear
- Holding Torque：10400n.M
- Tilting Moment Torque：13500n.M
- Output Torque：1013n.M
Base Info
- Model NO.：SC7-71-RC-230V
- Output Speed：0.39rpm
- Gear Ratio：71:1
- IP Class：IP65
- Static Axial Load：133kn.M
- Static Radial Laod：53 Kn.M
- Precision：0.15
- Mechanical Efficiency：40%
- Specification：SC7-71-RC-230V
- Trademark：Coresun Drive
- Origin：Changzhou
- HS Code：8483409000
- Production Capacity：3000PCS,Month
Description
Model
SC7
Place of Origin
Changzhou,China
Brand
Coresun Drive
Delivery Time
7 days
Material
42CrMo,50Mn
Output Torque
1.03kN.m
Tilting Moment Torque
13.5kN.m
Holding Torque
10.4kN.m
Static Axial Rating
133KN
Static Radial Rating
53KN
Dynamic Axial Rating
32KN
Dynamic Radial Rating
28 KN
Gear Ratio
71:1
Efficiency
40%
Three Phase Motor
Yes
HS Code
8483409000
Coresun Slewing Drive Introduction
1.Coresun Drive promises to offer the most accurate data by experiment for ensuing the technical parameters meet requirements
2.From the customer's perspective, providing the cost-effective production
3.Coresun design and make various special and non-standard as customers' requirement
4.The key to teamwork is respect for each other. Common development with our customers

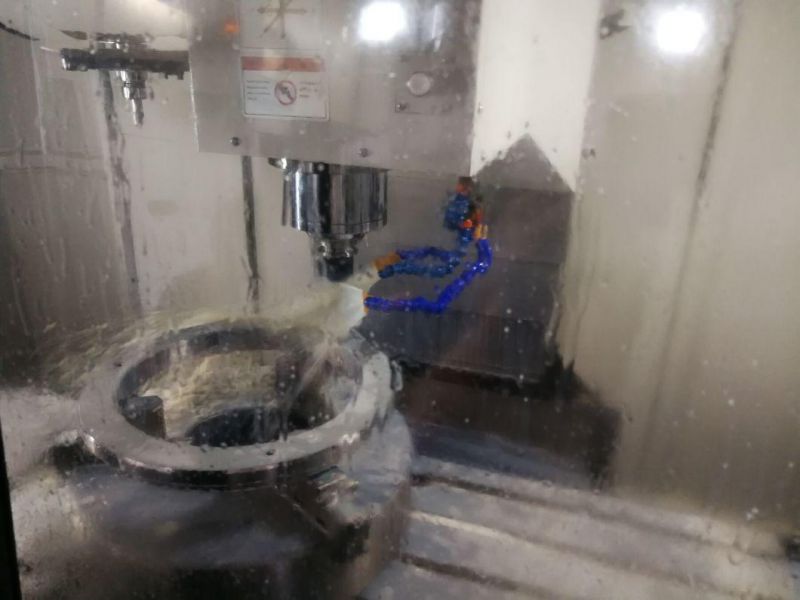

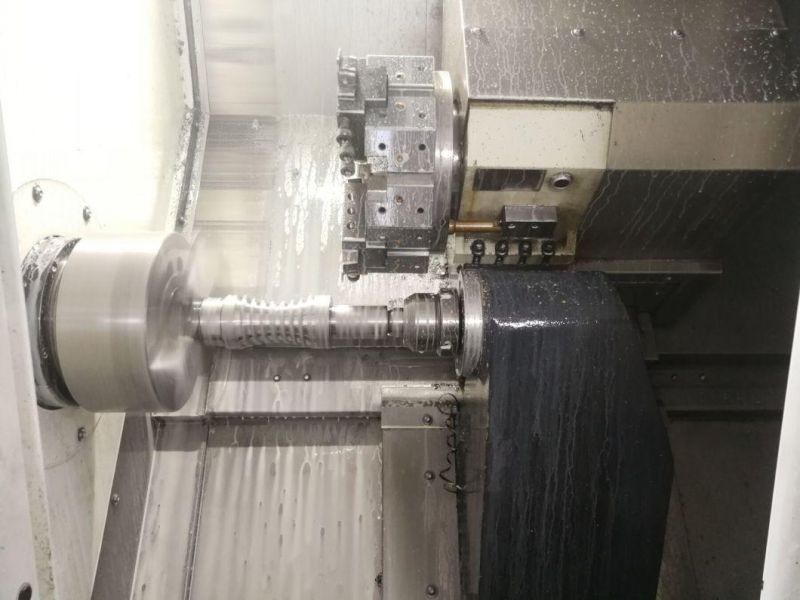

Coresun Drive slewing drive SC7 worm shaft,casting housing and slewing bearing machining
