IP65 P5.95 Outdoor Billboard LED Display with 100cmx100cm Panel

Yiwu Yangchuan E-Commerce Co., Ltd.
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：5.95 mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display, Image & Text Display, Text Display, Market Display
  • Average Power Consumption：350W , m²

Base Info

  • Model NO.：P5.95
  • Pixel Density：28246 Px,M2
  • Display Type：LED Video Display
  • Application：Advertising
  • Certification：CE, RoHS, UL, CCC, ETL
  • LED Type：SMD 1921,1921
  • Brightness：5500 Nits
  • Refresh Rate：1920 Hz
  • Contrast Ratio：4000:1
  • Cabinet Material：Die Casting Aluminum
  • Cabinet Weight：55kg
  • Processing：16 Bits
  • Colours：281 Trillion
  • Viewing Angle：160°,140°
  • Servicing：Front
  • Transport Package：Wooden Crate,Flight Case
  • Specification：100x100cm
  • Trademark：Bako Vision
  • Origin：China
  • HS Code：8528591090
  • Production Capacity：10, 000m2,Month

Description

 BOF-F-5Physical Pitch5.95 mmPixel ConfigurationSMD 2727Pixel Density28,246 pixels/m²Module Dimensions (W × H) (mm)250 × 250Panel Dimensions (mm)500 × 1000 ×  150NO .of Modules Per Panel (W × H)2 × 4Physical Resolution of Module (W × H)52 × 52Physical Resolution of Panel (W × H)84 × 168Panel MaterialSteel / AluminumWeight(m²)65/45Processing16 bitColours281 trillionContrast Ratio2,000 : 1Average Power Consumption36 W/m²Max Power Consumption900 W/ m²

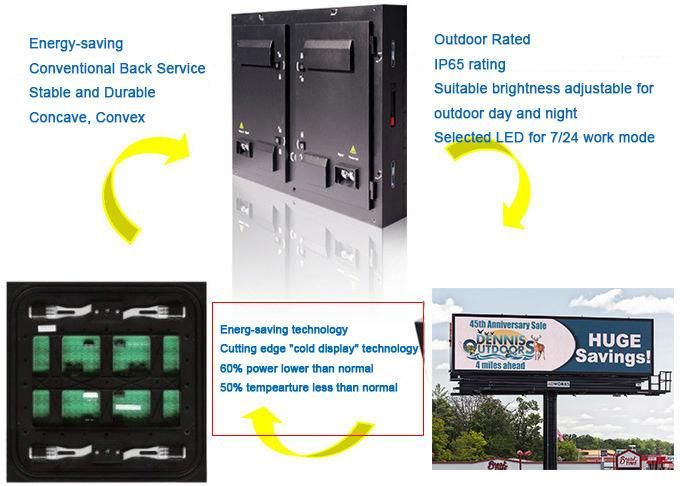

P5.95 Outdoor Billboard Led Display Features

1  Using ultra-high brightness LED lamp and high-quality accessories,light uniformity, low power consumption

2  Classic module design, superior and stability product performance.

3  High-contrast of 4000:1 as well as refresh rate of 1920 hz can achieve a good display.

4  Light weight,easy to set up and tear down.

5  High brightness adjustable according to environment changes

6  It can be single-point, single lamp maintenance, low cost.

7  A wide viewing angle of 160° ensure that the clear  image from every.

8  You can set several different display areas to achieve different visual display effects.Rich display types create various display effects.

IP65 P5.95 Outdoor Billboard LED Display with 100cmx100cm Panel

IP65 P5.95 Outdoor Billboard LED Display with 100cmx100cm Panel
IP65 P5.95 Outdoor Billboard LED Display with 100cmx100cm Panel

Services

*  We can offer customization service for customized products and can provide onsite installation and testing service.

* We provide 2 years warranty and free repair service for our products sold.

*  We also provide free training to customers' engineer.

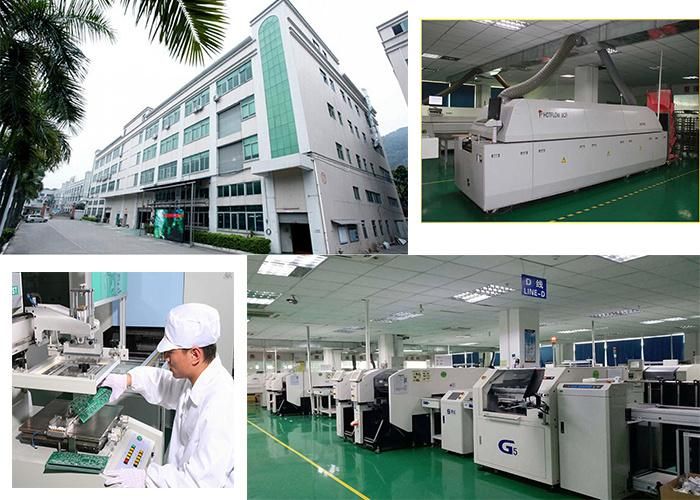

* From raw materials to every process, we have strict production and testing process to ensure that our products under the quality inspection system standards.

* At the same time, we have an aging testing of 72 hours as well as waterproof test of outdoor led display to ensure the high quality of the product.

Company Info:


IP65 P5.95 Outdoor Billboard LED Display with 100cmx100cm Panel
IP65 P5.95 Outdoor Billboard LED Display with 100cmx100cm Panel



Tips

*  Payment: We accept the L/C, T/T, Western Union.

* Shipment: We will ship within 30 working days after you placed the order, but the specific delivered time will be affected by the shipping company and shipping details.

* Package: We usually pack the product in a wooden box or flight case
