• Model NO.：P3.91
• Display Type：LED Video Display
• Certification：CE, RoHS, CCC
• Module Size：250mm X 250mm

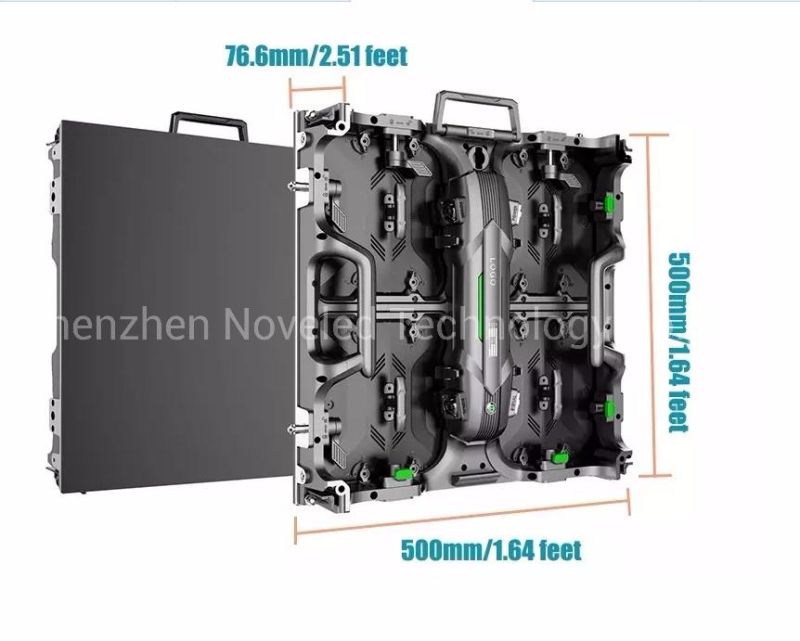

• Cabinet Size：500mm X 500mm
• Cabinet Material：Die Casting Aluminium
• Cabinet Weight：8 Kg. Cabinet
• Maintaince：Front Service and Back Service
• Transport Package：Wooden Case , Flight Case
• Specification：CE, RHOS
• Trademark：Noveled
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：1000 Sqm , Week

Outdoor rental led display 500 x 500 serialPixel Pitch3.9mm 4.8mm5.95mm6.25mmPixel density(dot/m2)65400  432642822425600Brightness  (nits)≥5500  ≥5500≥6000≥6000  Drive Method1/16 1/131/10  1/10 Refresh rate (HZ)  ≥1200Cabinet pixel (dot) 128x128 104x10484x84 80x80Cabinet size (mm) 500x500x75Cabinet materialDie-casting Aluminium Cabinet weight8kg/cabinet Screen work Voltage (V) 110~240V/AC Screen power consumption
(W/sqm )Max 750 / Average250Max 800 / Average350 Max 800 / Average 320Max 800 / Average 320  Screen View angle 140°/140°     IP Grade  IP65    Operationg Temperature/Humidity -20~50ºC
 10~90% RH      Storage Temperature/Humidity -40~60ºC
 10~90% RH          Life Time  >50000H      Standard
CertificationCE CCC


 Rental  led  display  Advantages and feature
 Stable performance, wide applicability, high brightness, high protection grade.
1.High temperature resistant and aging resistant PC materials are applied in the modules to get rid of the mosaic problem even after long time use.
2.High brightness enables longer viewing distance and ensures the spectators far from the screen can still enjoy what is shown, even under direct sunlight.
3.The cabinets, featuring great moisture and corrosion proofing, enable themselves to work in all weather conditions.

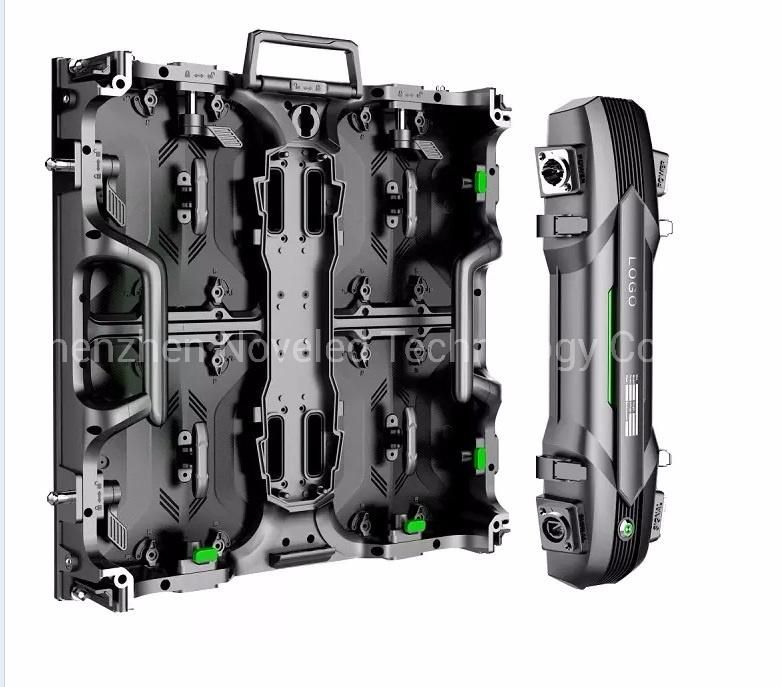

HUB Board Connection

* Without wires connection, signal and power can transfer more stable and reliable.
* HUB board connect modules and power supplies directly instead of wires.
* Directly take out back cover, easy to change within 5 seconds.

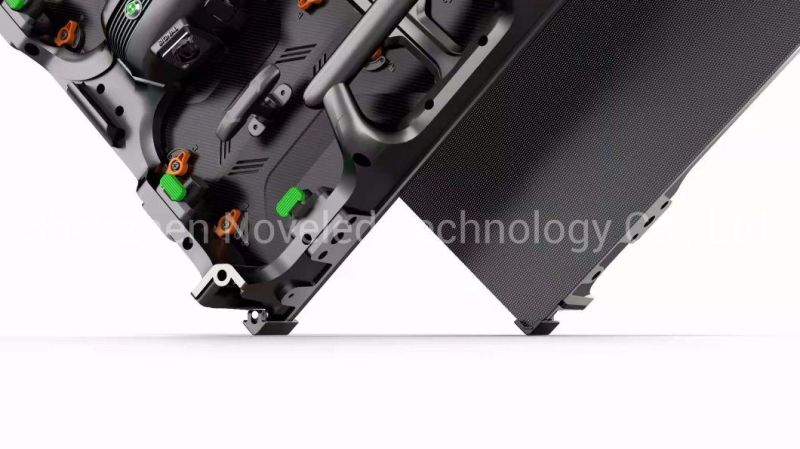

Protective angle design

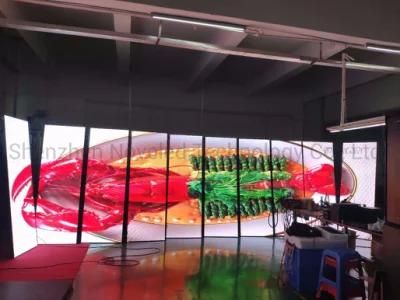

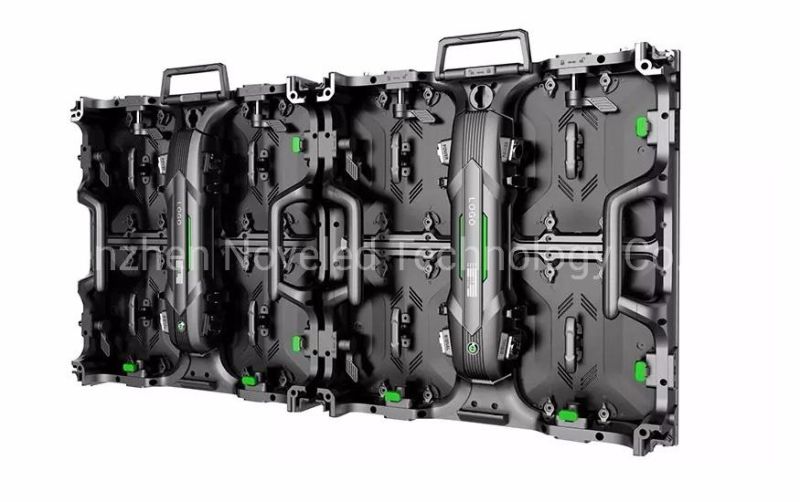

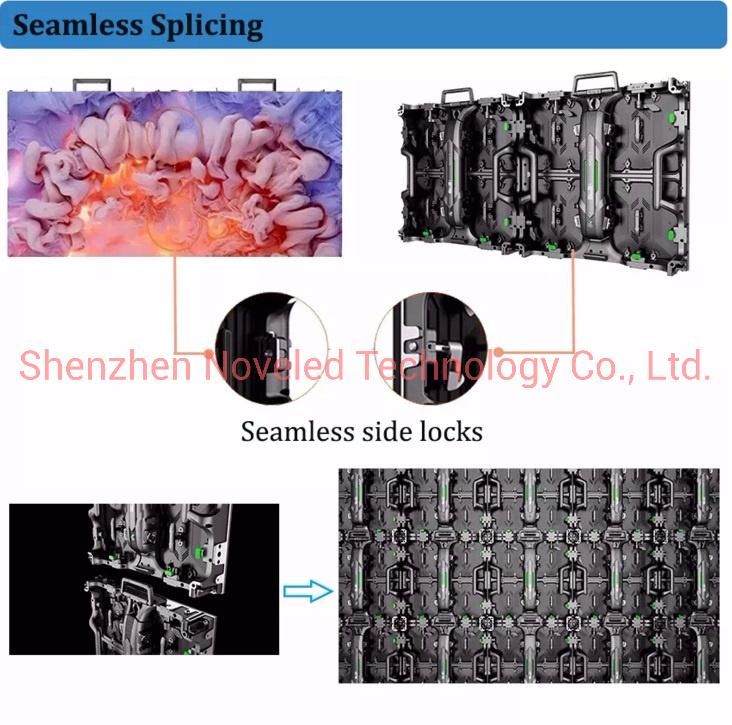

LED Display Seamless Splicing
* Slim and light weight,quick disassembly.
* Weight: 7.5kg/cabinet,one person can carry,saving time and effort.
* High degree of protection,high durability.
* Common good,flexible and easy to use.



Rental  LED Display  Applications
Commercial advertising:Square, Road side, High way, Airport, Wharf, Hotel, Restaurant etc.

Live broadcast:Gym, Stadium, Concert, Sport Match, Competition, Gov publication etc.

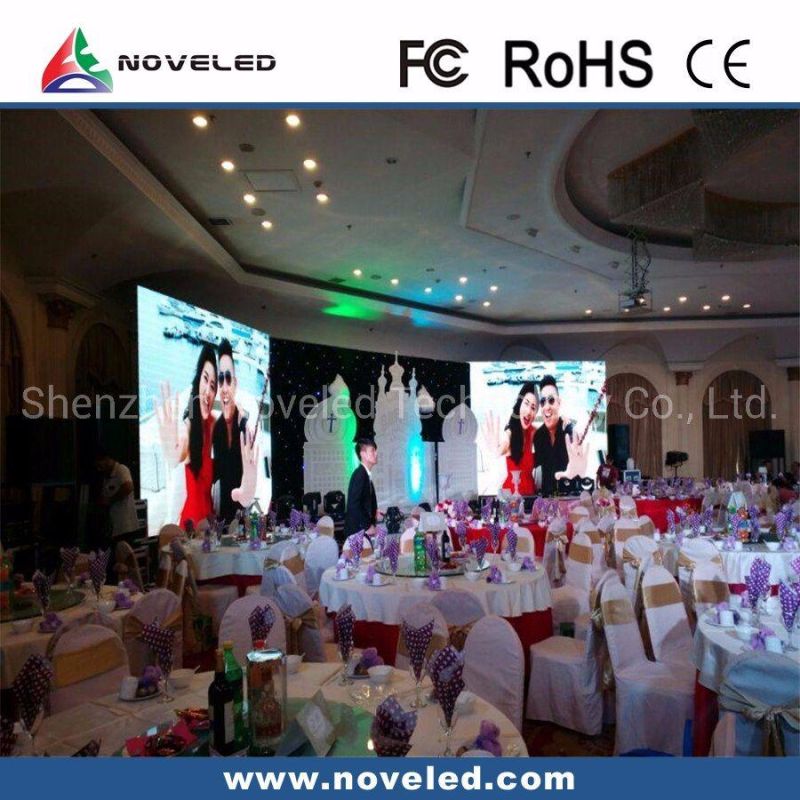

Rental business:Entertainment, Wedding, Party etc.

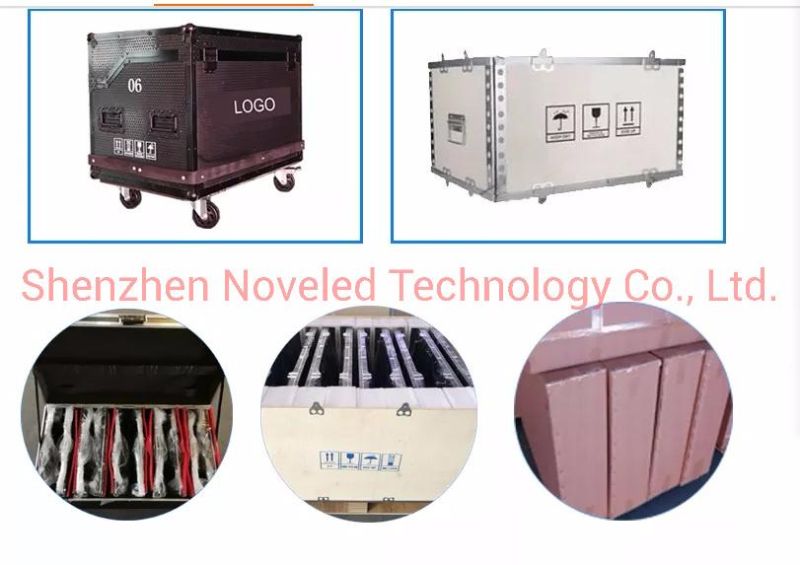

 Packing detail view






Other high recommend product

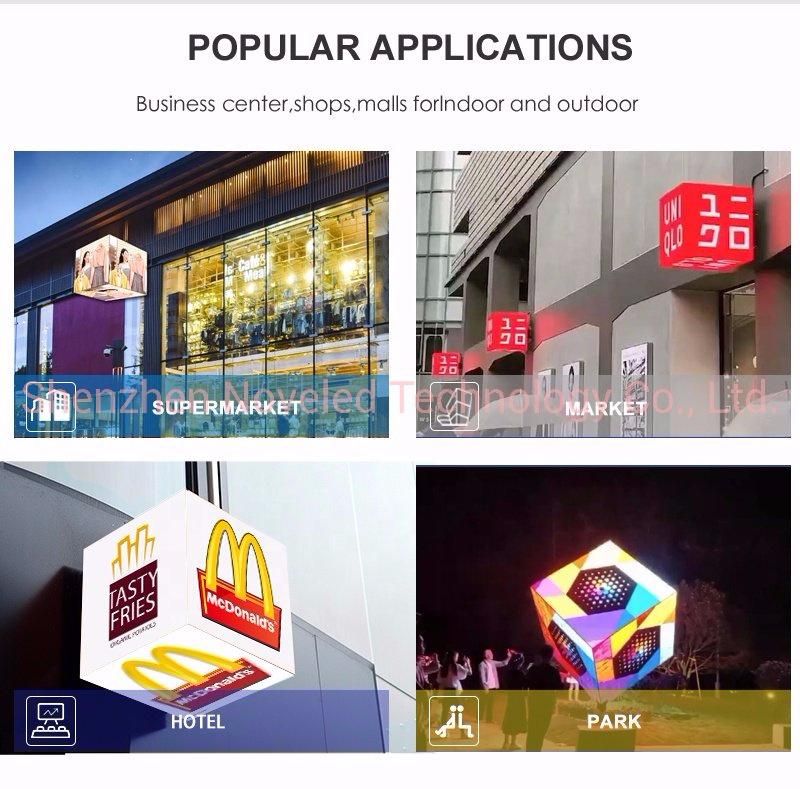

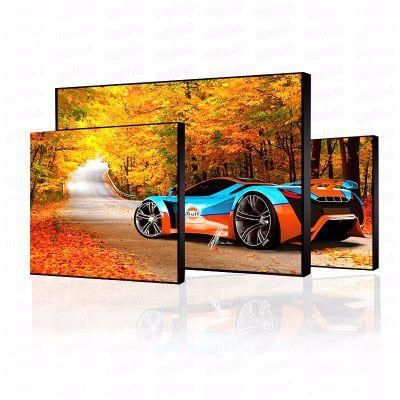

Cube led display in the shopping mall

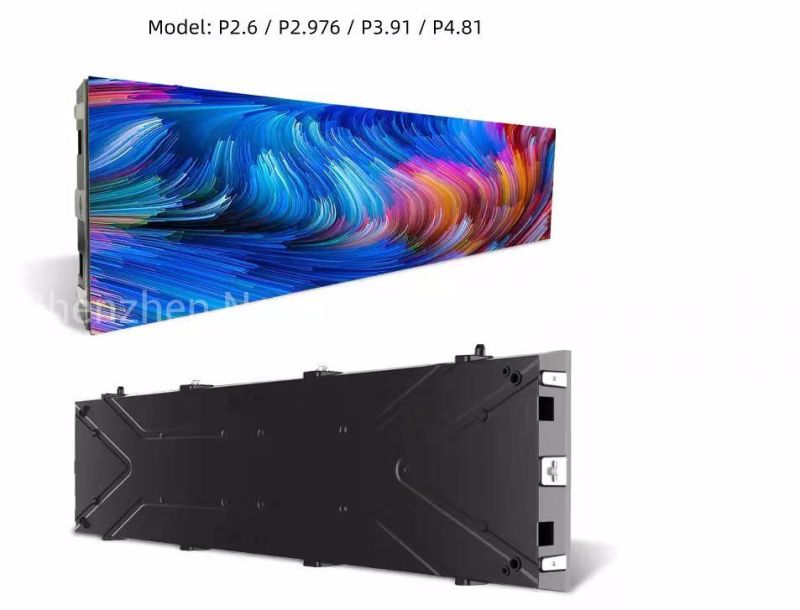

 HD small pixle 500x 1000mm die cast alumium led display

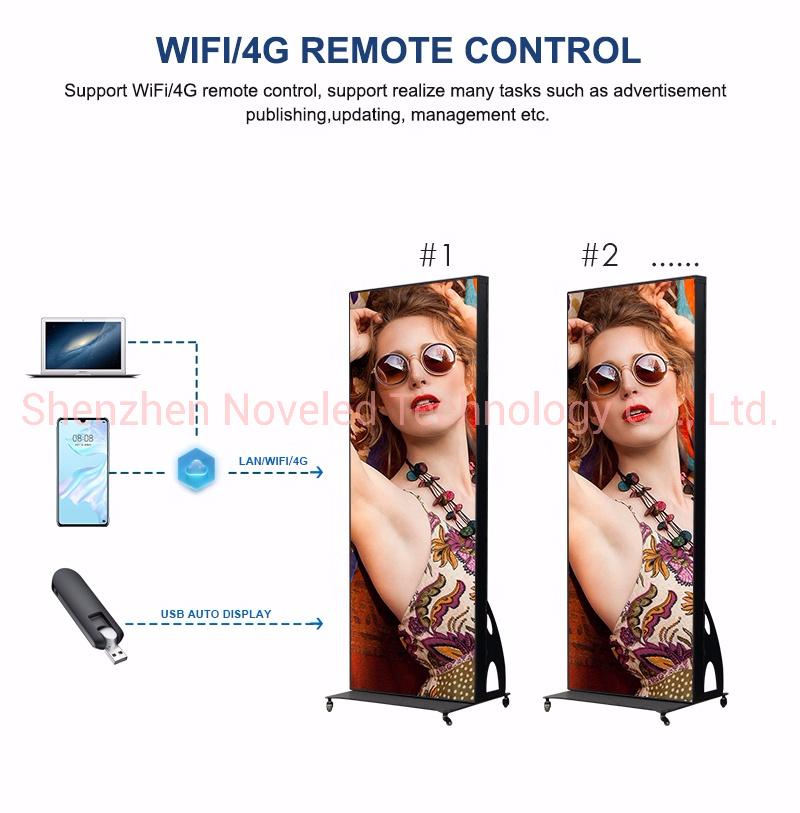

Poster led display





Led Display Service for customers

1.We provide pre-sale service in technical consultation, for example, recommending and designing solutions as pre the customers request, which help lower the risk of customers` investing.

2.In the process of production, gloshine follows up the tightly and accept the supervision from the clients.Necessary trainings are also provided to the customers.

3.For the after-sale service,Noveled  takes the great responsibility to collect customers` feedback, inspection and maintains products periodically to ensure solving problems timely
