• Model NO.：KA090XP0
• Company History：Since 1993
• Brand：Import Replaced
• Cage：Brass Cage
• Operating Temperatures：-30 to +120
• Custom Design：Available
• Bore Diameter：9inch
• Outside Diameter：9.5inch
• Height：0.25inch
• Delivery Time：30days
• Transport Package：Wooden Box
• Specification：ISO2001: 9008
• Trademark：LYHY
• Origin：China
• HS Code：8482103000
• Production Capacity：100000PCS Per Year

Basic Info.

Model NO. KA090XP0 Company History Since 1993 Brand Import Replaced Cage Brass Cage Operating Temperatures -30 to +120 Custom Design Available Bore Diameter 9inch Outside Diameter 9.5inch Height 0.25inch Delivery Time 30days Transport Package Wooden Box Specification ISO2001: 9008 Trademark LYHY Origin China HS Code 8482103000 Production Capacity 100000PCS Per Year

Product Description

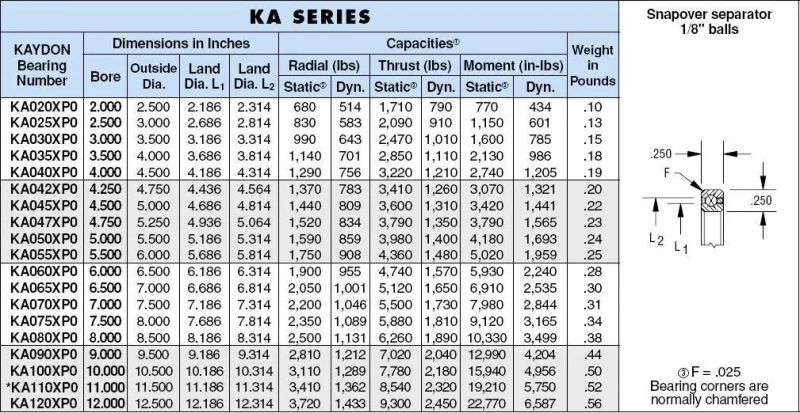

Detailes for KA090XP0 four point contact ball thin section bearing, medical machinery equipment
Dimension: 9*9.5*0.25inch
Cage: Brass cage
Operating tempreture: -54 to +120
Application: Industrial robot


Introduction to Kaydon thin section bearing

LYHY bearings are a professional manufacturer of substitution of imported brand thin section bearing, slim ball bearing, precison bearing, which includes seven open series and five sealed series, inner hole diameter of these slim ball bearings range from 1 to 40 inches, cross-sectional dimension is from 0.1875X0.1875 to 1.000X1.000. These ball bearings have an extremely small, predominantly square cross-section, within each series, the cross-section remains constant even for larger shaft diameters and housing bores. Except the standard models, we can also design and manufacture as per customers' requirements. With rich experience and a large collection of products, we have confidence we are able to meet customers' requirements.

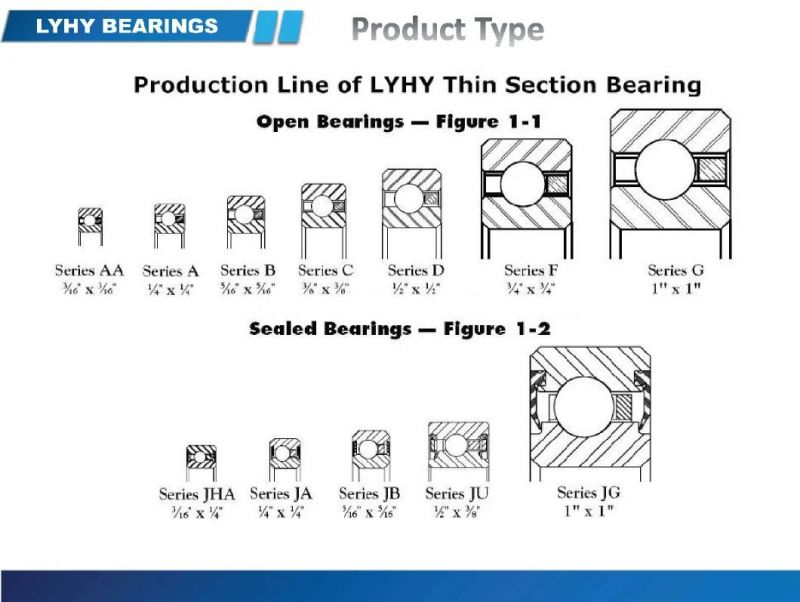

Structure
Open type deep groove ball bearing
Open type angular contact bearing
Open type four point contact bearing
Sealed type deep groove ball bearing
Sealed four point contact ball bearing

Features
Thin section bearings have high precision, and very quiet and have high load carrying capacity, features of thin section bearings can be summarized as following
Excellent running accuracy
Spaces save
Low friction
High precision
Long life
Low noise and vibration
Why choose LYHY thin section bearings
A pioneer in import replaced thin bearing field, rich experience, can do design, produce, mounting guide
Small order accepted
ISO certified company
Variorum models
7*24hours hotline to help you with your cranes
Strict quality control system to ensure quality for slim ball bearing

Application
Thin section ball bearings were developed for applications where space limitations are of the utmost importance. These kind of bearings are widely used for aviation, astronomical instruments, glass manufacturing machinery, medical instrument, optical and scanning instrument, satellite communication devices, textile machinery, large welding equipment, robot, semiconductor manufacturing equipment etc. Print machinery

LYHY Thin Section Bearing Packing
Bearing surface is covered with the anti-rust oil first; and then wrapped with the plastic film;
And then packed with kraft paper and professional belts;
At last, with wooden box totally at the outer packing to invoid the rust or the moist;
We can depend on the customers demand to be packed;


Transportation:
All LYHY bearings can be usually delivered timely, usual production time is 15-50 days based on different diameters, sometimes will be in stock.

Thin Section Bearings can be transported by different transport ways, by express (such as DHL, TNT, UPS, FEDEX and so on), by air, by sea, by truck, by railway and so on.


FAQ:

Q: Are LYHY BEARINGS trading company or manufacturer?
A: LYHY BEARINGS is a professional manufacturer for slewing bearings, thin section bearings, ball bearings and rolling bearings

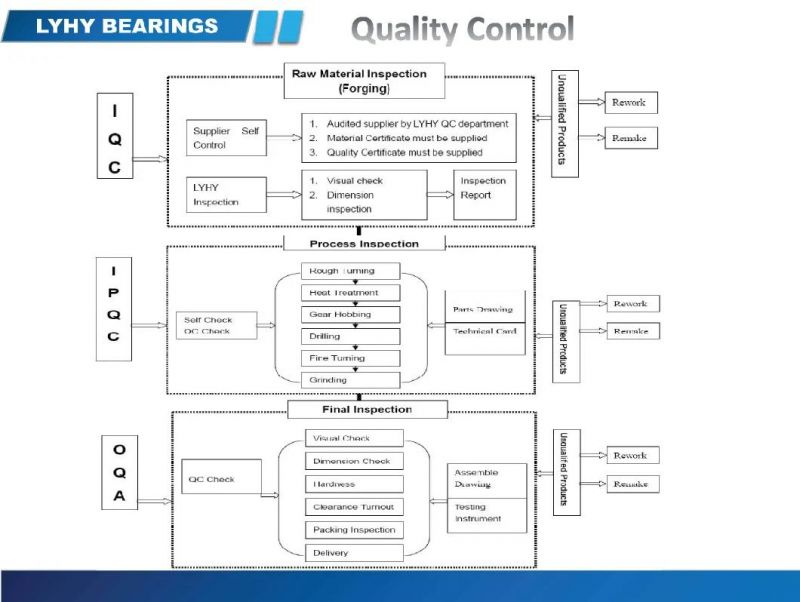

Q: How do LYHY BEARINGS control quality of their bearing?
A: LYHY BEARINGS has established strict quality control systems, all the products and services has passed ISO9001-2008 Quality Certificate and third party such as CCS, LR,ABS,BV


Q: What is the MOQ?
A: MOQ is 1pc, pls message us for detailed information.

Q: How about the package for LYHY bearings?
A: Standard Industrial packing in general condition (Plastic tube+ professional plastic belts+ plywood case). Accept design package when OEM.

Q: How long is the production time?
A: It takes about 7-40 days, depends on the model and quantity.

Q: How about the shipping?
A: We can arrange the shipment or you may have your own forwarder.

Q: Is sample available?
A: Yes, sample order is acceptable.

Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable for LYHY BEARINGS. We can design as per your requirements and use your own LOGO and package design.
