• Model NO.：P6.66mm
• Certification：CE, RoHS, UL, CCC, ETL
• Refresh Rate：1920~3840Hz
• Brightness：6000nits
• Screen Resolution：22545dots,Sqm
• Transport Package：Flight Case
• Specification：320*160mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. P6.66mm Certification CE, RoHS, UL, CCC, ETL Refresh Rate 1920~3840Hz Brightness 6000nits Screen Resolution 22545dots/Sqm Transport Package Flight Case Specification 320*160mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

PRODUCT FEATURES:
1.High waterproof grade design:IP65

2.Fast lock design:save labor cost and time

3.Die-casting aluminum design:easy for transportation and installation

4.Seamless assembly:stainless steel locks achioeve micro-adjustment to make seamless screens

5.High grey and high refresh rate:achieve good visual effects


PRODUCT PARAMATERS:


NO.	Parameters	Specifications
1	Model	RO6.66
2	Pixel Pitch(mm)	6.66
3	LED	SMD3535
4	Screen Resolution	22545dots/sqm
5	Scan Method	1/6
6	Module size(mm)	320x160
7	Cabinet size(L*H*W mm)	640x640x88 /960x960x88
8	Cabinet(Kg)	12
9	Viewing angle	H:140°/  V:140°
10	Grey Scale	14bit
11	Refresh rate(HZ)	1920~3840HZ
12	Brightness(nits)	≥6000
13	Working Voltage(V)	AC 100~240V
14	AVE. power consumption (W/m2)	200
15	MAX. power consumption(W/m2)	600
16	IP grade	F:IP65 / R:IP54
17	Working humidity	10~95%RH
18	Storage humidity	10~95%RH
19	Working temperature	-30ºC~60ºC
20	certificates	CCC,FCC,CE,RoHS

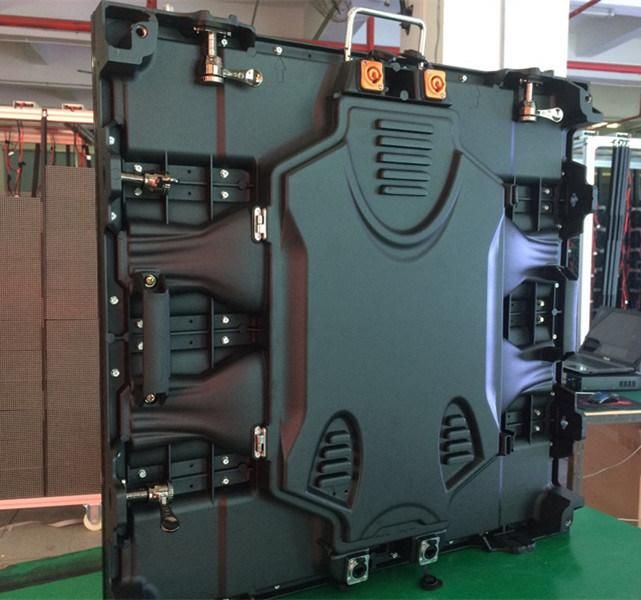

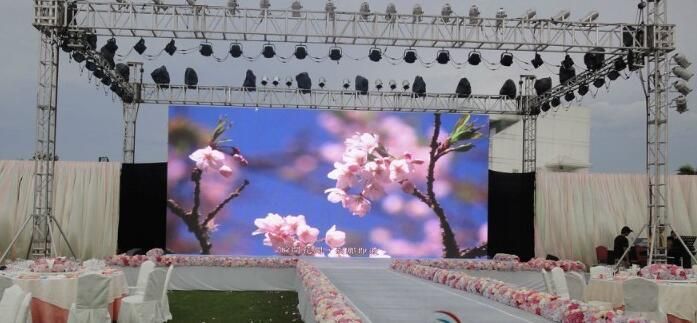

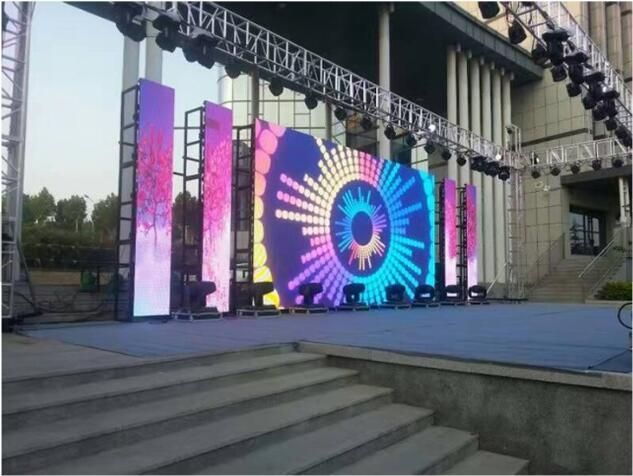

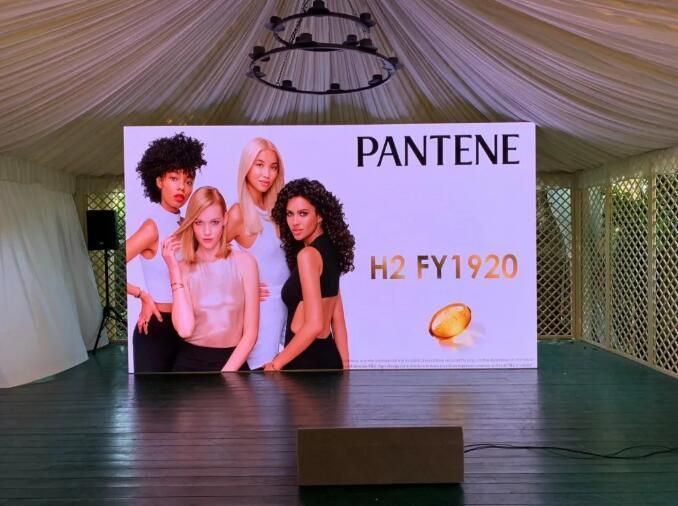

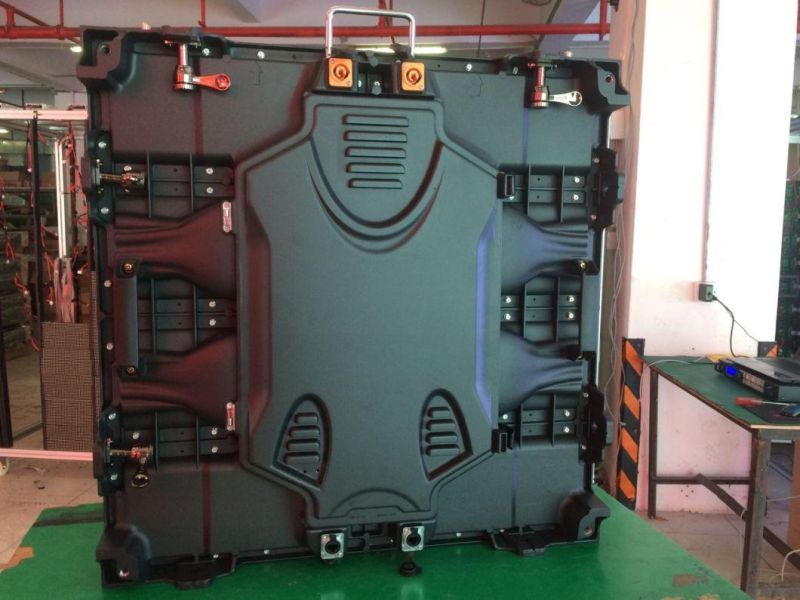

PRODUCT PHOTOS:

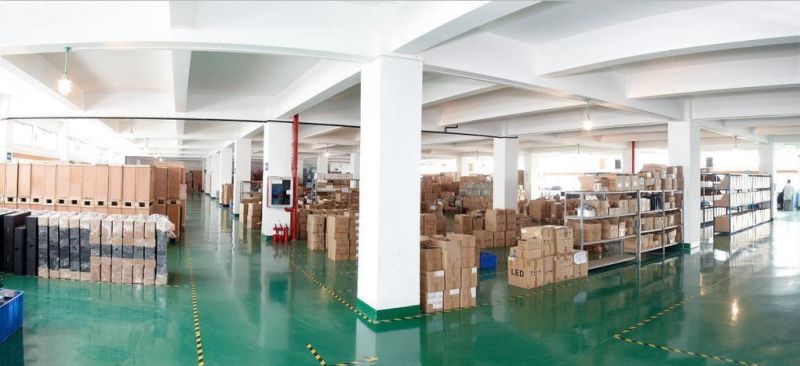

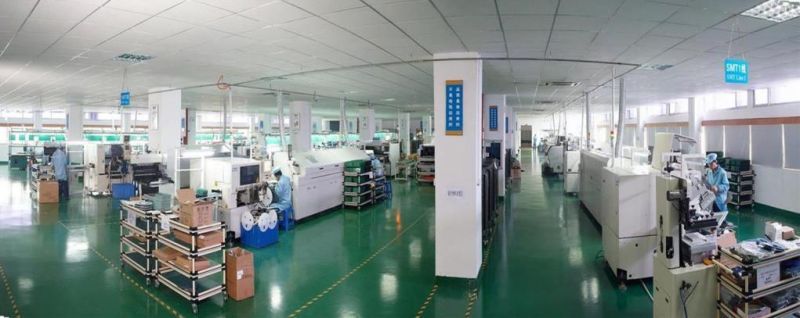

WORKSHOP:

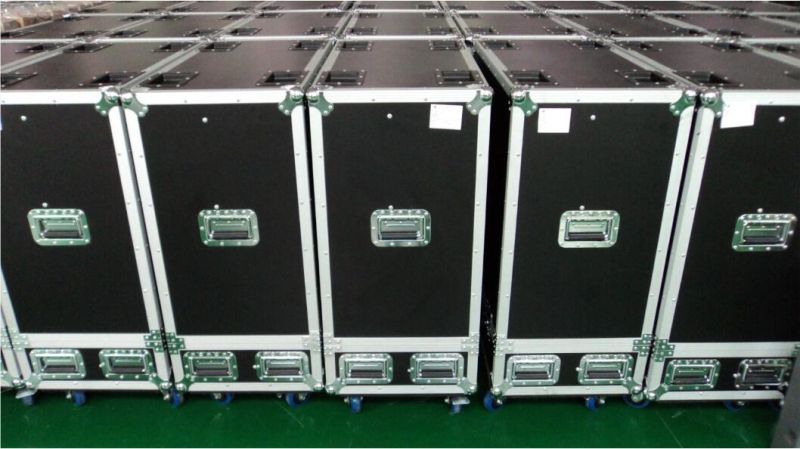

PACKAGE:



CULTURE:




CERTIFICATES:



OUR SERVICE:

1. Your inquiry related to our products or price will be replied in 24hrs

2. The size can be change as you give.

3. What we show is some of our current models, welcome to give us your own ideas.

4. Protection of your sales area, ideas of design and all your private information

5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win )
