Mechanical Transmission Machine L Type Rubber Timing Belt

Jinan United Perfect Building Materials Corporation
  • Standard or Nonstandard：Standard
  • Application：Textile Machinery, Conveyer Equipment, Food Machinery, Agricultural Machinery
  • Feature：Anti-Static, Oil-Resistant, Cold-Resistant, Heat-Resistant, Wear-Resistant, High Temperature-Resistance
  • Tensile Strength：Strong
  • Material：Rubber
  • Type：V Belt

Base Info

  • Model NO.：13X2200
  • Quality：Cr,EPDM
  • Printing：Brand Customized
  • MOQ：100PCS
  • Delivery Time：15-30 Days
  • Transport Package：Packing Card+Carton
  • Specification：13X1725
  • Trademark：VOLKED
  • Origin：China
  • HS Code：40103900
  • Production Capacity：500000

Description

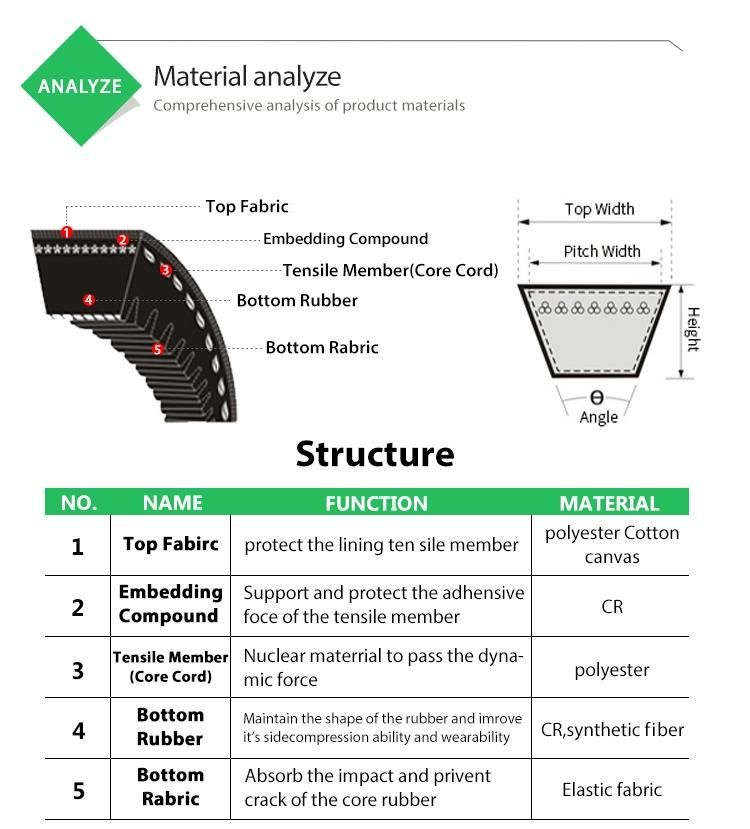

StructureNo.NameFunctionMaterial1Top FabricProtect the lining tensile memberPolyester Cotton Canvas2Core CordNuclear material to pass the dynamic forcePolyester3Bottom RubberSide compression resistant and sectionCR,EPDM4Bottom FabricAbsorb the impact and prevent crack of the core rubberElastic FabricSection Size of lndustrial Raw Edge V BeltsTypeTop width (mm)Belt Thickness (mm)Angle(°)HM10.58.038AX138.038BX171138CX221438DX321938EX382338 Section Size of Raw Edge Narrow BeltsTypeTop widthBelt ThicknessAngleXPZ9.78.040XPA12.71040XPB16.31340XPC2218409NX9.584015NX1613.54025NX25.42340 Section Size of Raw Edge V Belts for AutomobileTypeTop widthWrapped V beltRaw edge V beltREFRECAngleAV-10/9.510.08.07.57.58.040AV-13/12.513.010.08.58.59.040AV-1515.09.0---40AV-1716.510.59.59.511.040AV-2222.014.0--13.040
