• Model NO.：XR-5

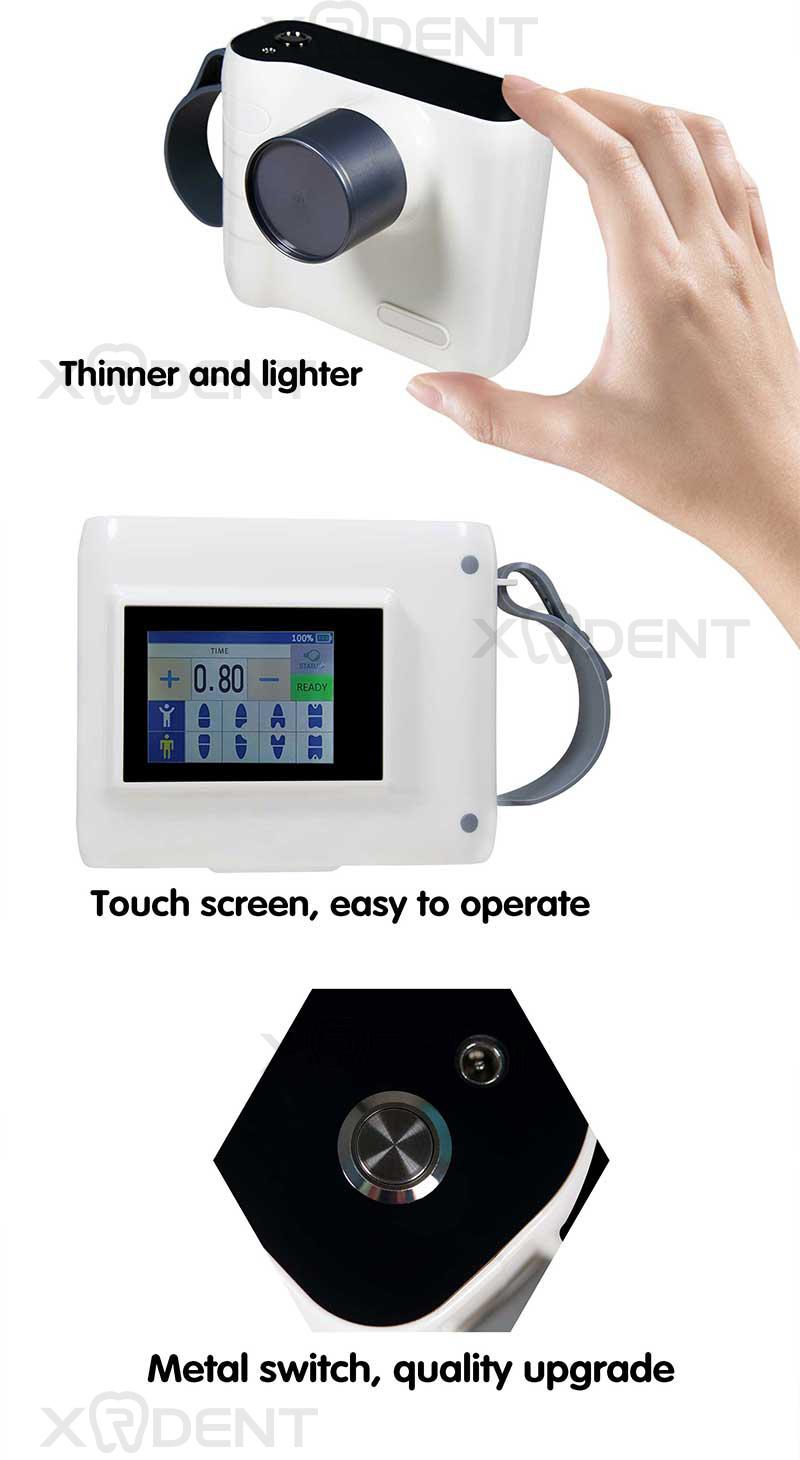

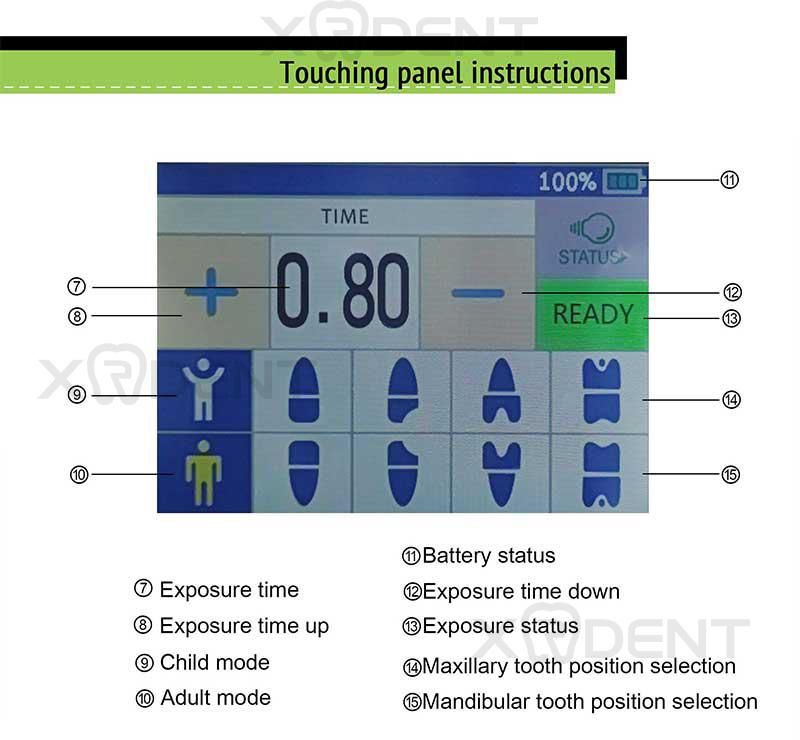

• Display Mode：LCD Touch Screen
• Transport Package：Strong Foam, Plastic, Carton
• Specification：Package weight: 5Kg
• Trademark：Xrdent
• Origin：China
• HS Code：90184990
• Production Capacity：1000

Basic Info.

Model NO. XR-5 Display Mode LCD Touch Screen Transport Package Strong Foam, Plastic, Carton Specification Package weight: 5Kg Trademark Xrdent Origin China HS Code 90184990 Production Capacity 1000

Product Description

Technical Data

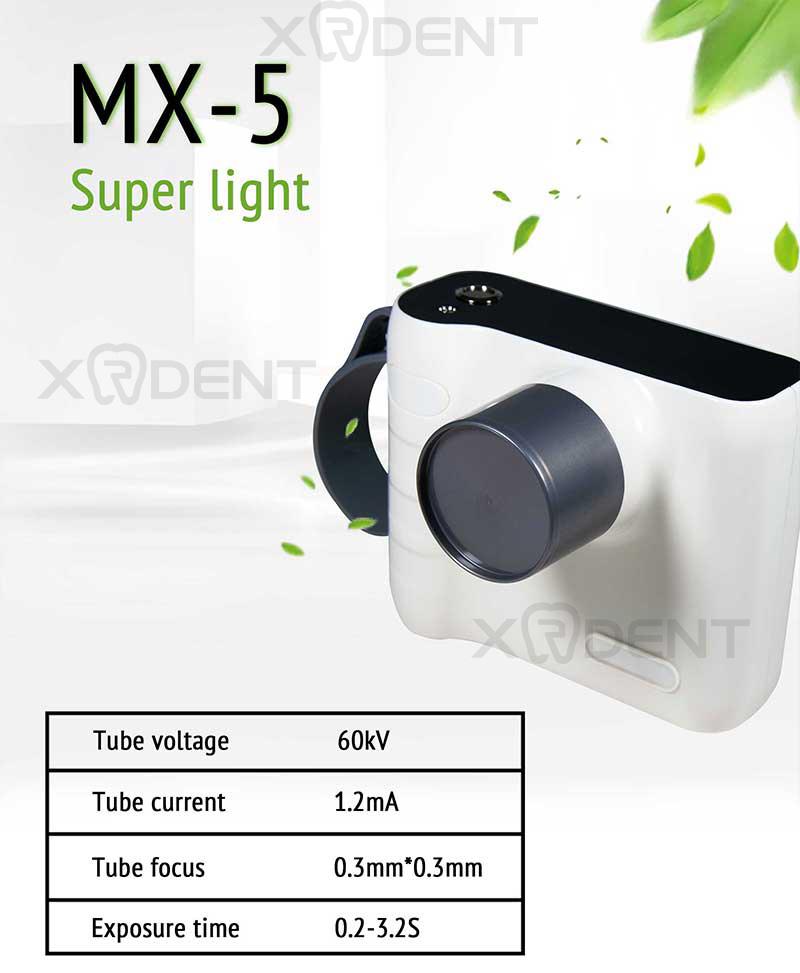

Tube Voltage	60KV
Tube Current	1.2mA
Exposure Time	0.2-3.2s
Frequency	30KHz
Rated Power	60VA
Focal Spot To Skin Distance	100mm
Tube Focus	0.3mm*0.3mm
Battery	DC16.8v 2300mAh
Input Voltage	DC16.8v
Product Dimension	180mm*140mm*140mm
Packaging Dimension	310mm*275mm*255mm
Net weight	2.2kg

Features

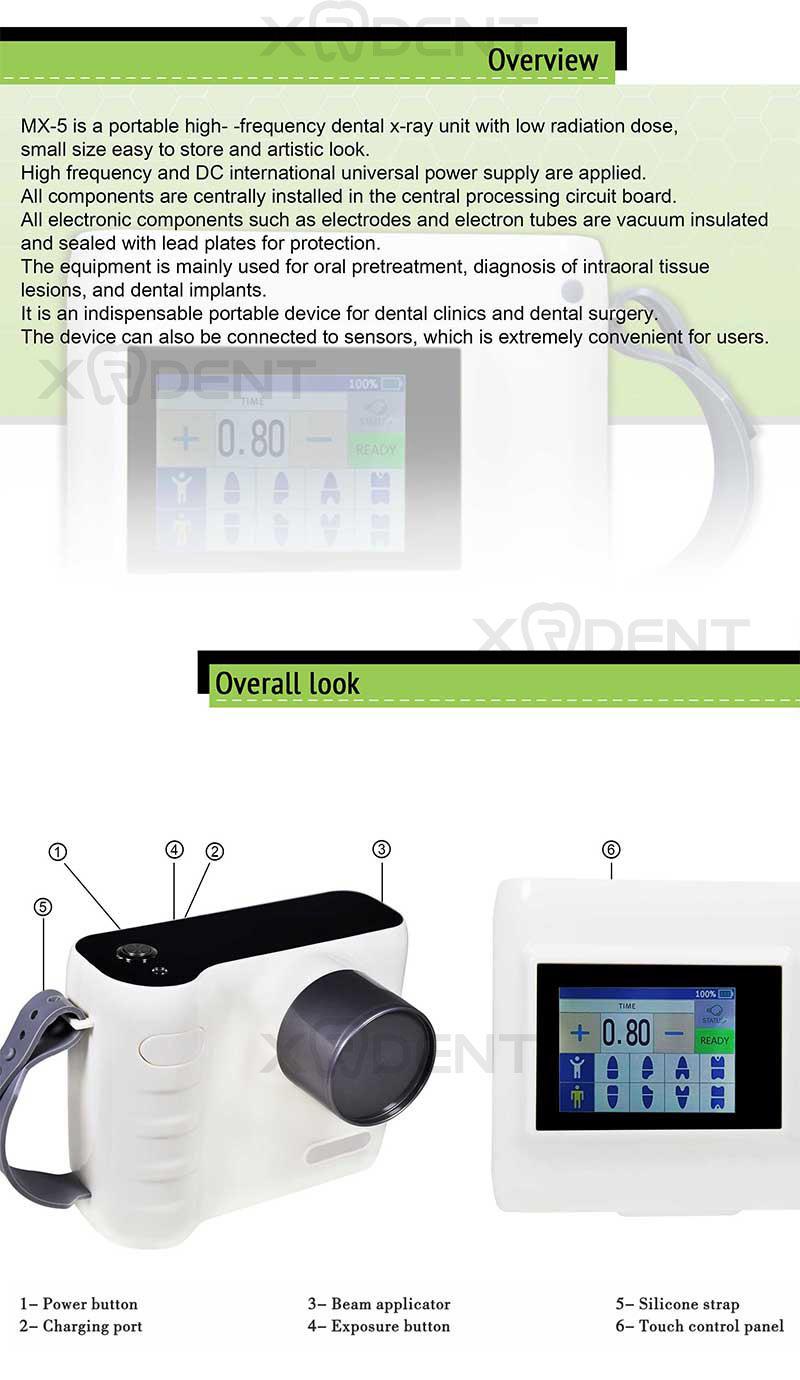

★High-frequency portable dental x-ray unit with low radiation dose, small size easy to store and artistic look.
★High frequency and DC international universal power supply are applied. All components are centrally installed in the central processing circuit board. All electronic components such as electrodes and electron tubes are vacuum insulated and sealed with lead plates for protection.
★The equipment is mainly used for oral pretreatment, diagnosis of intraoral tissue lesions, and dental implants. It is an indispensable portable device for dental clinics and dental surgery.
★The device can also be connected to sensors, which is extremely convenient for users.
