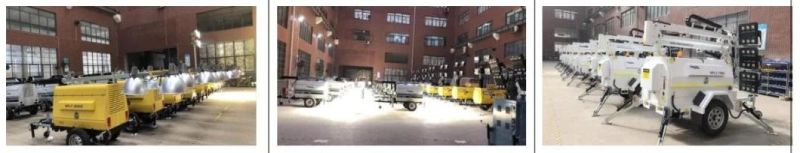

8.5m LED Hydraulic Telescopic Vertical Mobile Light Tower
Hebei Rongyuan Plastic Products Co., Ltd.- Item Type：LED Hydraulic Telescopic Vertical Mobile Light
- Input Voltage(V)：AC85~265V DC48V
- Luminous Flux：67200*4lm
- Life：50000h
- IP Rating：IP68
- Transport Package：Pearl Wool, Bubble Pack,Wrapping Film- Iron Frame
Base Info
- Model NO.：RPLT-6800led
- Specification：4500*1350*1700mm
- Trademark：RobustPower
- Origin：China
- HS Code：94054090
- Production Capacity：300 Sets Per Month
Description
Technical specificationsGENERATOR Engine Kubota D1105-BG Diesel Engine Type 3 cylinders,in line,water cooled Prime Power 6.7kW / 50Hz 8.4kW/60Hz Engine Aspiration Natural Alternator Stamford PI044F/4pole,Brushless,excitation Voltage 120,220,230,240V Insulation H Fuel Tank Capicity(L) 100 L Fuel Consumption 2.0 L/h Maximum Working Hours 50 Control system GU3303 Digital controller Engine Shutdown Protection Low oil press,over speed,over current,high temperature detection,low fuel level Ayxiliary Sockets 2 Lighting Total Power Of Lamps 4x480W Type Of Lamp led flood light Housing Materials aluminium Lumen 4*67200lm Lifetime Of Lamp 50000 hours Working Temperature ≤85°C led ip IP68 Mast Type 6~7-Sections Telescoping mast 8~9M Total Height Top 9M Rotation 360 degrees Operate For Elevation Hydraulic Trailer Tow Hitch Ring/ball hitch Stabilier Supports 4*Manual 4*Hydraulic Tire Size 13 inch Brakes Manual DIMENSION & WEIGHT Dry/Net Weight 930/890 kg Extended Dimension(LxWxH) 4500*1350*1700mm Shipping Package Iron Pallet 2100*1300*2400mm Carton 520*520*400mm Container Load(20GP/40HQ) 6/12 sets Color White/Yellow/Optional
