RGB LED Kits/Tape Light SMD5050 LED Strip 60LED/M 14.4W/M

Dongguan Xukang Industrial Co., Ltd.
  • Certification：FCC, RoHS, CE, TUV Ce, IEC,En62471, Lm-80
  • Power：14.4W,M
  • Emitting Color：Red,Green,Blue,Color Change,Color Fade,Mixed Chang
  • Voltage：12V,24V DC
  • IP Rating：IP20, IP65, IP67, IP68 Optional
  • Size ( L*W*D )：5000*10*1.8mm

Base Info

  • Model NO.：TLV-FSWQ60-5050 RGB-14.4W
  • Type：Flexible LED Stripe LED Rope Light
  • LED Source：Quality SMD5050 RGB
  • LED：99.99% Gold Wire, Red Copper Pad
  • PCB：Double-Sided FPC
  • Color：Red,Green,Blue,Color Change,Color Fade,Mixed Chang
  • Working Voltage：12V,24V DC
  • Power Consumption：14.4W,M
  • LED Luminous：18-22lm,LED
  • Lighting：Waterproof LED Strip Light
  • Usage：KTV,Bar,House,Commercial,Decorative,Kitchen...
  • Working Life：>30, 000hours
  • Warranty：2 Years
  • Packing：5mts,Roll, Color Box Packing or Anti-Static Bag
  • Certificates：TUV Ce, FCC, RoHS, IEC,En62471, Lm-80
  • Transport Package：Inner Box and Carton, 100reels,CTN
  • Specification：SMD5050 RGB LED strip 60LEDs,m
  • Trademark：Topledvision
  • Origin：Shenzhen, China
  • HS Code：9405409000
  • Production Capacity：50000m,Month

Description

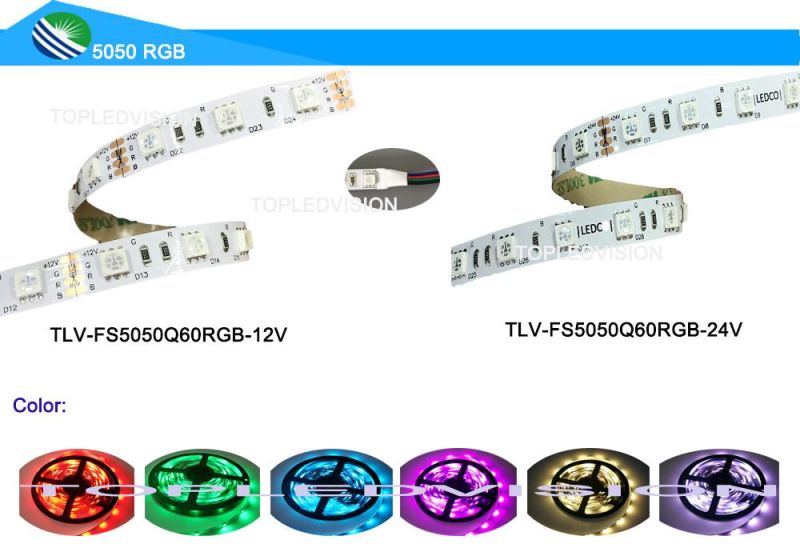

RGB LED Kits/Tape Light SMD5050 LED Strip 60LED/M 14.4W/M
TLV-FS5050Q60RGBItemHigh quality 5050 RGB LED stripLED quantity60LEDs/mPower(watt)14.4W/m maxWorking voltage12V/24V DCColor temperaturePure Red, Pure Green, Pure Blue color change and color fade, mixed color changePCB10mm double sided FPCDimension5000*10*1.8mmIP rateIP20(IP33)/IP65/Nano coating/IP67/IP68Cutting unitevery 3LEDs(50mm) / 6LEDs(100mm)Backwith Original 3M adhesive tape ( strong double sided more viscous )Working lifespan>30,000hrsWarranty2 yearsCertificatesTUV CE, FCC, IEC/EN62471Good color temperature consistency and stable quality:
We do large stock materials for normal Products to keep the same color temperature and PCB and stable quality for each batch for you.RGB LED Kits/Tape Light SMD5050 LED Strip 60LED/M 14.4W/M
Features as follow:
1. LED source: 18-22lm/LED high brightness and low decline (less than 3%) after 3000hours working.
2. Modular design: every 3LEDs or 6LEDs as a module and work independently.
3. Voltage: 12V/24VDC input Voltages can support longer LED strip connection.
4. Working current: 90-95% to keep the lumen efficiency safely
5. FPC size:10mm width FPC and smaller components, LED stripe is more flexible.
6. Support customized size: you can cut the LED strips into the size you want (support customized length).
7. Dimming support: by manual or IR, be able to adjust the LED stripes brightness.
8. Lifespan: our LED rope light more than 50000hours working life with 2 years warranty.
9. Easy Installation: 3M tape on the back of strip light and maintenance free.
10. IP rating: our flexible led strip light have different IP level be able to install in any indoor/outdoor environments (non-waterproof, waterproof)
11. ≤ 15º C temperature rise.
12. 100% aging line test before packing minimizes the possibility of defective products out of the factory.
13. TUV CE, FCC, RoHS and IEC/EN62471 photobiological safety compliant.RGB LED Kits/Tape Light SMD5050 LED Strip 60LED/M 14.4W/MService1. Provide free technology support by phone and e-mail2. We provide training to replace the broken part3. Two years guarantee: In guarantee period, we provide the free new part for replacing.Payment50/% deposit by T/T. Balance T/T before shipment.DeliveryApprox 7-10 working days normally ( from receiving the deposit )TransportationBy Air / SeaEffective date30days
We welcome OEM and ODM service, we have professional engineer to design and produce according your requirement.
