Waterproof Outdoor P10 Full Color LED Advertising Display Screen
Danyang Yun Kai Metal Products- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：10mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption：220W , m²
Base Info
- Model NO.：10mm
- Pixel Density：10000 dot , m²
- Scanning Mode：1,4 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, RoHS, UL, CCC, ETL
- Module Size：160X160mm
- Module Resolution：16X16dots
- Cabinet Size：960X960X150mm
- Cabinet Resolution：96X96dots
- Screen Brightness：7000nits
- Protection Grade：IP65
- Compliance：Ce
- Controller：Nova, Linsn
- Maintenance：Rear Service
- Transport Package：Plywooden Case
- Specification：960x960mm
- Trademark：CKGLED
- Origin：China
- HS Code：8528591090
- Production Capacity：6000sqm,Month
Description
Pixel pitch10mmModule size160mm*160mmModule pixel16dots*16dotsDriving methodStatic constant drivingPixel configurationDIP 1R1G1BPixel density10000 dots/sqmModule resolution256dots
Cabinet specifications:
Cabinet size960mm*960mm*150mmCabinet resolution96dots*96dotsCabinet weight50kgModule Qty36pcsCabinet pixel9216dotspower consumption(w/sqm)AVE.202 / MAX.599
Screen parameters:
No.ParameterSpecification1Pixel Pitch10mm2Pixel Density10000pix/sqm3LED TypeDIP3464Viewing Angle(H)120°,(V)60°5Brightness≥7500cd/sqm6Drive MethodStatic scanning7Driving ICMBI51248Color Depth40969Refresh Rate≥1920 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤60kg/sqm14VoltageAC 220/110V±10%,50Hz15Avg. Power Consumption220W/sqm16Max. Power Consumption650W/sqm17Assembly precision between PCB≤1 mm18Service AccessRear maintenance19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH21Control modesynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)24Data TransmissionUnshielded twisted- pair net line transmission distance 100m, max transmission distance 130m; Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km25Storage Temp/Humidity-40ºC~60ºC, 10~95%RH26Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV27MTBF≥10000hours28Lifetime(Normal Temp)≥100,000Hours

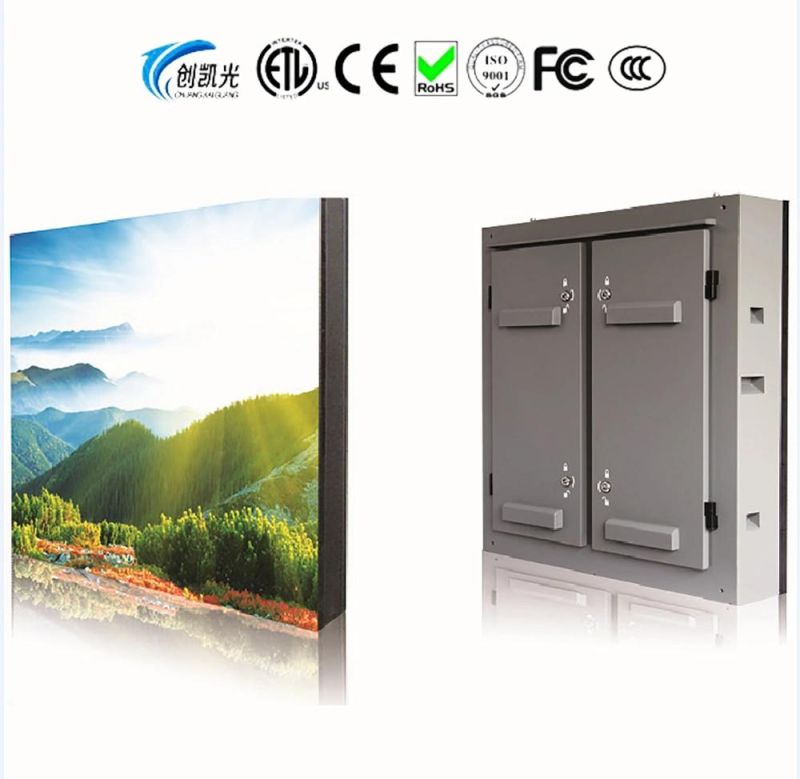

Product photos:

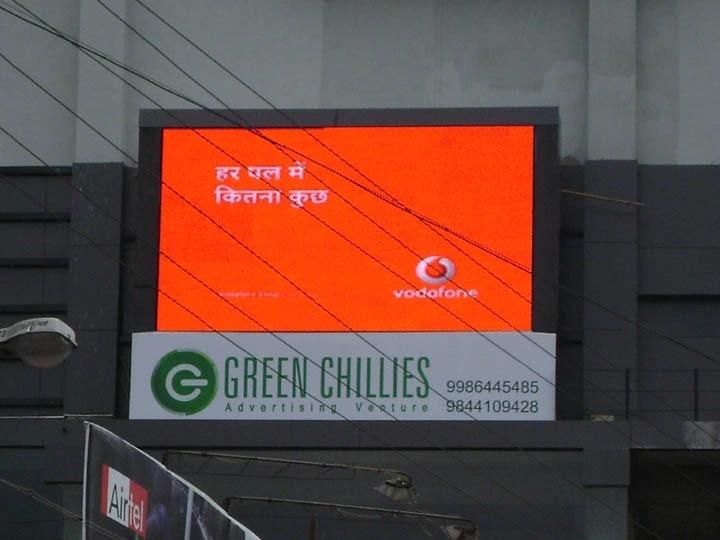

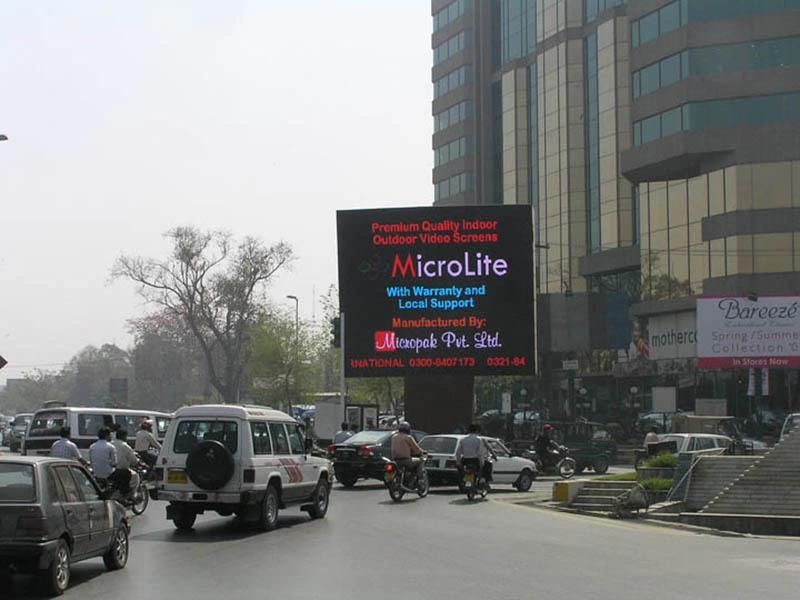

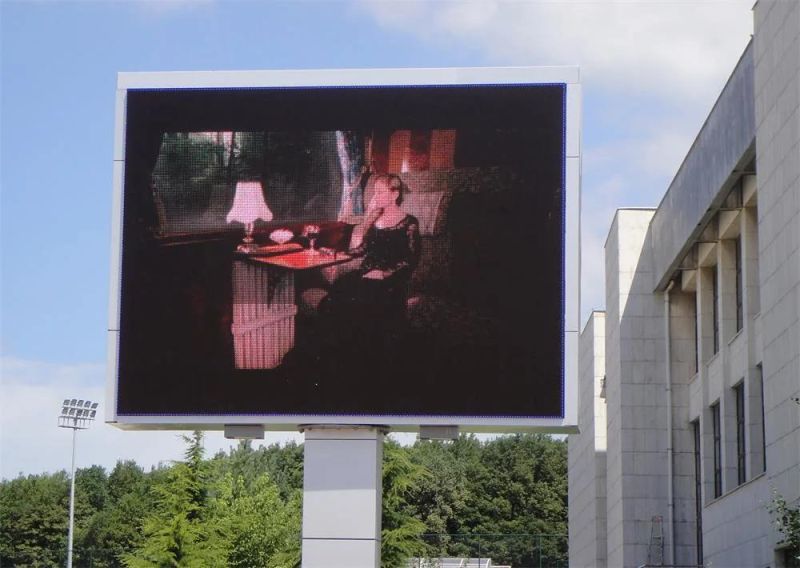

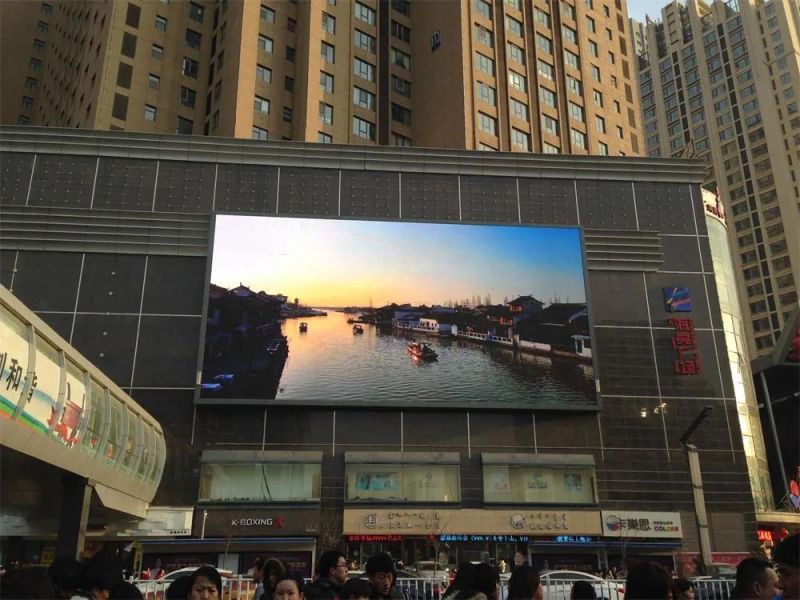

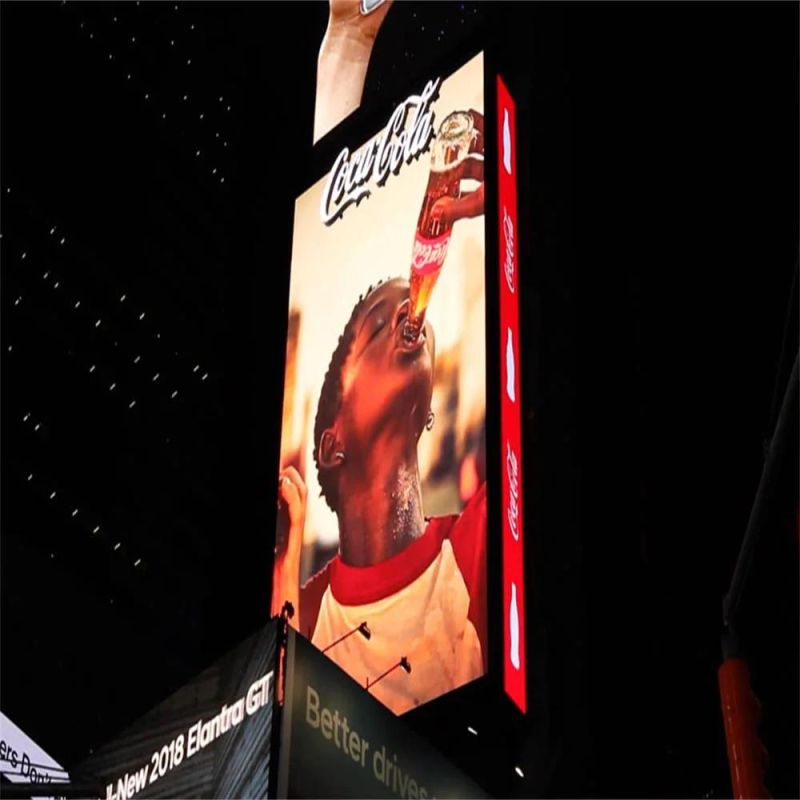

LED display Project With CKGLED Brand:

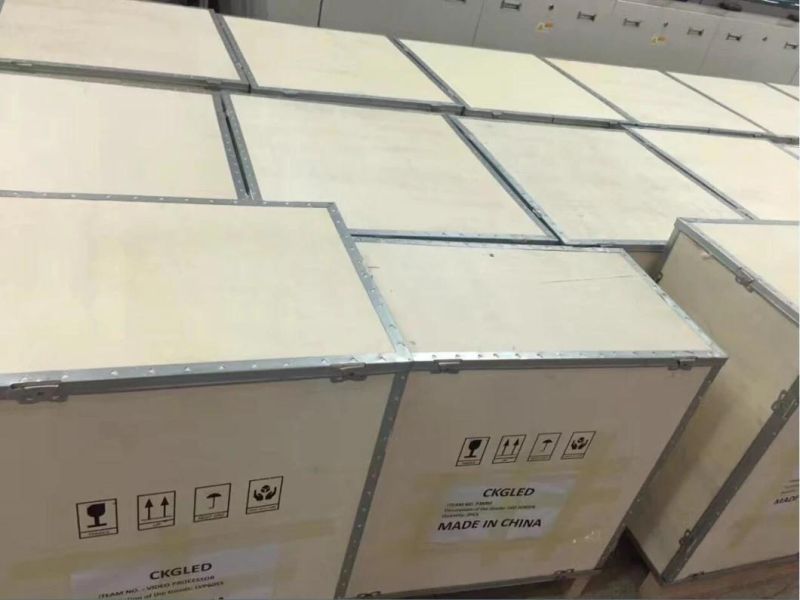

Wooden case Package:
Certificates:
