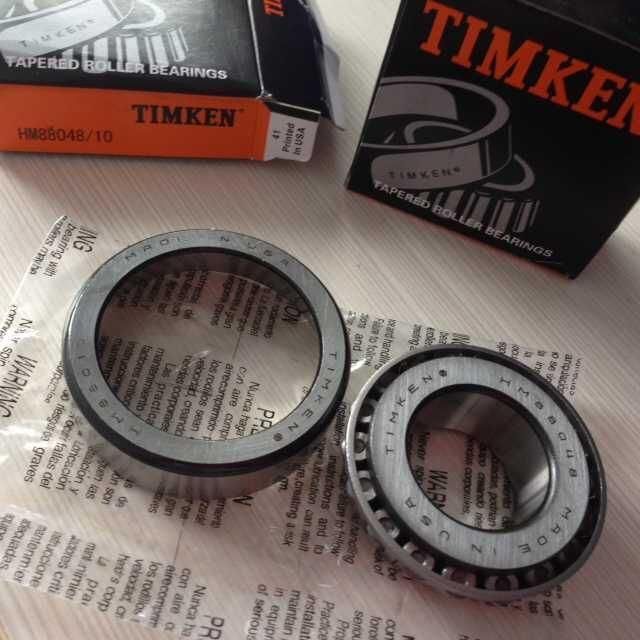

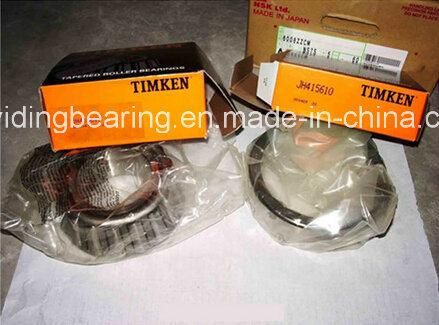

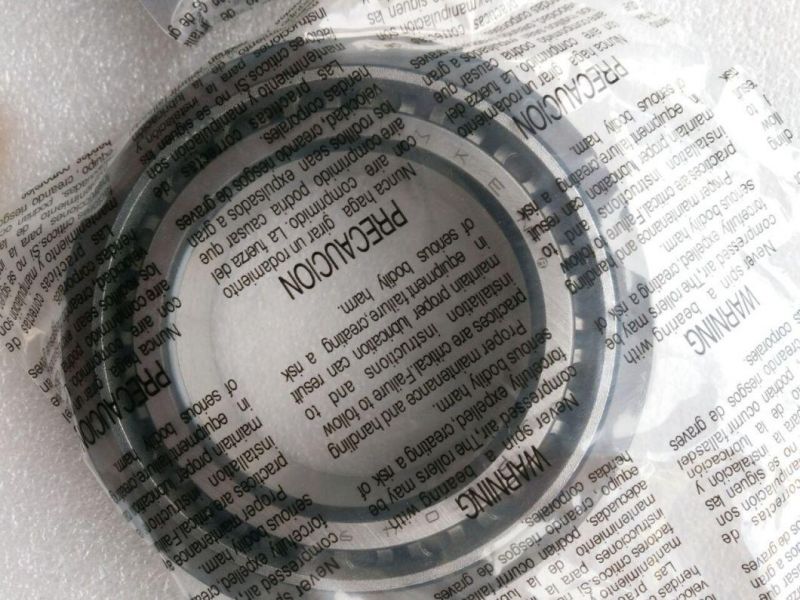

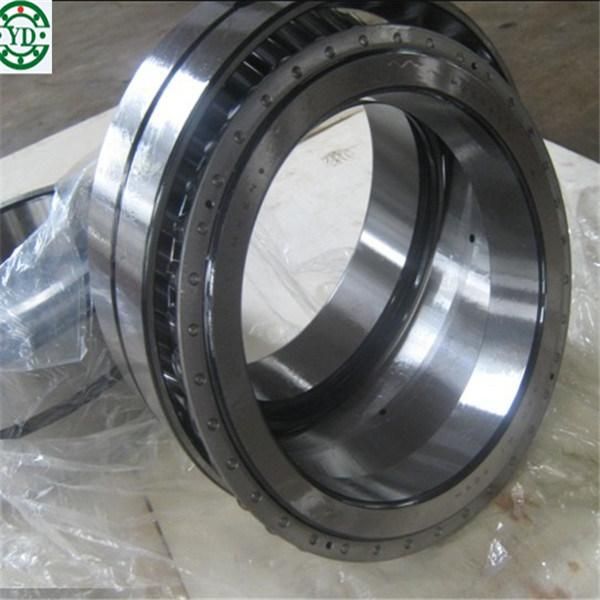

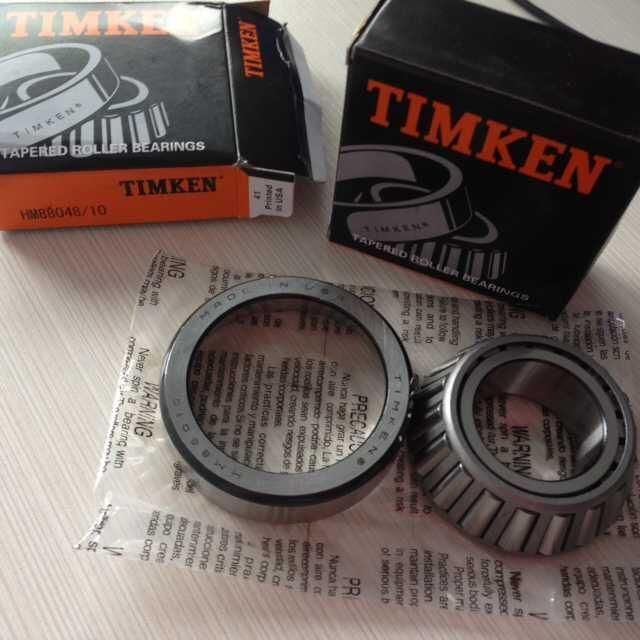

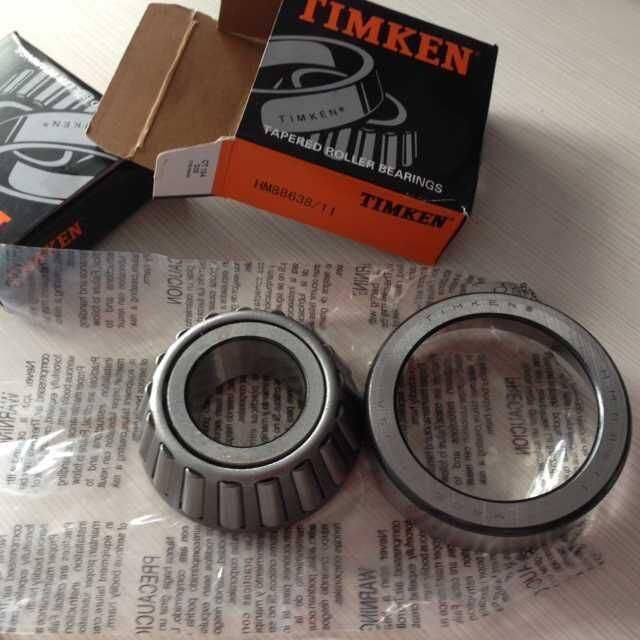

Koyo Timken Bearing World Famous Brand Conical Roller Bearing
Ruian Sowinpak. Co., Ltd.- Rolling Body：Roller Bearings
- The Number of Rows：Single
- Outer Dimension：Small and Medium-Sized (60-115mm)
- Material：Bearing Steel
- Spherical：Aligning Bearings
- Load Direction：Radial Bearing
Base Info
- Model NO.：koyo timken
- Separated：Separated
- Brand Name：Timken , NSK, SKF,Koyo,NTN
- Structure：Taper
- Type：Roller
- Number of Row：Single Row,Double Row
- Tolerance：ABEC1 ABEC3 ABEC5 ABEC7 ABEC9
- Cage：Steel,Brass,Nylon
- Seals Type：Open, Rubber Seals, Metal Shield
- Transport Package：According to Per Client′s Requirements
- Trademark：YD
- Origin：China
- HS Code：8482200000
- Production Capacity：50000 Pieces,Month
Description
boundary dimensions(mm)basic load ratings(kn) limiting speeds(rpm) bearing no. d d t r r1 cr cor grease lub. oil lub. min. min. 45 75 20 1 1 62.8 86.5 5000 6600 32009 45 75 24 1 1 69.6 101 5000 6700 33009 45 80 26 1.5 1.5 87.5 120 4800 6400 33109 45 85 20.75 1.5 1.5 67.2 77.4 4600 6100 30209 45 85 24.75 1.5 1.5 84.2 104 4600 6100 32209 45 85 32 1.5 1.5 112 149 4600 6200 33209 45 100 27.25 2 1.5 113 128 4100 5400 30309 45 100 38.25 2 1.5 146 180 4100 5500 32309 50 80 20 1 1 65.7 94.5 4600 6100 32010 50 80 24 1 1 73 110 4600 6100 33010 50 85 26 1.5 1.5 89.4 127 4400 5900 33110 50 90 21.75 1.5 1.5 76.5 91.7 4300 5700 30210 50 90 24.75 1.5 1.5 85 105 4300 5700 32210 50 90 32 1.5 1.5 119 167 4300 5700 33210 50 110 29.25 2.5 2 137 152 3700 4900 30310 50 110 42.25 2.5 2 176 220 3700 5000 32310 55 90 23 1.5 1.5 84.6 121 4100 5500 32011 55 90 27 1.5 1.5 96.5 145 4100 5400 33011 55 95 30 1.5 1.5 116 161 4000 5300 33111 55 100 22.75 2 1.5 94.6 113 3900 5200 30211 55 100 26.75 2 1.5 107 133 3900 5200 32211 55 100 35 2 1.5 142 189 3900 5200 33211 55 120 31.5 2.5 2 149 170 3300 4500 30311 55 120 45.5 2.5 2 200 250 3400 4500 32311 60 95 23 1.5 1.5 86.1 127 3900 5200 32012 60 95 27 1.5 1.5 101 162 3900 5200 33012 60 100 30 1.5 1.5 118 170 3700 5000 33112 60 110 23.75 2 1.5 106 127 3500 4700 30212 60 110 29.75 2 1.5 132 167 3500 4700 32212 60 110 38 2 1.5 174 239 3600 4700 33212 60 130 33.5 3 2.5 173 201 3100 4100 30312 60 130 48.5 3 2.5 244 315 3100 4200 32312 65 100 23 1.5 1.5 90 137 3600 4800 32013 65 100 27 1.5 1.5 103 169 3600 4800 33013 65 110 34 1.5 1.5 152 223 3400 4600 33113 65 120 24.75 2 1.5 128 156 3200 4300 30213 65 120 32.75 2 1.5 157 203 3200 4300 32213 65 120 41 2 1.5 200 277 3200 4300 33213 65 140 36 3 2.5 204 239 2800 3800 30313 70 110 25 1.5 1.5 108 163 3300 4400 32014 70 110 31 1.5 1.5 134 208 3300 4400 33014 70 120 37 2 1.5 181 266 3100 4200 33114 70 125 26.25 2 1.5 138 173 3100 4100 30214 70 125 33.25 2 1.5 169 225 3100 4100 32214 70 125 41 2 1.5 206 294 3100 4100 33214 70 150 38 3 2.5 230 273 2600 3500 30314 70 150 54 3 2.5 317 414 2700 3600 32314 75 115 25 1.5 1.5 110 169 3100 4200 32015 75 115 31 1.5 1.5 141 225 3200 4200 33015 75 125 37 2 1.5 186 280 3000 4000 33115 75 130 27.25 2 1.5 142 181 2900 3900 30215 75 130 33.25 2 1.5 174 234 2900 3900 32215 75 130 41 2 1.5 212 310 2900 3900 33215 75 160 40 3 2.5 260 311 2500 3300 30315 75 160 58 3 2.5 363 481 2500 3300 32315
