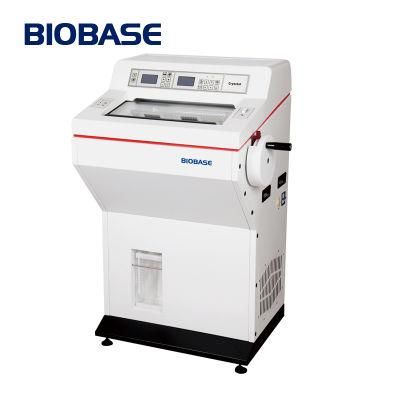

• Model NO.：BKCM-285
• Refrigerant：R404A
• Specimen Orientation：Xy – 8°
• Specimen Clamp Rotation：at Any Angle Within 360°
• Transport Package：Cartoon Package
• Specification：BKCM-285
• Trademark：BIOBASE
• Origin：China
• Production Capacity：50000 PCS Per Year

Model

BKCM-295(BK-2318)

Section Thickness Range

1~100μm

Increments 1μm

Increments 2μm

Increments 5μm

Timing Thickness Feed

10~400μm

Increments 5μm

Increments 10μm

Increments 50μm

Chamber Temperature

-10ºC ~ -40ºC

Specimen Head Temperature

-10ºC ~ -40ºC

TimeToReach -40ºCOfTheQuick-freezeShelf

60min

LowestPossibleTemperatureOfThe PeltierElement

-45ºC

LowestPossibleTemperatureOf The PeltierElementTogetherWithQuick-freezeShelf

≤ -60ºC

Display

LCD display of sections and the total thickness,section thickness,specimen retraction value,temperature setting,data,time,temperature and on/off timer

Compressor Number

Double

Refrigeration Type

Forced cryogenic refrigeration system

Semiconductor refrigeration can be turned on and off

Refrigerant

R404a

Specimen Orientation

 XY - 8°

Specimen Clamp Rotation

At any angle within 360°

Running time of the Peltier Element

15min

Maximum Specimen Size

35mm*35mm

Specimen Vertical Stroke

60mm

Specimen Horizontal Stroke

20mm

Electric Coarse Feed

Rapid 0.7mm/s; Slow 0.35mm/s

Compressor

Compressor

Specimen Retraction Distance

0~100μm, in 5μm increments

Consumption

850W

Power Supply

AC220V±10%,50Hz (standard model); AC110V±10%,60Hz

External Size(W*D*H)

660*640*1130mm

Packing Size(W*D*H)

790*790*1370mm

Gross Weight

170kg
