P12mm Fixed Full Colour LED Display and LED Video Wall
Emoer Industry Limited- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：12mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display
- Average Power Consumption：25W
Base Info
- Model NO.：p12
- Pixel Density：6944 dot , m²
- Scanning Mode：1,4 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, CCC
- Deliver Time：15-20 Days
- Warranty Period：2years
- Driving Device：Constant Current Drive
- Scan Type：1,4 Scan
- Life Span：100000 Hours
- Brightness：7500 Mcd,Sqm
- Module Size：192mm*192mm
- Resolotion：16*16
- LED：546 DIP
- Color Display：1r1g1n
- Transport Package：Iron Case
- Specification：640mm*640mm
- Trademark：FWS
- Origin：Shenzhen China
- HS Code：9405409000
- Production Capacity：2500square Foot,Square Feet Per Month
Description
P12 Outdoor full Color LED Screen SpecificationPixel pitch 12mm Pixel Configuration 1R1G1B LED component DIP 546 Size of module 192mm x 192mm Resolution of module 16x16 Resolution of cabinet 96x80 Material of Cabinet Iron with back doors Weight of Cabinet <70KGS Brightness >7500cd/sq.m Density 6944dots/sq.m Best viewing angle 110 /50 Best viewing distance 10-150M Maximum power consumption <800W/sq.m Average power consumption <300W/sq.m Driving method 1/4 scan Control method Synchronization/Asynchronization Colors 256*256*256 Color temperature 3200-9300k Uniformity 97% Working voltage AC220V/110V±10% Working temperature -20ºC~+50ºC±10% Working humidity 10% ~ 90% MTBF 10,000 hours Frame frequence 50/60Hz Refresh frequence >1800Hz IP grade IP65 Life Span 100,000 hours Effectivce Communication
Distance(without relay) Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Case
Our workshop

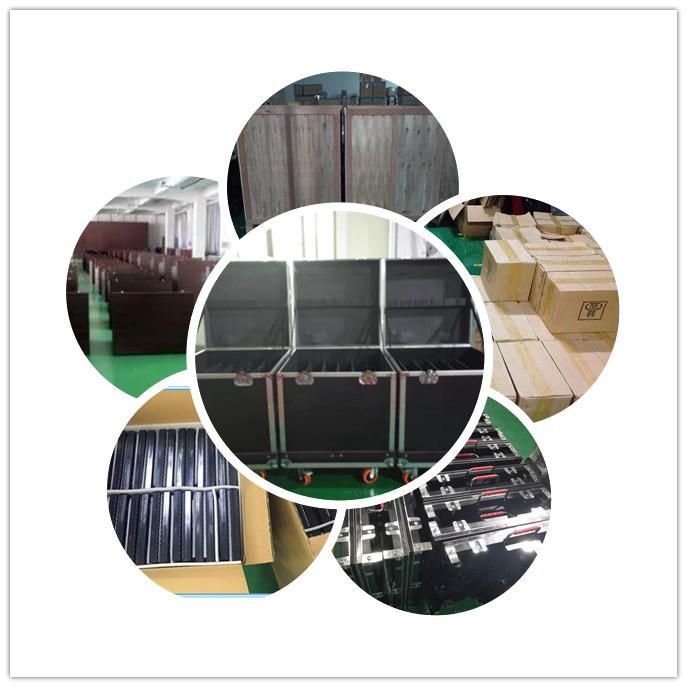

Packing
Customer Visiting
Our Service
1) Your inquiry related to our products or price will be replied in 24hours
2) Well-trained and experienced staffs to answer all your enquires in fluent English
3) OEM&ODM, any your customized screen we can help you to design and put imto product.
4)Distributoer ship are offered for your unique design and some our current models.
5)P rotection of your sales area, ideas of design and all your private information
Certificate
Trade Terms;
1) Payment:T/T, usually 30% prepayment before production, 70% balance to be paid before delivering, it also change according to total quantity
2) Production lead time less 20sqm:7-15days, more than 50 sqm:30days
3)Sample can be delivered in 30days
4) Shipping port: Shenzhen, Mainland China
5) Discounts are offered based on order quantities
6) MOQ:1sqm/1pcs
