Separable Hydraulic Bearing Puller (HHL-F)
Weifang Tailin Domestic Products Co., Ltd.- Tonnage：5ton ~ 50ton
- Transport Package：Plastic Box
- Specification：CE, ISO9001: 2008
- Trademark：TLP
- Origin：Zhejiang, China
Base Info
- Model NO.：HHL-5F HHL-10F HHL-20F HHL-30F HHL-50F
- HS Code：84678900
- Production Capacity：1000psc,Month
Description
Basic Info.
Model NO. HHL-5F HHL-10F HHL-20F HHL-30F HHL-50F HS Code 84678900 Production Capacity 1000psc/MonthProduct Description

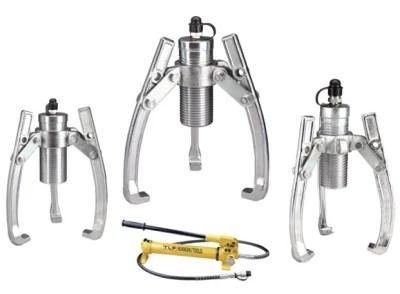

Separable Hydraulic Gear Puller1. Simple to operate. Easy to remove bearings, gears, pulleys and other parts
2. Both two-jaw and three-jaw styles are available.3. High-quality return piston,quick return the Piston rod was hard chrome plating, high safety and with long lifetime4. Claw and the frame were forged with high strength alloy steel, not easy to deformation and chrome plated
| Model | Output (T) | Max. stroke (mm) | Claw number | Spread (mm) | G. W. (kg) | Volume (cm) |
| HHL-5F | 5 | 50 | 3 | 50-200 | 15 | 73*18*18 |
| HHL-10F | 10 | 50 | 3 | 50-250 | 20 | 73*18*18 |
| HHL-20F | 20 | 60 | 3 | 100-350 | 27 | 73*21*18 |
| HHL-30F | 30 | 60 | 3 | 150-400 | 35 | 73*25*18 |
| HHL-50F | 50 | 60 | 3 | 200-500 | 55 | 73*25*18 |
