• Model NO.：P2
• System Operating Platform：Windows Series
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP60
• Transport Package：Wooden Case or Carton
• Specification：256X128mm
• Trademark：SzWinfin
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：6000PCS,Month

Basic Info.

Model NO. P2 System Operating Platform Windows Series Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP60 Transport Package Wooden Case or Carton Specification 256X128mm Trademark SzWinfin Origin Shenzhen, China HS Code 8528591090 Production Capacity 6000PCS/Month

Product Description

Functions and advantages

One: Slim and light , zero maintenance, zero noise.
Two: High density , high contrast, high brightness , high ash and high brush.
Three: High precision, seamless stitching, wide viewing angle, low power consumption, long life span, the picture is real and natural.
 Four: Can able to display any computer information,figures,pictures and 2 and 3D animation, it possesses abundant play mode, display moving information, and with large capacity in store data information.
 Five: Fitted for advertising,television,applied to monitor the command, advertising, television, senior frequency conference, cinema, shopping malls and other venues. The broadcast system has multimedia software,can flexibly input and play different information, can able to play text information.

Specification


NO.	P2 Indoor Full Color LED Screen Display Module Parameter
1,Pixel tube box	1)Pixel pitch: 2mm 2)Pixel Density:250,000dots/m2 3)Show colors:Single red,Single blue,Single green 4)Light color:Red+Green+Blue
2,Full screen	1)Best viewing distance:≥2m 2)Best viewing angle:H100 degree,V160 degree Optional 3)Ambient Temperature(ºC): -10ºC ~ +50ºC 4)Relative Humidity:10%~90%
3,Power Supply	1)Working Voltage(V):AC 220V±15% 47-64HZ 2)Average Power Consumption(W/m2):600W/m2 3)Max Consumption(W/m2):1400W/m2
4,Control System	1)Control host:Unlimited 2)Operating system:Unlimited 3)Control method:Synchronous Control
5,Main Technical Parameters	1)Driving component :LED Special drive part 2)Driving Mode:1/24 Constant Current Driving 3)Frame frequency:≥60Hz 4)Refresh frequency:≥2000Hz 5)Equilibrium Brightness:≥1200cd/m2 6)MTTF:≥10,000h 7)Life span:100,000h
6,Software	General LED monochrome player software
7,Protection Technology	Damp proof,Dust proof,Anti corrosive,Static-free,Lighting protection,with over current, short circuit, over voltage, under voltage protection function.
8,Assembling Structure	Modular structure design

Our Service

1. Your inquiry related to our products or price will be replied within 24hrs
2. OEM&ODM, any of your customized lightings we can help you design and put into product
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED  electronic screen and led large screen full color display.

Trade Terms

1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Xiamen, China
5. Warranty time: 1years
6. Delivery time: 2-15 working days

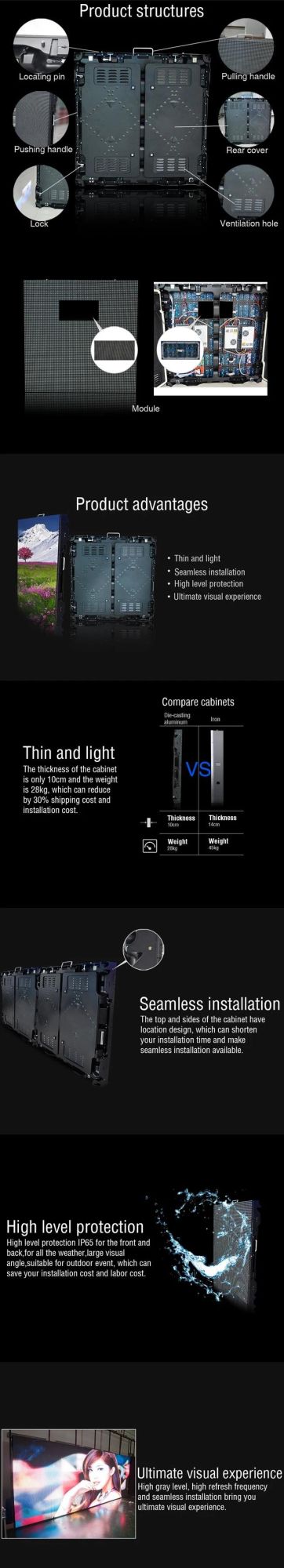

Product Structure:

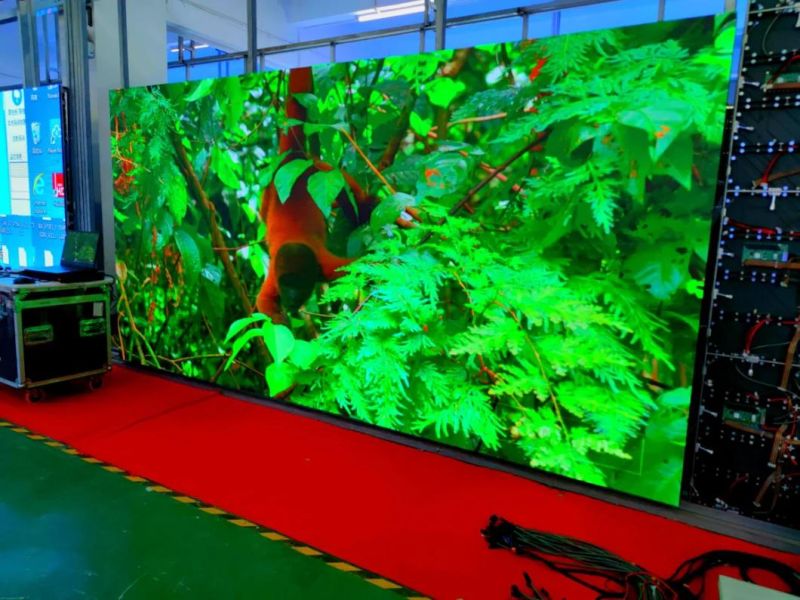

Product display:


 Certification:
Company View:


Package:
