in-Ground Hydraulic Electric Car Lift Jack Scissor Lift for Wheel Alignment
Shijiazhuang Lechan Packaging Co., Ltd- After-sales Service：24 Hours on Line
- Warranty：18 Months
- Type：Four Cylinder Hydraulic Lift
- Lifting Capacity：4T
- Driving Type：Hydraulic
- Certification：CE, ISO
Base Info
- Model NO.：HE-4021
- Driving Motor Number of Mechanical Lift：1
- Double Cylinder Lift Type：Planer-type
- Shearing Lift Type：Big Shear Type
- Condition：New
- Design：Scissor
- Lifting Height：2200mm
- Min. Height：340mm
- Lifting Time：70-90s
- Platform Length：4500mm
- Platform Width：600mm
- Motor Power：3.0kw
- Rated Oil Pressure：24MPa
- Air Pressure：0.6-0.8MPa
- Weight：1900kg
- Transport Package：Standard Export Package
- Specification：CE
- Trademark：HIGH ELEPHANT
- Origin：China
- HS Code：84254290
- Production Capacity：10000pieces,Year
Description

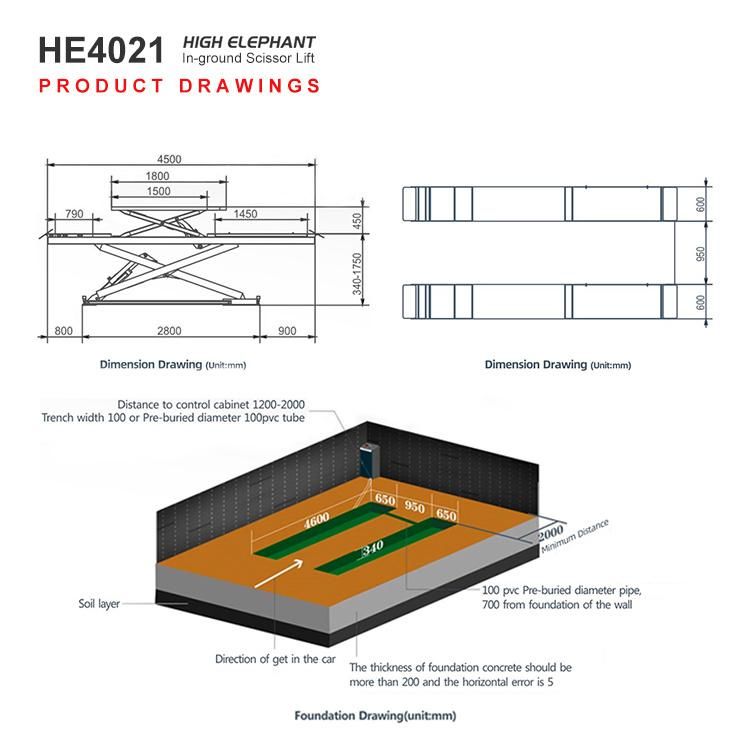

SPECIFICATION
HE4021
Lifting capacity
4000kg
lifting height
1750mm
Min. height
450mm
4500mm
600mm
Lifting time
70-90s
Weight
1900kg

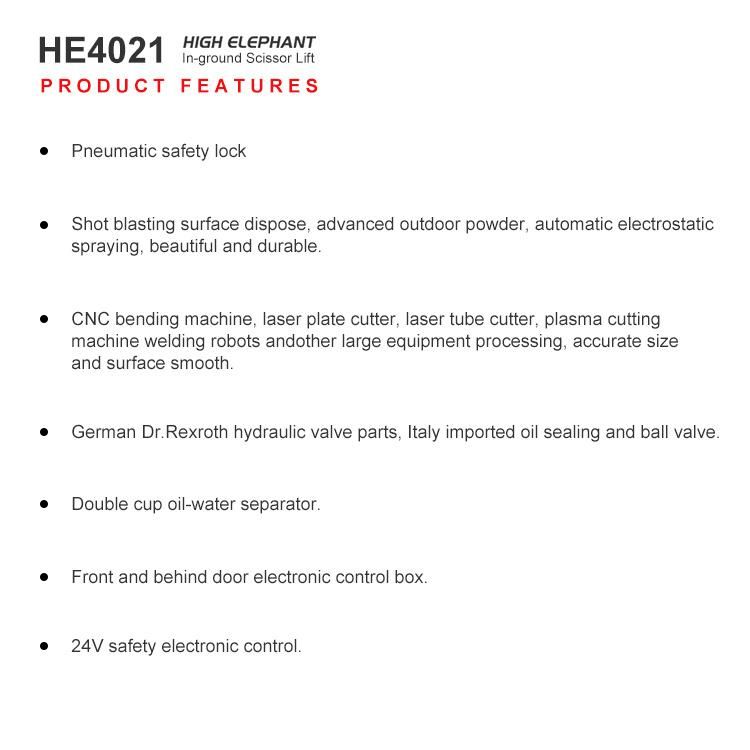

FEATURES:
Pneumatic safety lockShot blasting surface dispose, advanced outdoor powder, automatic electrostatic spraying, beautiful and durable.
CNC bending machine, laser plate cutter, laser tube cutter, plasma cutting machine welding robots andother large equipment processing, accurate size and surface smooth.
German Dr.Rexroth hydraulic valve parts, Italy imported oil sealing and ball valve.
Double cup oil-water separator.
Front and behind door electronic control box.
24V safety electronic control.
Product Details:
Top Limit Switch
Lower Limit Switch
Slave Cylinder Return Oil System
Oil Injection Hole
One Board Sideslip
Photoelectric Switch
Secondary Upper Limit
Secondary Lifting to Prevent Rollover
Secondary Jack with One side Extension
Our Company:
Yantai Lift Equipment Co., LTD. is a joint-stock enterprise. Specializing in a manufacturing andmarketing of Wheel alignment, Car lift, Tire changer, Wheel balance and other automobile maintenance
equipment .
Company adheres to long-term independently developed, independent production, has complete
independent intellectual property rights. Our products include the whole range of Wheel alignment,Car lift,
Tire changer and Wheel balance. Wheel alignment include car wheel alignment , truck wheel alignment,
special vehicle alignment. Car wheel alignment technology is 3D,That is latest technology in the world. Car
lifts include Single post lift, Two post lift, Four post lift, Motorcycle lift and Scissor lift. Many products have
been exported to Australia, Thailand, Malaysia, Indonesia, France, Spain Turkey, Jordan, Mexico and other
countries.

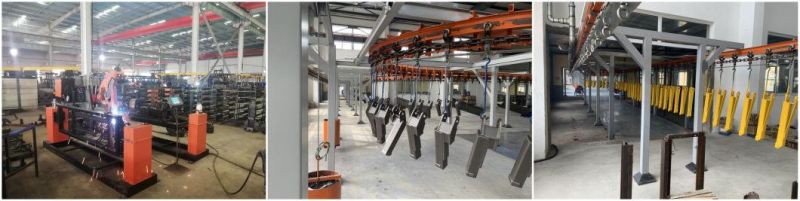

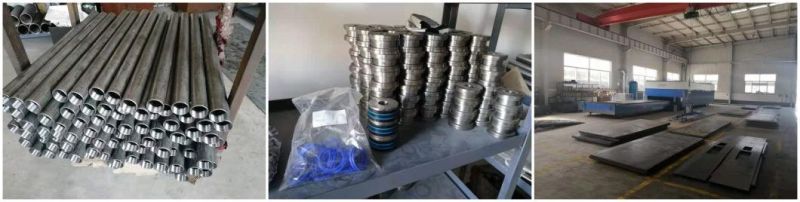

Our Factory:

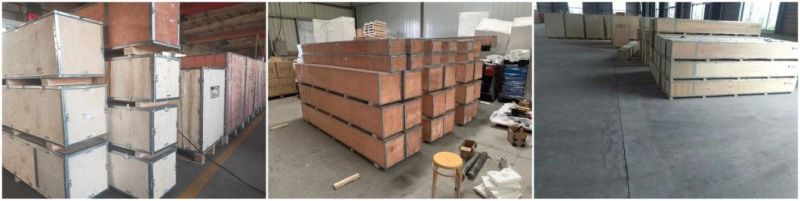

Packing And Shipping:
CE Certificate:

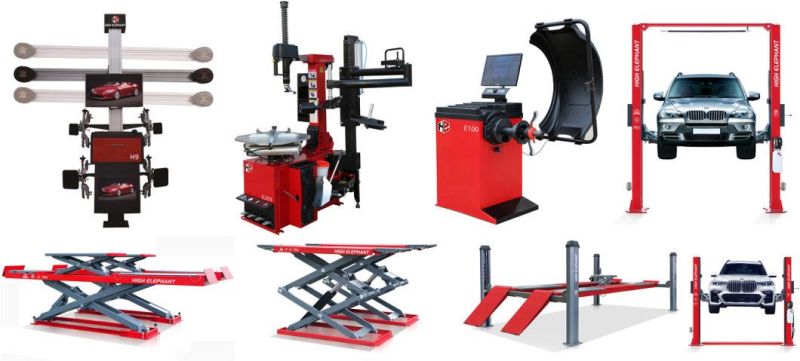

Other Choice:
Trade Info:
Trade Terms
FOB / CFR
MOQ
3UNITS (USD200.00 extrally charged for LCL shipment to cover the inland freight + custom declaration fee)
Port
Shipment
BY SEA /AIR
Payment Terms
T/T
Payment condition
30% prepayment,balanced before shipment.
Supply Capability
1000units/month
Sample Availability
Yes ,But all freight(Inland freight +seafreight) covered by buyer
Sample Time
5-10days(depends on whether have in stock)
Lead Time
25-30days(Rush season 5-10days longer)
Packing
Metal frame&Carton
Delivery time
30-45days shipping time (depends on destination position)
Service
1% free parts;1year warranty after port of destination
Our advantage:
1. Why should I choose our car lift ?
There are several reasons you should strongly consider purchasing our car lift:
*Top raw materials from only the finest plants.
*Only professional cost-effective equipment.
*Low prices with high quality revenue producing products.
*Increase productivity for your customers( Your customers gain more, they will enjoy buying from you.).
*The best customer service. Quick reply within 24 hours and more.
*Great Warranty.
2. How safe are our car lift ?
Our car lift have been tested and CE certified for safety . They also meet the American and Australian Standard.
3. Should I keep repair and replacement parts in stock?
Yes, most all commonly required repair and replacement parts should always keep in stock.
4. Are car lift designed for commercial use?
All of our car lift can be used in commercial applications without any problems.
5. Do you offer any custom designs?
Yes,we provide OEM/ODM services to top range partners.Produce a superior product for you by your designs.
