• Model NO.：PC080
• Changes Way：Stepped
• Type：Helical
• Input Speed：1400rpm
• Speed Ratio：2.45
• Output Speed：571.4rpm
• Size：275*200*80mm
• Weight：3.4kg
• Color：Blue
• Combined RV Gearbox：RV110,130
• Combined Ud Variator：Ud0.18,0.37,0.55~~4.0
• Certificate：ISO9001:2008
• Quality Guarantee：One Year
• Transport Package：1 PC , Carton, Several Cartons , Wooden Pallet
• Specification：ISO7
• Trademark：chenxin
• Origin：Zhejiang, China (Mainland)
• HS Code：848340900
• Production Capacity：20000set,Month

Basic Info.

Model NO. PC080 Changes Way Stepped Type Helical Input Speed 1400rpm Speed Ratio 2.45 Output Speed 571.4rpm Size 275*200*80mm Weight 3.4kg Color Blue Combined RV Gearbox RV110/130 Combined Ud Variator Ud0.18/0.37/0.55~~4.0 Certificate ISO9001:2008 Quality Guarantee One Year Transport Package 1 PC / Carton, Several Cartons / Wooden Pallet Specification ISO7 Trademark chenxin Origin Zhejiang, China (Mainland) HS Code 848340900 Production Capacity 20000set/Month

Product Description

Characteristics:



1)The pc construction is modular and therefore it can be as a separate unit mounted on any type of fitted geared motor (PAM



2)Fitting the prestage helical module on the main reduction unit is easily done as for any motor of type B14 The prestage unit cannot be used by itself, but only coupled with another reduction unit.

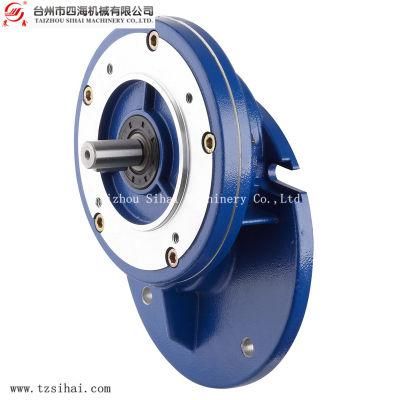

Model & Mark :PC 080

PC	Helical pre-stage unit
080	Frame size
