- Model NO.：SY-P3-32S
- System Operating Platform：Win98,2000,Nt,XP
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide
- IP Rating：IP43
- Certification：CE, RoHS, UL, CCC, FCC
- Warranty：Two Years Warranty After Shipping
- Panel Size：576mmx576mm
- LED Lamp：Epistar
- Power Supply：G-Energy or Meanwell
- Control System：Linsn or Novastar
- Transport Package：Flight Case
- Specification：CE, RoHS, FCC
- Trademark：SENY
- Origin：Shenzhen, Guangdong, China
- HS Code：8528591090
- Production Capacity：5000sqm Per Month
| Slim P3 Rental Indoor Outdoor Full Color LED Display for Stage Performance |
| S/N | Item | Technical Parameters |
| LED Parameters |
| 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle |
| 2 | Red LED | 2121SMD | 120-140mcd | 620-625nm | 140º/120º |
| 3 | Green LED | 2121SMD | 360-435mcd | 520-525nm | 140º/120º |
| 4 | Blue LED | 2121SMD | 80-100mcd | 470-475nm | 140º/120º |
| Module Specification |
| 1 | Pixel Pitch | 3mm |
| 2 | Pixel Configuration | smd2121(1R1G1B) |
| 3 | Module Resolution | 64 x 64 pixels |
| 4 | Module Pixles | 4096 pixels |
| 5 | Module Size | 192mm X 192mm |
| Cabinet Specification |
| 1 | Cabinet Size(W X H X D) | 576mm x 576mm x 80mm |
| 2 | Cabinet Resolution(dot) | 192 x 192 pixels |
| 3 | Module Quanity (pcs) | 9pcs |
| 4 | Cabinet Pixels | 36864 pixels |
| 5 | Pixel Density | 111111 pixels/m2 |
| 6 | Cabinet Materials | Die Casting Aluminum Cabinet for rental purpose |
| 7 | Cabinet Weight | 9.2kg per cabinet |
| 8 | PackagingFly case |
| 9 | Fly Case Size | 77CM*63CM*80CM ( one case for six cabinets ) |
| Whole Screen Specification |
| 1 | Screen Brightness | ≥1200cd/m2 |
| 2 | Driving Method | 1/32 scan |
| 3 | Best Viewing Distance | 3m - 30m |
| 4 | Max. Power Consumption | 1000W/m2 |
| 5 | Average Power Consumption | 500W/m2 |
| 6 | Gray Level | 8bits input, 4096 levels(212) |
| 7 | Display Color | 16M |
| 8 | Frame Frequency | ≥60Hz |
| 9 | Refresh Frequency | ≥1200Hz |
| 10 | Uninterrupted Working Hours | ≥72 hours |
| 11 | Screen Life-span | ≥100,000 hours |
| 12 | MTBF | ≥5,000 hours |
| 13 | Discrete Blind Spot Rate | <1/10000 |
| 14 | Continuous Blind Spot Rate | None |
| 15 | Blind Spot Rate | <1/10000 |
| 16 | Protective Scale | IP43 |
| 17 | Screen Plainness | <±1mm |
| 18 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| 19 | Working Temperature | Temperature: 0 Celsius~+40 Celsius |
| 20 | Storage Temperature | Temperature:-30 Celsius~+50 Celsius |
| 21 | Humidity | Humidity:10%~90% RH |
| 22 | Control Mode | Synchronous display with control PC by DVI |
| 23 | Control System | Linsn, Nova-star, Colorlight or as you required |
| 24 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
| 25 | Interface | Standard Ethernet |
| 26 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
| 27 | Certificate | CE, RoHS, FCC |

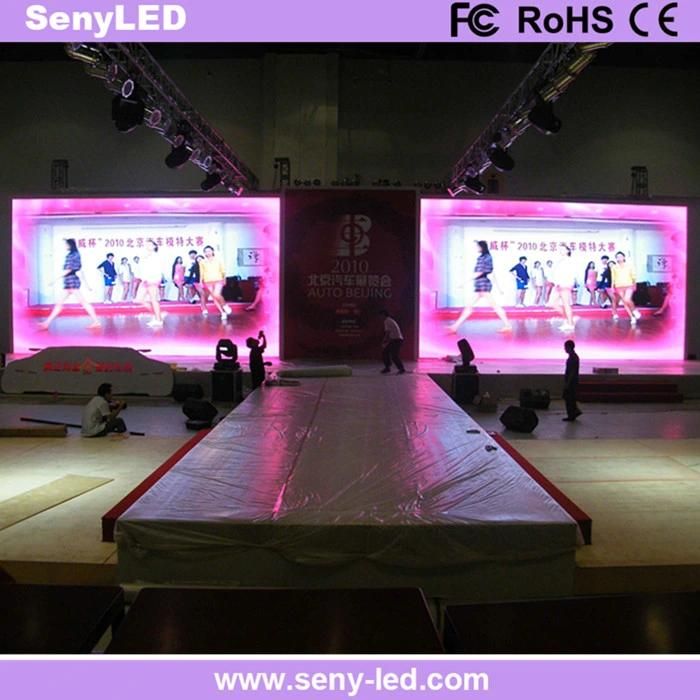

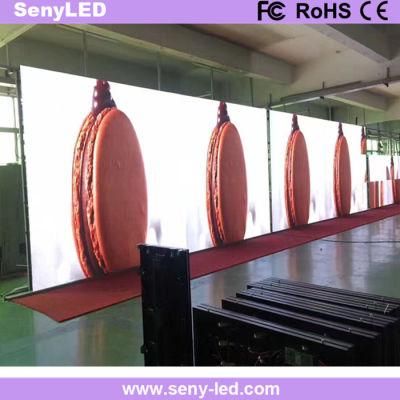

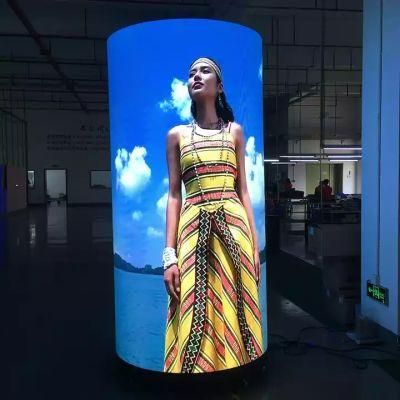

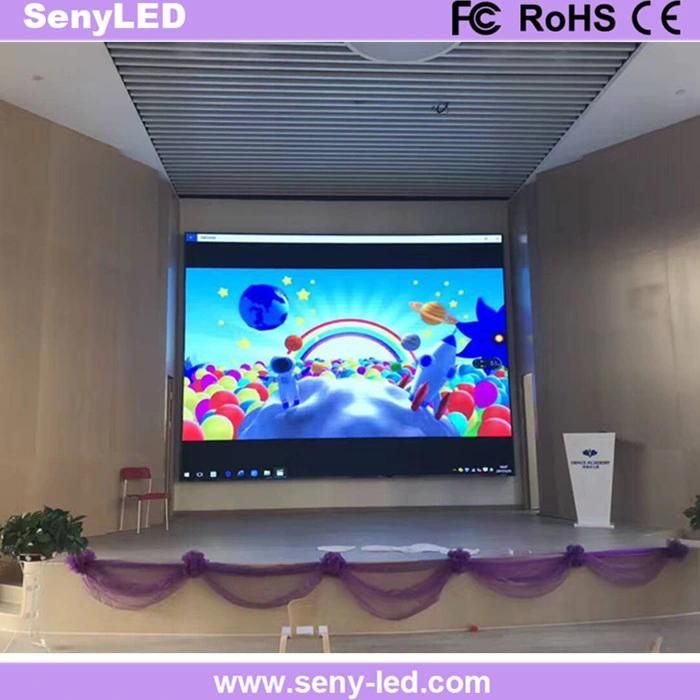

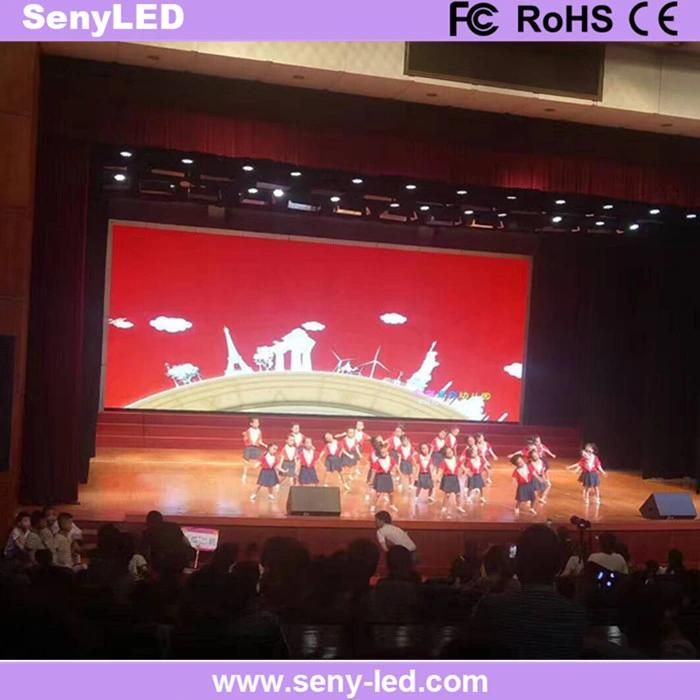

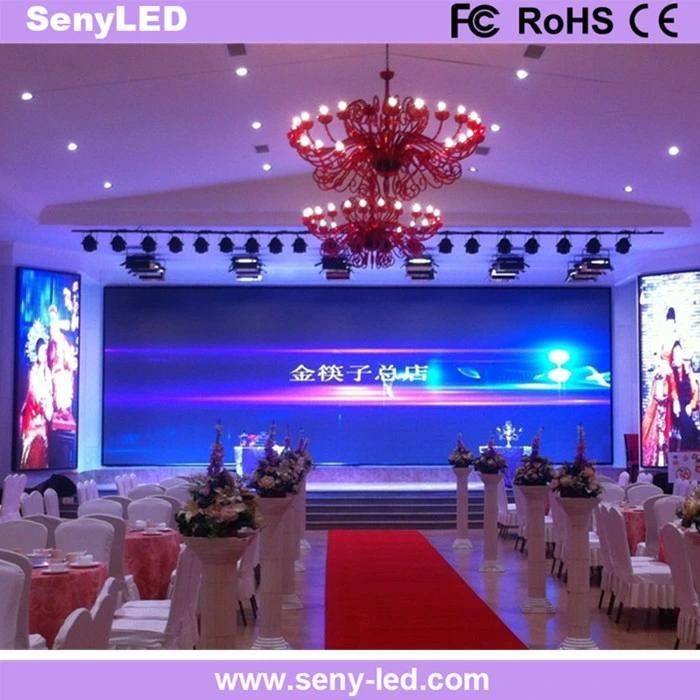

Project cases:

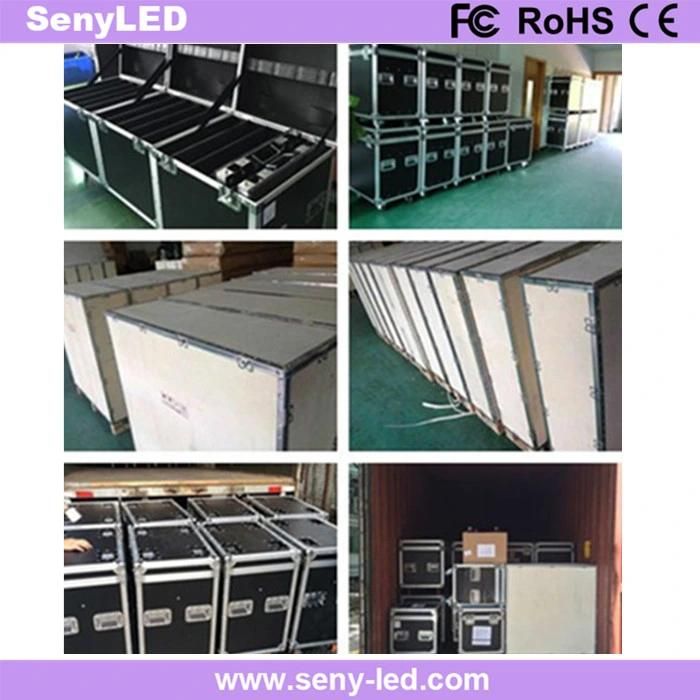

Packaging and delivery:
Our features
1. Good quality and price
The price is 10% lower than the market because of the introduction of full automatic production line with the characteristics of reducing the cost of labor and management.
2. Lightweight with no rust
It can use aluminum cabinet greatly saving fright cost and conveniently installing.
3. Stable performance
our most basic guarantee: the aging time exceeding 24 hours. Malfunction dot rate
less than 0.0001. MTBF more than 1000 hours.
4. Best quality LED chip tube
the GREE, SILAN, OPTO, EPISTAR assuring high brightness and long lifespan.
5. Supporting different formats of images and videos
Flash, WAV/MIDI, Videos from TV and other equipments.
