Full Color Mobile Rental LED Display Stage Screen P4.81
Tenda Enterprise Holdings Co., Limited- Tube Chip Color：Full Color
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Pixel Pitch：4.81mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：43264
- Scanning Mode：1,9 Scan
Base Info
- Model NO.：rental outdoor p4.81
- System Operating Platform：WIN XP
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide

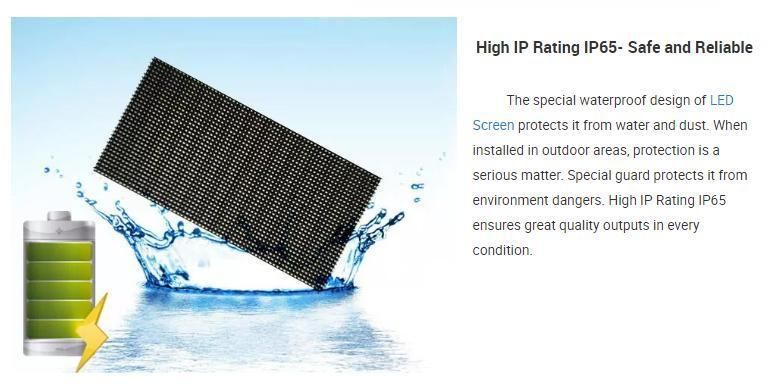

- IP Rating：IP65
- Certification：CE, RoHS
- Module Resolution：52*52
- Brightness：Above 4000CD,Sqm
- Gray Scale：16 Bit
- Viewing Angle：120 Degree
- Transport Package：Carton, Wooden Carton, Flight Case
- Specification：250x250mm
- Trademark：Seekstarled
- Origin：China
- HS Code：8528591090
- Production Capacity：1000 Sqm,Month
Description
Rental Full Color LED DisplayProduct Item Indoor P2.976 Indoor P3.91 Indoor P4.81 Outdoor P3.91 Outdoor P4.81 Pixel Pitch 2.976mm 3.91mm 4.81mm 3.91mm 4.81mm LED Type LED RGB 3in1 RGB 3in1 RGB 3in1 RGB 3in1 RGB 3in1 LED Life LED 100,000 hours 100,000 hours 100,000 hours 100,000 hours 100,000 hours Configuration SMD1515 SMD2121 SMD2121 SMD 1921 SMD 2727 Module Size 250 x 250 250 x 250 250 x 250 250 x 250 250 x 250 Module Resolution 84*84 64*64 52*52 64*64 52*52 Pixels Density (dots) 112896 65536 43264 65536 43264 Brightness (cd/sqm) 800-1000cd/sqm 800-1000cd/sqm 800-1000cd/sqm ≥5000 cd/sqm ≥4000 cd/sqm Viewing Distance ≥9m ≥9m 4-40m ≥8m ≥8m Viewing Angle 120°/120° 120°/120° 120°/120° 120°/120° 120°/120° Refresh Rate ≥1920HZ ≥1920HZ ≥1920HZ ≥1920HZ ≥1920HZ Gray Scale 16bit. Red, Green and Blue each 16K 16bit. Red, Green and Blue each 16K 16bit. Red, Green and Blue each 16K 16bit. Red, Green and Blue each 16K 16bit. Red, Green and Blue each 16K Color Temperature 3200K-9300K adjustable 3200K-9300K adjustable 3200K-9300K adjustable 3200K-9300K adjustable 3200K-9300K adjustable Scan Mode 1/28 scan 1/16 scan 1/13 scan 1/16 scan 1/9 scan Cabinet Material die-casting aluminum die-casting aluminum die-casting aluminum die-casting aluminum die-casting aluminum Cabinet Size (mm) 500x500 / 500x1000 500x500 / 500x1000 500x500 / 500x1000 500x500 / 500x1000 500x500 / 500x1000 Cabinet Weight(kg) 8kg / 14kg 8kg / 14kg 8kg / 14kg 8kg / 14kg 8kg / 14kg Max Consumption (W/sqm) 700 700 780 680 680 Ave Consumption (W/sqm) 260 260 270 270 270 Supply Voltage AC220V/50HZ; AC110V/60HZ AC220V/50HZ; AC110V/60HZ AC220V/50HZ; AC110V/60HZ AC220V/50HZ; AC110V/60HZ AC220V/50HZ; AC110V/60HZ Storage Temperature -20ºC~+60ºC -20ºC~+60ºC -20ºC~+60ºC -20ºC~+60ºC -20ºC~+60ºC Working Temperature -20ºC~+50ºC -20ºC~+50ºC -20ºC~+50ºC -20ºC~+50ºC -20ºC~+50ºC Operating Humidity 10%-80% 10%-80% 10%-80% 10%-80% 10%-80% IP Rating IP20 IP20 IP20 IP65 IP65 Display Capacity Text, Graph and Video Text, Graph and Video Text, Graph and Video Text, Graph and Video Text, Graph and Video Control System LINSN,Nova-star Colorlight (adjustable) LINSN,Nova-star Colorlight (adjustable) LINSN,Nova-star Colorlight (adjustable) LINSN,Nova-star Colorlight (adjustable) LINSN,Nova-star Colorlight (adjustable) Control Mode Synchronous Control Mode Synchronous Control Mode Synchronous Control Mode Synchronous Control Mode Synchronous Control Mode
Features:
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows. It is extremely easy to calculate the area of LED screen because it is consist of 500*500mm/500mm*1000mm cabinet. Jointed correctly, being installed & dismounted by one person without tool.
2. Nice appearance and simple structures. The appearance is very elegant, it looks very high end. Quality is very stable
3. Humanized operating interface with breakdown indicator lights, easy to maintain.
4. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image. 16 bit color, refresh rate over 1920HZ/S so the video or images on the LED screen are very vivid and fresh. People who see it will get shocked by this amazing viewing experience.
5. The side locks is spring locks, this is unique among all die-casting aluminum cabinets, especially popular in European market and North American market.
6. Due to the light weight and low power consumption, it can reduces the labor cost,operating cost and transportation cost
7. The same cabinet size can be compatible with different pixel pitches such as P3.91, P4.81 .If you want to update the product, you only need to change the module
Application:
