• Model NO.：CPL-4A
• Standard：Standard
• Certification：CE, ISO
• Condition：New
• Lifting Capacity：2000kg
• Lifting Height：1850mm
• Uper：1850mm
• Pit：1950mm
• Power：5.5kw, 380V
• Rise/Drop Time：1 Min
• Transport Package：Standard Exporting Package
• Specification：1100*950*950
• Trademark：Cherish
• Origin：China
• HS Code：84289020
• Production Capacity：1000sets,Per Month

Basic Info.

Model NO. CPL-4A Standard Standard Certification CE, ISO Condition New Lifting Capacity 2000kg Lifting Height 1850mm Uper 1850mm Pit 1950mm Power 5.5kw, 380V Rise/Drop Time 1 Min Transport Package Standard Exporting Package Specification 1100*950*950 Trademark Cherish Origin China HS Code 84289020 Production Capacity 1000sets/Per Month

Product Description

Main Features:

1. Residential and commercial buildings basement garage parking solution.
2. Galvanized platform with waving plate for better parking.
3. Dual master & slave hydraulic lifting cylinders direct drive.
4. Individual hydraulic power pack and control panel.
5. Pit and back wall needed for structure supporting.
6. 2000kg/2500kg capacity is available for both SUV and sedan.
7. Middle post sharing feature save cost and space.
8. Electric key switch for security and safety.
9. Automatic shut-off once operator releases the key switch.
10. Single & double stacker for your choice.

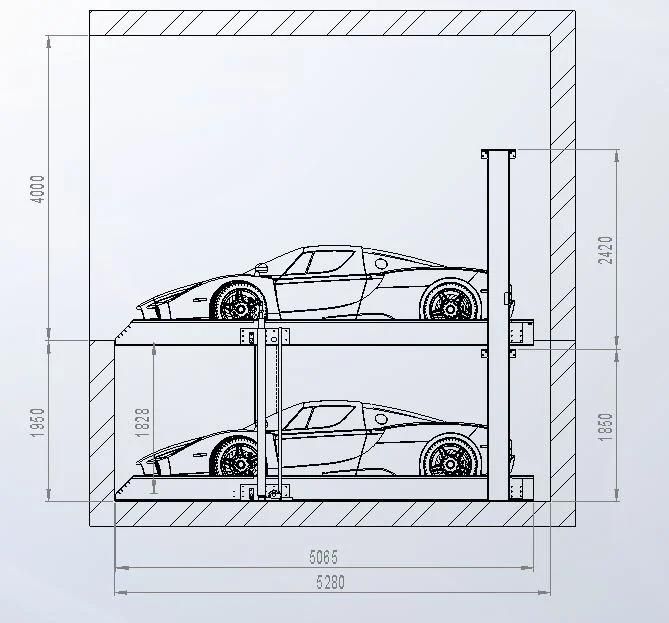

 Technical Parameter:

Model No.	Parking Vehicles	Lifting Capacity	Lifting Height	Upper	Pit	Rise/Drop Time	Power Supply
CPL-2A	2 cars	2000kgs/5000lbs	1850mm	1850mm	1950mm	60s	380V
CPL-4A	4 cars	2000kgs/5000lbs	1850mm	1850mm	1950mm	60s	380V

Customers:

Certificate:
Package & Delivery

FAQ:
Q1: Are you a manufacturer?
A: Yes, we have own factory and engineer .

Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q5.How long is the warranty period?
A:Steel structure 5 years,all spare parts 1 year.
