• Model NO.：X444ASK
• Origin：Huizhou, China

Basic Info.

Model NO. X444ASK Origin Huizhou, China

Product Description

Features:
duty cycle: 100% @ 100 psi
flow rate: 1.86 cfm @ 0 psi
max working pressure: 200 psi
volt: 12v
max amp draw: 23A

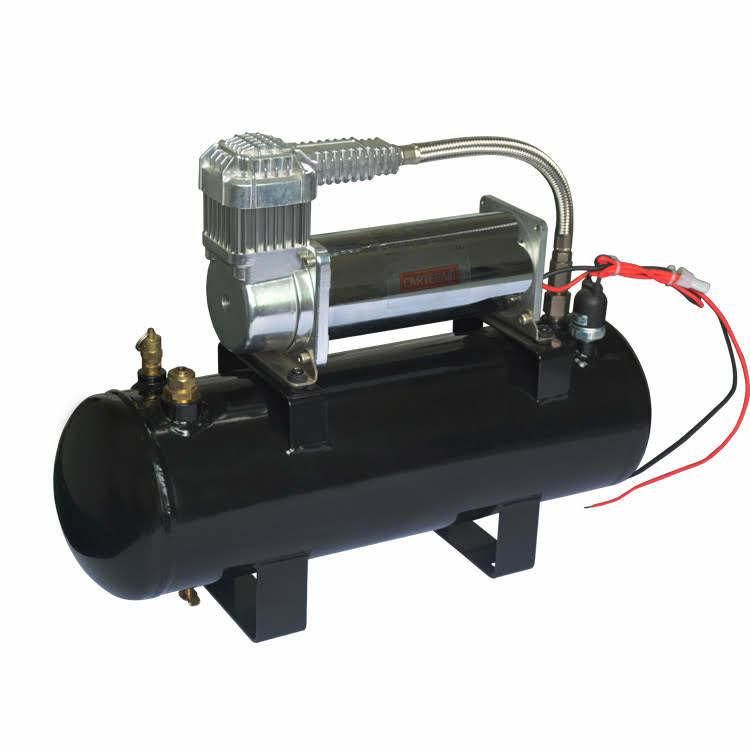

Parts Included:
2 gal air tank
1/2" npt port compression fitting for 3/8"Φ air line
pressure switch: 165 psi on / 200 psi off
safety valve: 250 psi
drain cock
1/4" npt stainless steel braided leader hose
with check valve

Standard Compressor Features:

• IP 67 Rated
• Gearless, direct-driven electric motors
• 12-volt and 24-volt motors
• Oil-less design requires no maintenance (besides filter inspection/replacement)
• High performance and highly reinforced PTFE piston ring
• Anodized piston cylinder for increased wear protection
• Precision, high speed, durable bearings for increased piston & motor life
• Sealed motor housing for moisture resistance
• Environmental seals where electrical connections enter motor housing
• Efficient, oversized heat sink head assembly for increased heat dissipation, duty cycle & performance
• High performance check valve to eliminate restart pressure on head and piston
• Direct or remote mount option air filter assembly
• Replacement air filter elements (filtration to 10 microns)
• Stainless steel braided leader hose (PTFE lined where applicable)
• Heavy duty mounting feet (omega and standard styles, as applicable)
• Reinforced vibration isolators for safe & quiet operation
• Mounting hardware (bolts, washers, locking washers, nuts)
• Thermal Overload Protection (T.O.P. equipped compressors only) to protect compressor from overheating during normal operational duty cycle
• Maximum operating temperature of 158° F
• Minimum operating temperature of -40° F (unless otherwise noted)
• Wire terminal ends to simplify installation (ring ground terminal, spade positive lead terminal)
