Bearing Price List 6202 6203 6204zz Deep Groove Ball Bearing for Motorcycle Parts
Hengtailong Plastic Net Co. Ltd- Contact Angle：0
- Aligning：Non-Aligning Bearing
- Separated：Unseparated
- Rows Number：Single
- Load Direction：Radial Bearing
- Material：Bearing Steel
Base Info
- Model NO.：6202
- Inner Diameter：17-110mm
- Accuracy Class：P4,P2
- Sealing Type：Sealed or Not
- Rolling Body：Ball Bearings
- The Number of Rows：Single
- Spherical：Non-Aligning Bearings
- Outer Dimension：35-280mm
- Transport Package：Cases and Pallets or as Customer′s Requirment
- Specification：high quality
- Trademark：ZYS
- Origin：Luoyang, Henan, China
- HS Code：8482102000
- Production Capacity：40000,Month
Description
Part No.Boundary dimensions (mm) Basic load ratings(Lbf) Weight(lb) d D B Dynamic(Cr) Static(Cor) 6000 10 26 8 1030 445 0.042 6001 12 28 8 1147 535 0.048 6002 15 32 9 1254 641 0.068 6003 17 35 10 1349 731 0.088 6004 20 42 12 2109 1129 0.150 6005 25 47 12 2248 1315 0.172 6006 30 55 13 2967 1866 0.242 6007 35 62 14 3642 2360 0.326 6008 40 68 15 3867 2653 0.407 6009 45 75 16 4721 3327 0.506 6010 50 80 16 4946 3642 0.568 6011 55 90 18 6789 4901 0.796 6012 60 95 18 7081 5440 0.847 6013 65 100 18 6857 5665 0.957 6014 70 110 20 8565 6947 1.324 6015 75 115 20 8902 7531 1.404 6016 80 125 22 10701 8947 1.870 6017 85 130 22 11128 9689 1.958 6018 90 140 24 13084 11173 2.552 6019 95 145 24 13578 12117 2.662 6020 100 150 24 13533 12185 2.750 6021 105 160 26 16254 14792 3.498 6022 110 170 28 18434 16411 4.312 6024 120 180 28 18659 17535 4.796 6026 130 200 33 23380 22481 7.326 6028 140 210 33 24279 24279 7.832 6030 150 225 35 27427 28101 9.636 With snap
ring groove With snap
ring d D B rsmin D2
(max) F max Cr Cor 635 ZZ 2RZ 2RS N NR 5 19 6 0.3 - - 2.34 0.95 0.0080 636 ZZ 2RZ 2RS N NR 6 22 7 0.3 - - 0.0134 637 ZZ 2RZ 2RS N NR 7 - - - - - - 638 ZZ 2RZ 2RS N NR 8 28 9 0.3 - - 0.0290 639 ZZ 2RZ 2RS N NR 9 - - - - - - 6301 ZZ 2RZ 2RS N NR 12 37 12 1 41.3 1.12 9.70 4.20 0.060 6302 ZZ 2RZ 2RS N NR 15 42 13 1 46.3 1.12 11.4 5.40 0.082 6303 ZZ 2RZ 2RS N NR 17 47 14 1 52.7 1.12 13.5 6.55 0.115 6304 ZZ 2RZ 2RS N NR 20 52 15 1.1 57.9 1.12 15.9 7.80 0.141 6305 ZZ 2RZ 2RS N NR 25 62 17 1.1 67.7 1.7 22.5 11.6 0.219 6306 ZZ 2RZ 2RS N NR 30 72 19 1.1 78.6 1.7 28.1 16.0 0.350 6307 ZZ 2RZ 2RS N NR 35 80 21 1.5 86.6 1.7 33.2 19.0 0.454 6308 ZZ 2RZ 2RS N NR 40 90 23 1.5 96.5 2.46 31.4 22.4 0.639 6309 ZZ 2RZ 2RS N NR 45 100 25 1.5 106.5 2.46 52.7 31.5 0.836 6310 ZZ 2RZ 2RS N NR 50 110 27 2 116.6 2.46 61.8 38.0 1.05 6311 ZZ 2RZ 2RS N NR 55 120 29 2 129.7 2.82 71.5 45.0 1.35 6312 ZZ 2RZ 2RS N NR 60 130 31 2.1 139.7 2.82 81.9 52.0 1.70 6313 ZZ 2RZ 2RS N NR 65 140 33 2.1 149.7 2.82 92.3 60.0 2.10 6314 ZZ 2RZ 2RS N NR 70 150 35 2.1 159.7 2.82 104 68.0 2.50 6315 ZZ 2RZ 2RS N NR 75 160 37 2.1 169.7 2.82 114 76.5 3.00 6316 ZZ 2RZ 2RS N NR 80 170 39 2.1 182.9 3.1 124 86.5 3.60 6317 ZZ 2RZ 2RS N NR 85 180 41 3 192.9 3.1 133 96.5 4.25 6318 ZZ 2RZ 2RS N NR 90 190 43 3 202.9 3.1 143 108 4.90 6319 ZZ 2RZ 2RS N NR 95 200 45 3 212.9 3.1 153 119 5.75 6320 ZZ 2RZ 2RS N NR 100 215 47 3 227.8 3.1 174 140 7.00 6321 ZZ 2RZ 2RS N NR 105 225 49 3 237 3.5 182 153 8.25 6322 ZZ 2RZ 2RS N NR 110 240 50 3 252 3.5 205 178 9.54 6324 ZZ 2RZ 2RS - -- 120 260 55 3 -- - 228 207 12.2 6326 ZZ 2RZ 2RS - -- 130 280 58 4 -- - 229 216 18.0 6328 ZZ 2RZ 2RS - -- 140 300 62 4 -- - 251 245 22.0 6330 ZZ 2RZ 2RS - -- 150 320 65 4 -- - 274 284 22.7 6332 ZZ 2RZ 2RS - -- 160 340 68 4 -- - 278 287 26.2 6334 ZZ 2RZ 2RS - -- 170 360 72 4 -- - 325 355 36.6 6336 ZZ 2RZ 2RS - -- 180 380 75 4 -- - 355 405 43.1 6338 ZZ 2RZ 2RS - -- 190 400 78 5 -- - 355 415 49.7 6340 ZZ 2RZ 2RS - -- 200 420 80 5 -- - 380 445 55.3 6344 ZZ 2RZ 2RS - -- 220 460 88 5 -- - 410 520 73.9 6348 ZZ 2RZ 2RS - -- 240 500 95 5 -- - 470 625 94.4 6352 ZZ 2RZ 2RS - -- 260 540 102 6 -- - 505 710 118 6356 ZZ 2RZ 2RS - -- 280 580 108 6 -- - 570 840 144

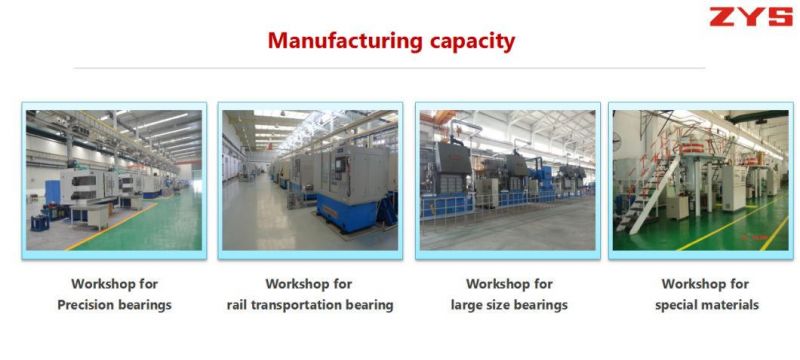

ZYS MANUFACTURING CAPACITY
ZYS Quality assurance

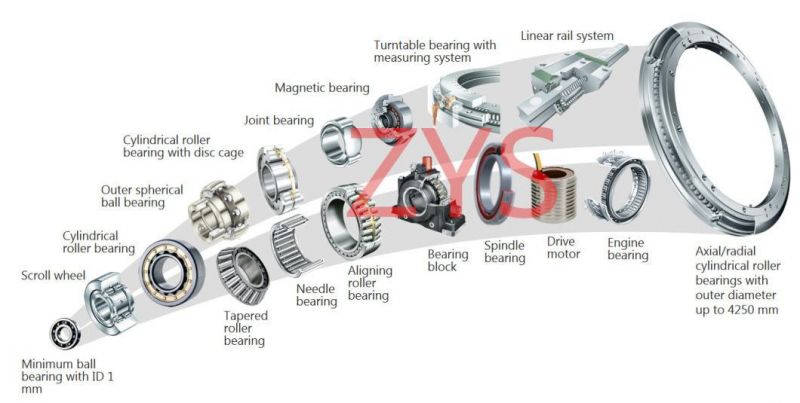

ZYS bearing products
ZYS Packing :
FAQ:
Q: Are you trading company or manufacturer?
A: ZYS is bearing manufacturer, the only first-class comprehensive research institute in China bearing industry.
Q: How do you control quality of bearing?
A: ZYS has established quality control systems for each kind of bearing and spindle. All products and services passed ISO9001-2008 Quality Certificate.
Q: What is the MOQ?
A: It depends on the bearing type. You can send inquiry or send e-mail for more information.
Q: How about the package?
A: Industrial packing in general condition (Plastic tube+ carton+ pallet). Accept design package when OEM.
Q: How long is the delivery time?
A: It will take about 10 to 40 days, depends on the model and quantity.
Q: How about the shipping?
A: We can arrange the shipment or you may have the forwarder.
Q: Is sample avaiable?
A: Yes, sample order is acceptable.
Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable. We can design the bearing with your requirements and use your own LOGO and package design.
