Rib Belt Replace Dayco Automotive
Dongguan Xiechuang Enterprise Co., Ltd.- Standard or Nonstandard：Standard
- Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Electric Cars, Motorcycle, Food Machinery, Marine, Mining Equipment, Agricultural Machinery, Grub Industrial , Infrastructure Industrial etc.
- Feature：Anti-Static, Oil-Resistant, Cold-Resistant, Corrosion-Resistant, Heat-Resistant, Skid-Resistance, Wear-Resistant, Acid-Resistant, High Temperature-Resistance, Fasten Fitting
- Tensile Strength：Strong
- Material：High Modulus Cord and Neoprene Rubber of Special C
- Type：Banded Belt
Base Info
- Transport Package：Cartons
- Specification：65*37*26
- Trademark：OFT
- Origin：China
- HS Code：40103900
Description
Type
Top Width for 1 rib
Thickness
Angle
Pitch Length between belts
3V
0.38" (9.5mm)
0.39" (10.0mm)
40°
0.41" (10.3mm)
5V
0.62" (15.9mm)
0.61" (15.5mm)
40°
0.69" (17.5mm)
8V
1.0" (25.4mm)
0.98" (25.0mm)
40°
1.13" (28.6mm)

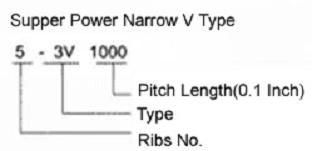

Dimension Marks
Note: We can offer other dimension according to your requests.
