• Model NO.：MC
• Type：Circular Gear
• Input Power: 7.05kw-1066kw：Output Speed:15.5-267.1rpm
• Output Torque: 8000n.M-65000n.M：Ratio:7.1-112
• Stage: 2-3 Stage：Color: Blue or Customized
• Housing：Models:Total 8 Model Sizes: Mc02 ~ Mc09
• Material：Cast Iron
• Manipulate Way：Forced Manipulation
• Changes Way：Stepped
• Manufacturing Method：Forging Gear
• Toothed Portion Shape：Helical
• Gear Material：20crmnti
• Color：Customer Request
• Mount Position：Horizontal , Vertical Mounted
• Input Form：Solid Shaft Input
• Output Form：Solid Shaft Hollow Shaft
• Heat Treatment：Quenching
• Transport Package：Export Standard Package
• Specification：CE; SGS; ISO
• Trademark：AOKMAN DRIVE
• Origin：China
• HS Code：848340900
• Production Capacity：8000

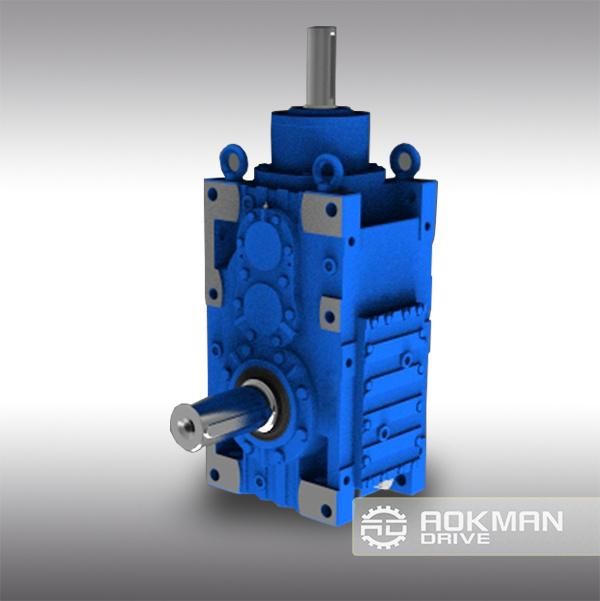

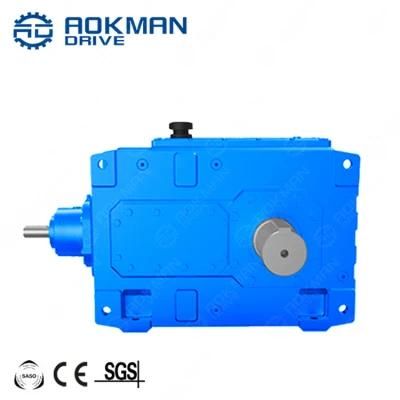

Detailed Photos

Components:
1. Housing:
Casting Iron Box
2. Gears:
Hardened Helical Gears (MC.H Series Parallel Shaft Gearbox)
Hardened Helical Bevel Gears (MC.B Series Right Angle Gearbox)
3. Shafts:
Parallel Shafts (MC.H Series)
Orthogonal Shafts (MC.B Series)
Output Shaft: Solid Shaft, Hollow Shaft
4. Modular Accessories:
Shrink Disk, Mounting Flange, Motor Flange, Cooling Fan, Torque Arm, Double Input Shaft

Models:
Total 8 Model Sizes: MC02 ~ MC09

Features:
1. Optional mounted by any one side of six sides.
2. Compact structure, light weight.
3. Rigid welded box structure, heavy duty and high load capacity.
4. Modular scheme and design for special conditions, adapting to the diverse needs.
5. 2 stage or 3 stage drive gearbox.

Lubrication:
Selecting the appropriate lubrication method according to the lubricating oil level.
Lubrication method:
Splash lubrication - Low oil level (Horizontal Mounting)
Immersion lubrication - High oil level (Vertical Mounting, Upright Mounting)
