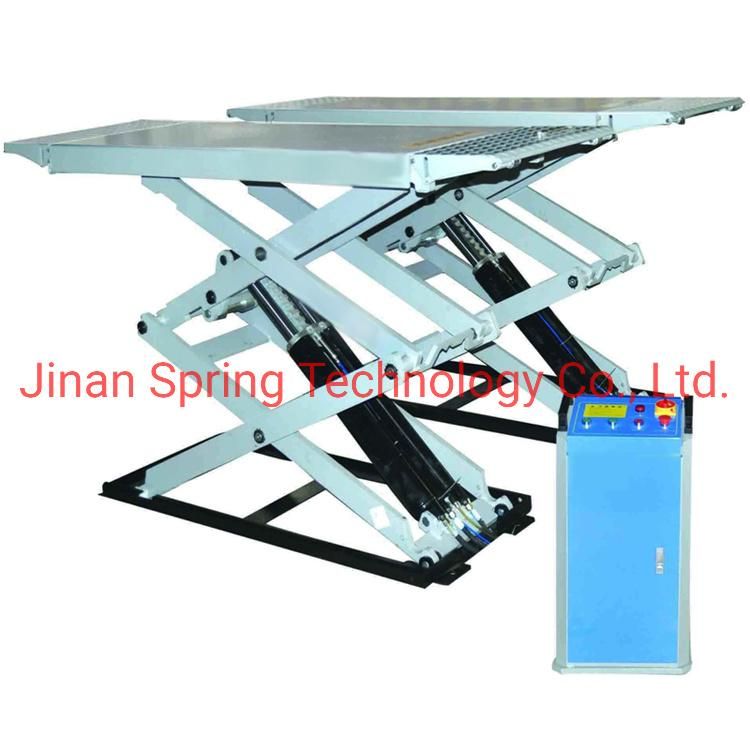

Ultra Thin Scissor Car Lift with 3t Load and 1900mm Height Sp-CB3000
Guangzhou Haojing Glassware Co., Ltd.- Type：Double Cylinder Hydraulic Lift
- Lifting Capacity：3T
- Driving Type：Hydraulic
- Certification：CE
- Driving Motor Number of Mechanical Lift：1
- Double Cylinder Lift Type：Thin Plate Type
Base Info
- Shearing Lift Type：Ultrathin Type
- Condition：New
- Brand：Jnspring
- Design：Scissor
- Specification：1cube
- Trademark：JNSPRING
- Origin：Shangdong
- Production Capacity：50,Month
Description
Basic Info.
Shearing Lift Type Ultrathin Type Condition New Brand Jnspring Design Scissor Specification 1cube Trademark JNSPRING Origin Shangdong Production Capacity 50/MonthProduct Description
Advantage

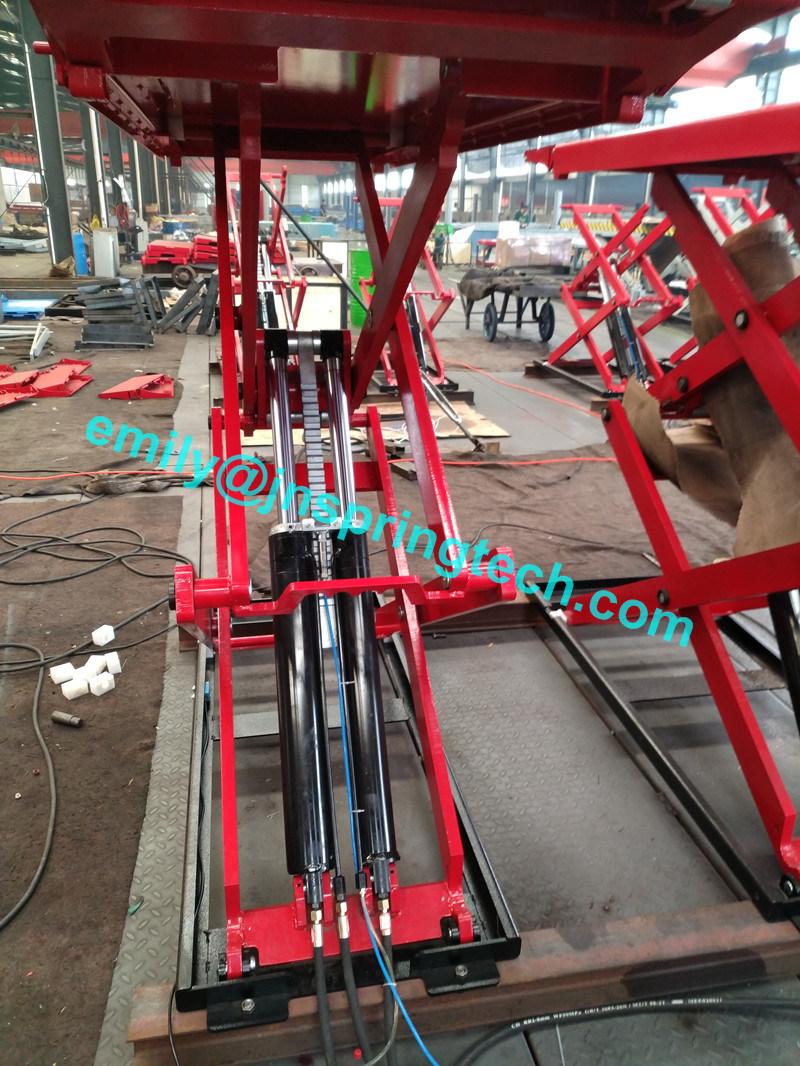

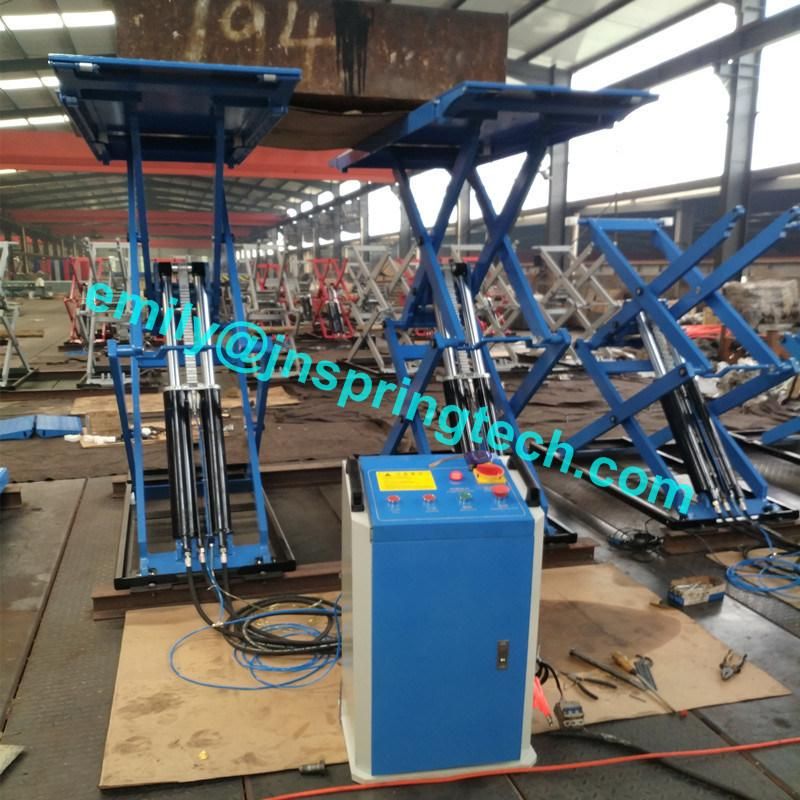

On ground scissor car lift with load capacity 3000kg
1.Above ground installation, more convenient.
2.Extensible platform design.
3.Pneumatic lock release ,considerably reduce the noise when the machine running.
4.Dual cylinder design ,easy to debug.
5.24V low voltage control system.
6.Dynamic test :115% of the rated capacity. Static test:150% of the rated capacity.
7.CE Certified

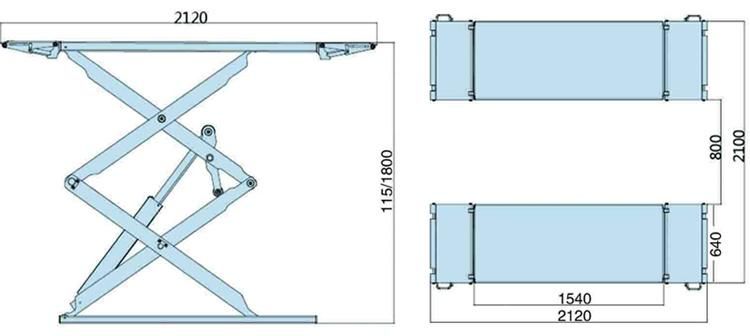

Technical Parameters
1. Lifting capacity: 3000Kg
2. Lifting Height: 1850mm
3. Platform Length: 1540mm-2120mm
4.Total width: 2080mm
5. Min Height: 110mm
6. Single Platform Width: 640mm
7. Space Between Platforms: 800mm
8. Lifting Time: 40s (Adjustable)
9. Lowering Time: 30s (Adjustable)
10. Noise: <70dB
11. Voltage: 110V/220V/380V/415V, 1ph//2ph/3ph
12. Motor power: 3Kw
product details

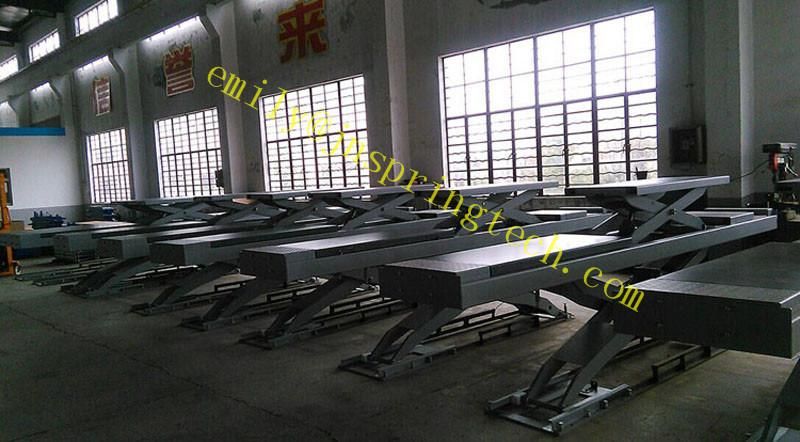

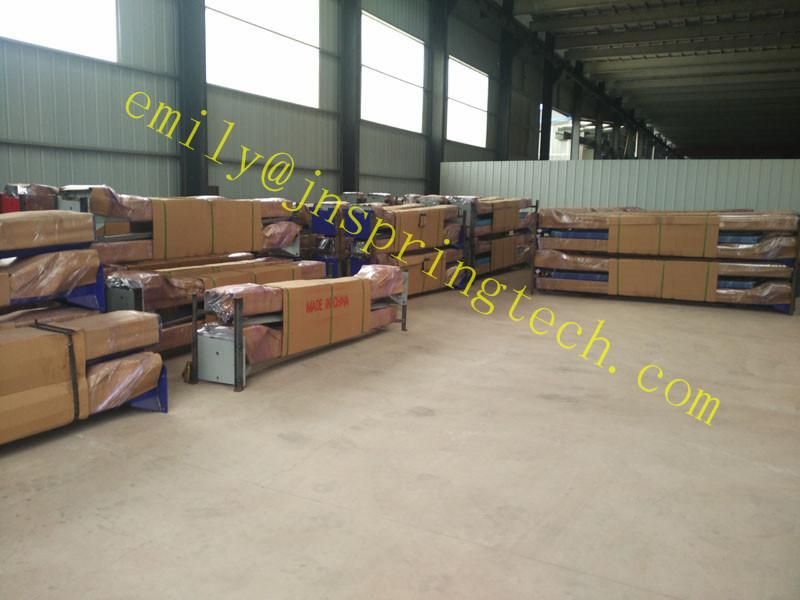

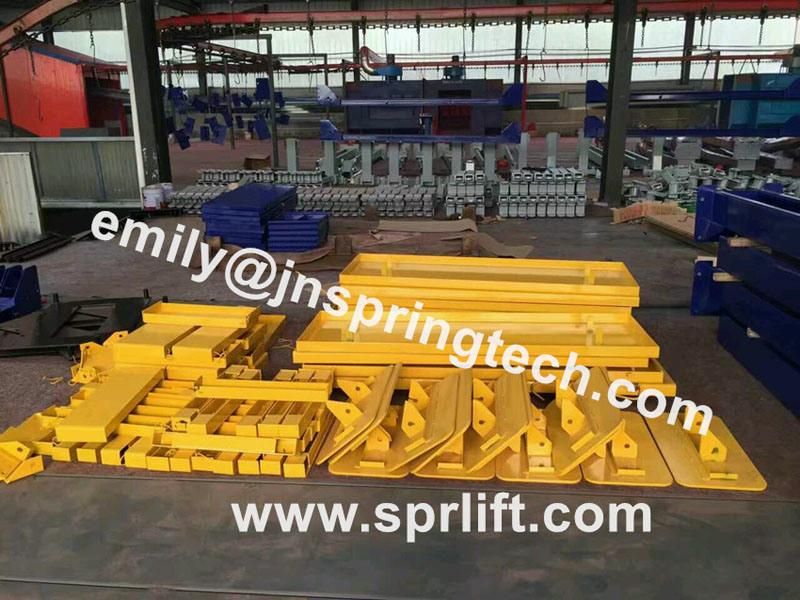

Large-scale production

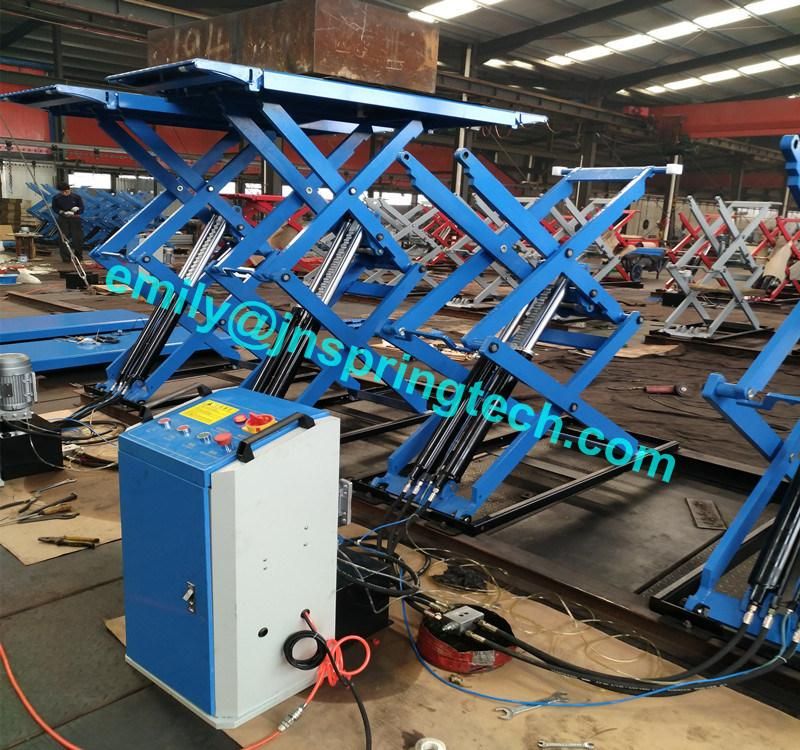

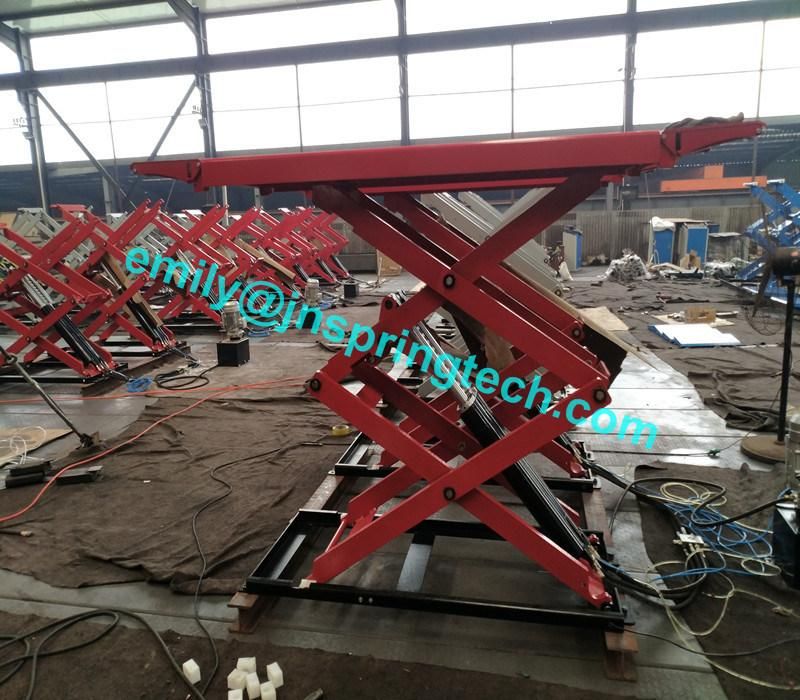

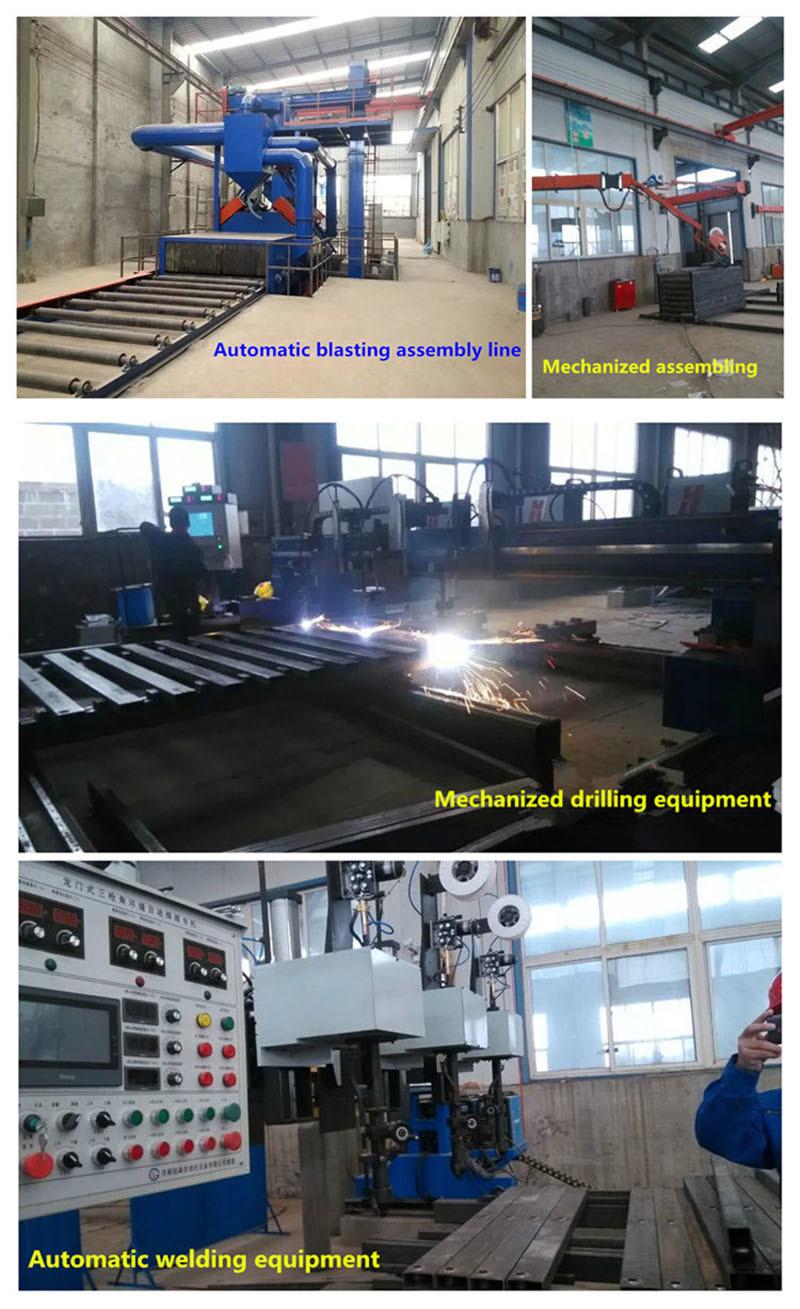

Automated production workshop
