• Model NO.：P6
• Pixel Density：27777 DOT,M2
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, FCC
• Cabinet Size：960*960mm
• LED Lamp：Nation Star ,Epistar ,Kinglight
• Color Temperature：6500-7000K
• IC：Mbi 5124,Mbi5153 IC
• Controller：Nova Star ,Linsn ,Colorlight ,Listen
• Brightness：5500-7000CD,M2
• Service Life：96360h
• Use Voltage：AC 110-220V
• Warranty：2-5 Years
• Maximum Power Consumption：800W,M2
• Module Size：192*192mm
• Best Viewing Distance：6-50m
• Cabinet Material：Die-Casting Aluminum
• Maintenance：Front,Back
• Refresh Rate：1920Hz,3840Hz
• Transport Package：Wooden Case ,Fly Case ,Carton
• Specification：192mm*192mm
• Trademark：Honghui
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：3500 Sqm ,Month

Basic Info.

Model NO. P6 Pixel Density 27777 DOT/M2 Scanning Mode 1/8 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, CCC, FCC Cabinet Size 960*960mm LED Lamp Nation Star /Epistar /Kinglight Color Temperature 6500-7000K IC Mbi 5124/Mbi5153 IC Controller Nova Star /Linsn /Colorlight /Listen Brightness 5500-7000CD/M2 Service Life 96360h Use Voltage AC 110-220V Warranty 2-5 Years Maximum Power Consumption 800W/M2 Module Size 192*192mm Best Viewing Distance 6-50m Cabinet Material Die-Casting Aluminum Maintenance Front/Back Refresh Rate 1920Hz/3840Hz Transport Package Wooden Case /Fly Case /Carton Specification 192mm*192mm Trademark Honghui Origin Shenzhen, China HS Code 8528591090 Production Capacity 3500 Sqm /Month

Product Description

Outdoor Rental P6  LED Billboard for Advertising Display



1.Products Specification

1	HD small pixel LED display	P1.5625 /  P1.667/  P1.923/  P2/P2.5
2	Hot rental LED display	P3 / P3.91 / P4 / P4.81 / P5/ P5.95
3	Outdoor fixed LED display	P4/P5 /P6 /P8 /P10 /P16 /P20
4	Controller System	Nova Star / LINSN /Colorlight /Listen
5	LED Lamp	Nation Star /Epistar /Kinglight
6	IC	MBI 5124/ MBI 5153
7	Pixel Pitch	6 mm
8	Power supply	Meanwell / G-energy / CL/ Youyi
9	IP Grade	front IP 65 ,back IP 54
10	Cabinet kind	Die-casting Aluminum
11	Cabinet Size	576*576mm/ 960mm*960mm
12	Screen Weight(KG)	40kg /m2
13	Packaging dimension	up to cabinet size
14	Pixel density	P6 :27777 dots/m2   P8 : 15625 dots/m2
15	Color temperature	6000K--8000K
16	Viewing angle	H:140;V:140
17	Defect Rate	≤0.1‰
18	Average power/m2	400W/m2
19	Maximal power/m2	800W/m2
20	Brightness adjusted	256 grade by auto-optic/color &8 grade by hand
21	Input signal	RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc
22	Life-span	96360 hours
23	Frame frequency	50/ 60 Hz
24	Refresh rate	1920Hz/ 3840Hz
25	Signal Input(with video processor)	HDMI, DVI, VGA, RF, S-Video, RGB,  RGBHV, YUV, YC&Composition, etc.
26	Control Distance	120 m (no repeating); Optical fiber  transmission: 0.5km- 10km
27	Systems Operating Platform	Windows XP, Win 7, Win8, Win8.1, Win10

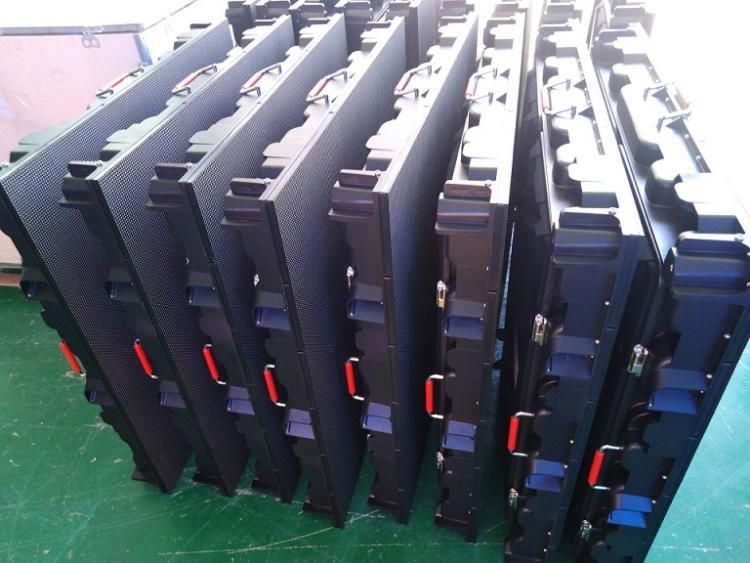

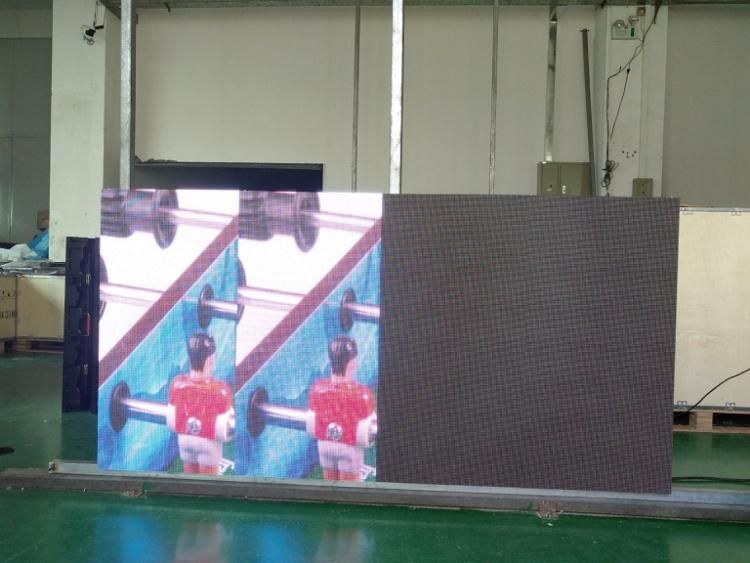

2.Product Details :

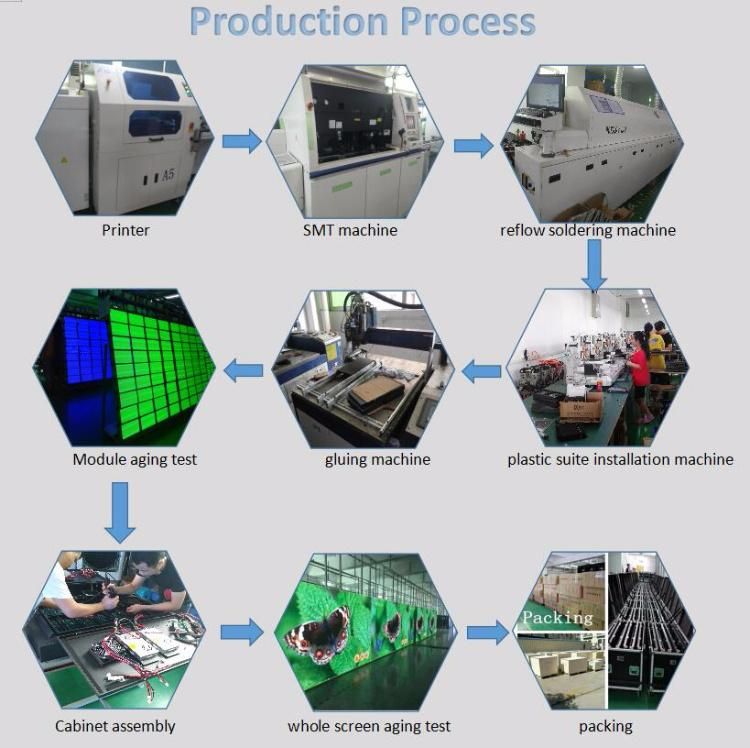

3. Production process

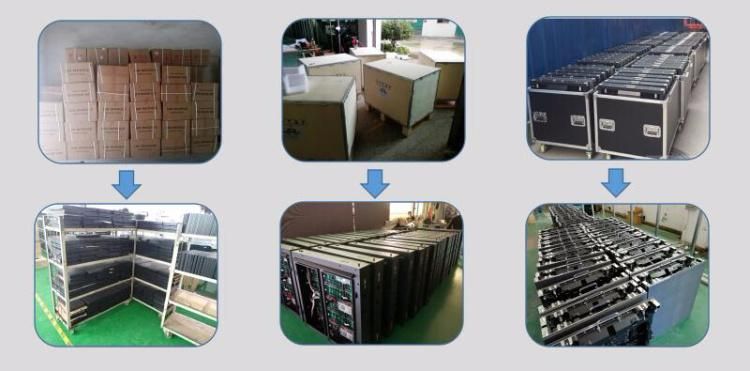

4. Package

Carton	Indoor or outdoor led display module
Wooden case	Indoor or outdoor fixed led display cabinet
Flight case	Indoor or outdoor rental led display cabinet

5.Features and advantages

1. High refresh rate: With NOVA STAR  control system, no scanning line when photographed 2. High gray level: 256 RGB  each ,display 16.7M colors ,vivid and perfect video effect                            3.High resolution: The most apparent features of the new generation of LED display                              4.Good color uniformity: With brand Lamp  Nation Star and high refresh MBI5124 IC.                                 5. High Brightness: 6000-8000 cd/m2 ,brightness automatically adjusted  6. High Quality: CE,  RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing  time             7. Long life span: over100,000hours, warranty from 2 to 5 years.



1. Price : We can give you the most satisfying price, cause we signed long time VIP Cooperation Contract with raw material suppliers since we step into led industry. Once the market change ,we will flexibly adjust the price and timely notify you about our update price. YOU WANT = WE DO. First time trial order will let you strongly shake hands with us. We warmly welcome any kind quality inspection process from your team. 2. Quality : Serious 24 hours led module testing time and 72 hours led display aging time. Before shipping and within the warranty time, our team will track the goods situation to satisfy your demand. 3. Production: Support Any Kind Special Customized Design. YOU NEED =WE DESIGN. We design exactly the same material you mentioned with our team in the sales contract and business negotiation process. We are direct factory, if your led project time is definitely fixed, without any change, we will arrange your order firstly to catch up with your time. MEET YOUR TIME = SUPPORT OUR TEAM.

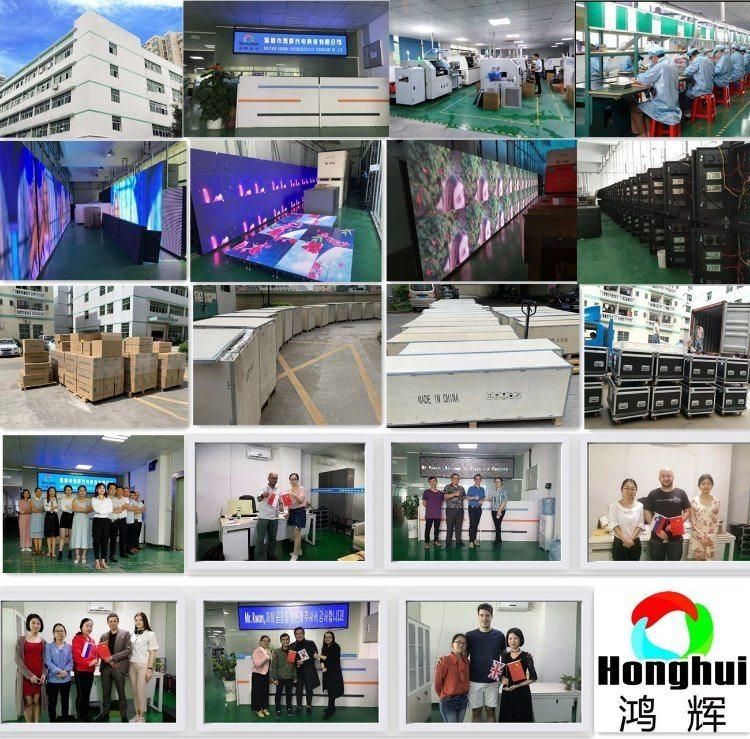

6.Our Factory and Our Service

A	96 Hours Serious Testing Time
B	72 Hours Display Testing Time
C	24 Hours Module Testing Time
D	24 Hours After-sales online Service
E	12 Hours LED Inquiry Response Time
F	8 years Professional LED display factory
G	5 years Excellent Domestic Big Government LED Designer
H	3 years Expanding International Trade Experience

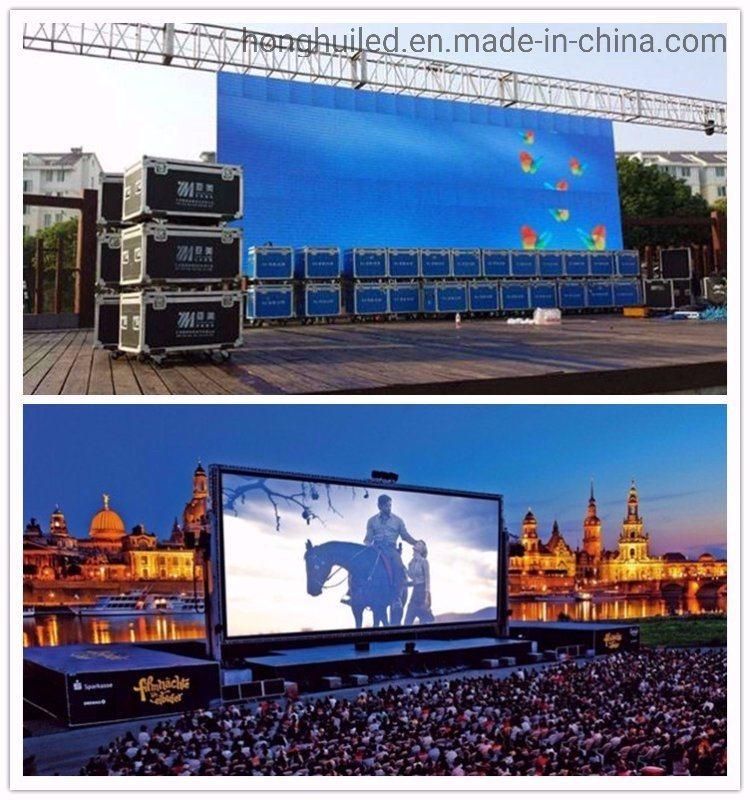

7. Application


8. FAQ

Question 1: How can I trust your HONGHUI LED factory ?

Answer : We specialized in led since 2009, it is over 8 years. In the past 8 years, we develop so well. Tomorrow and future, we will largely expand our LED market, you will see it . Welcome to try our LED sample quality . We do have100% confidence in our LED product.

Question 2: What is the warranty of your led display?

Answer: We have warranty of 2-5 years.

Q3:Is it easy to install this led display ?

Answer : Installation manual book or video will be provided to you. If you still have problem on it, we will arrange professional engineer to guide you remotely or to your place help you.

Q4: What's your payment term? How long is your delivery time ?

Answer: We accept T/T, ALIBABA Trade Assurance, Western Union and Cash. At least 30-50 % deposit in advance, and the balance should be paid before delivery.
