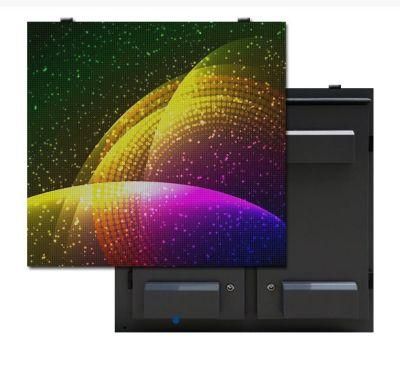

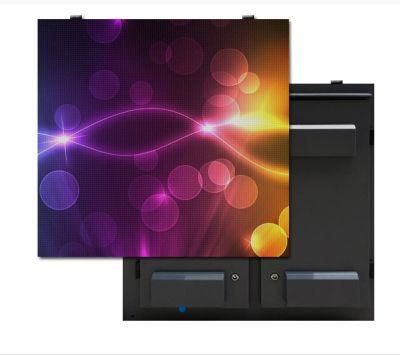

Indoor P7.62 Full Color LED Display Module Screen Signage for Advertising
Shenzhen Liked Development Co., Ltd- Tube Chip Color：Full Color
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Pixel Pitch：7.62mm
- Pixel Configuration：1r1g1b,SMD3528 Lamp
- Pixel Density：17222dots,M2
- Scanning Mode：1,8 Scan
Base Info
- Model NO.：p7.62-8s led display
- System Operating Platform：Windows XP , Windows 7 , Windows 8 ,8.1 , Windows
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide
- IP Rating：IP43
- Certification：CE, RoHS, CCC
- Product Name：P7.62-8s Indoor LED Display
- Driver IC：Mbi5124
- Bightness CD/Sqm：1500
- Grey Scale：65536 Degree
- Life Time：More 100, 000 Hours (80%)
- Mtbf：More 50, 000 Hours
- Operating Temperature：-30~-60t
- Humidity：10%-95%
- Color Temperature：6500K-9500K
- Warranty：Three Years Warranty
- Transport Package：Wooden Case Flight Case and Carton
- Specification：244*244mm
- Trademark：hongking
- Origin：Shenzhen China
- HS Code：8528591090
- Production Capacity：5000 Sqm,Year
Description
Basic Info.
Model NO. p7.62-8s led display System Operating Platform Windows XP / Windows 7 / Windows 8 /8.1 / Windows Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, CCC Product Name P7.62-8s Indoor LED Display Driver IC Mbi5124 Bightness CD/Sqm 1500 Grey Scale 65536 Degree Life Time More 100, 000 Hours (80%) Mtbf More 50, 000 Hours Operating Temperature -30~-60t Humidity 10%-95% Color Temperature 6500K-9500K Warranty Three Years Warranty Transport Package Wooden Case Flight Case and Carton Specification 244*244mm Trademark hongking Origin Shenzhen China HS Code 8528591090 Production Capacity 5000 Sqm/YearProduct Description
Indoor P7.62 Full Color LED Display Module screen Signage for Advertising1.Most of our product use material as follow:
MBI5124IC Driver IC
g-energy power supply
pcb 1.6mm ,mask and base
All our product have three years warranty.
thank you for your time. Please contact me to know more.
- Contact person : Phebe
- Mobile phone: 00 86 177 2460 2807
Product descripition:
| NO.: | Product name | P7.62 led display |
| 1 | Pixel Pitch(mm) | 7.62mm |
| 2 | Pixel configuration | 1R1G1B/SMD 3528 lamp |
| 3 | Pixel density | 17222dots/m2 |
| 4 | Brightness | 1500cd/m2 |
| 5 | Module size(W*H) | 244*244mm |
| 6 | Module Resolution (W*H) | 32 dots x 32dots |
| 7 | Module weight | 500g |

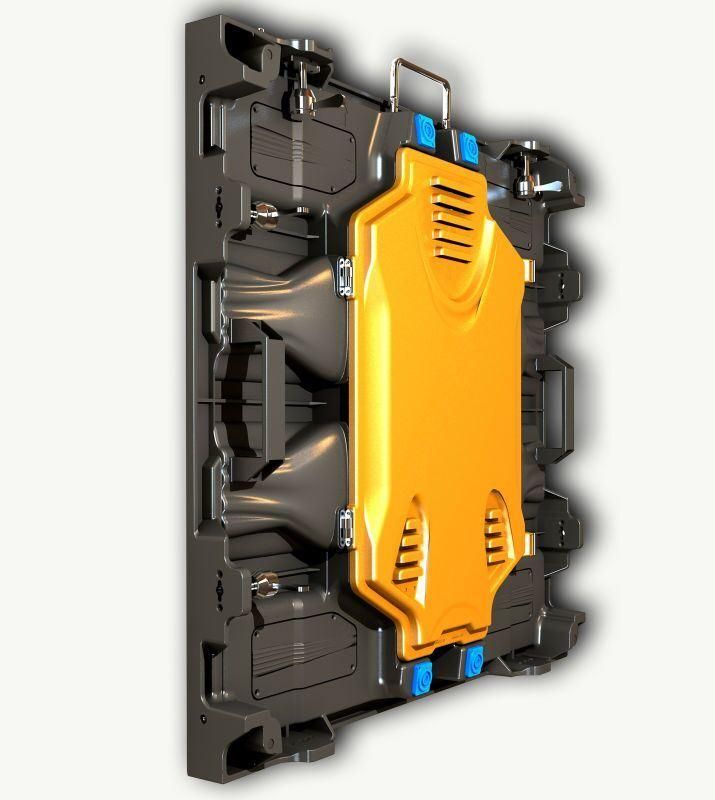

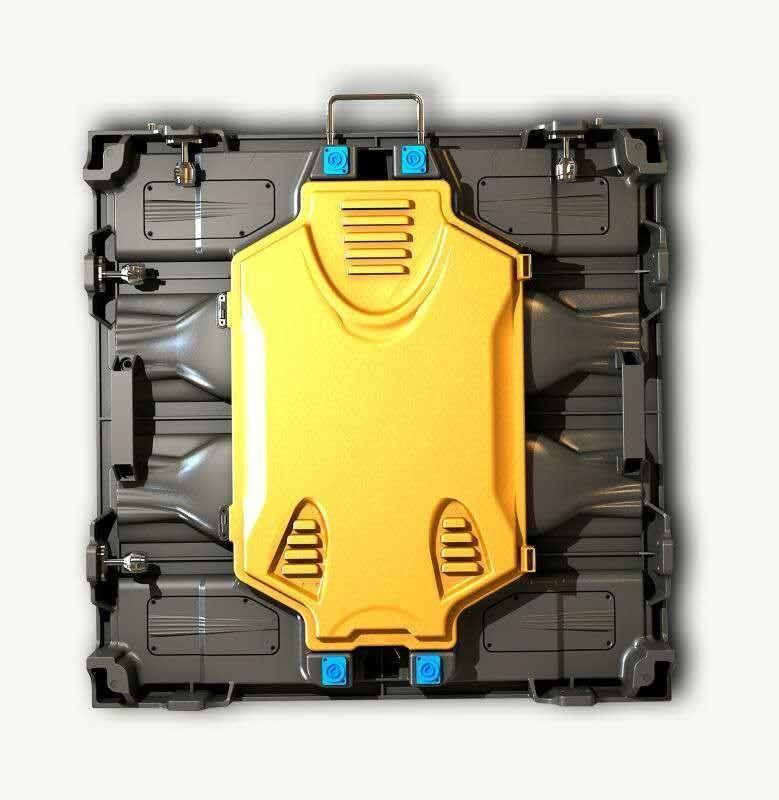

| 8 | Cabinet size (W*H) | 732mm×732mm |
| 9 | Drive IC | MBI5124 |
| 10 | Drive mode | 1/8 scan |
| 11 | Viewing Angle(V/H) | 140 ºC |
| 12 | Grey Scale | 65536 degree |
| 13 | Life time | >100,000 Hours (50%) |
| 14 | MTBF | >50,000 Hours |
| 15 | Operating Voltage | AC110V/220V±10% |
| 17 | Screen Power Consumption | Max: 540w/m2; Average:180w/m2 |
| 18 | Input Power Frequency | 50/60Hz |
| 19 | Operating temperature | -30--60ºC |
| 20 | Humidity | 10%-95% |
| 21 | Refresh Rate | ≥1920HZ |
| 22 | Control Method | Synchronized with computer monitor |
| 23 | Color Temperature | 6500K-9500K |
| 24 | LED control system | LINSN,Nova-star,Colorlight is selectable |
| 25 | Control Distance | 100 m (no repeating); Optical fiber transmission: 500m- 15km |
| 26 | Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
| 27 | Systems Operating Platform | Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress.
FAQ
Q1: What's the pixel pitch for choice?
A1:
indoor series: P3.9, P4.8
indoor series: P4.46, P6.25
indoor series: P5, P7.5, P9.375
outdoor series: P4.8
outdoor series: P4.8, P5.9, P6.9, P7.8, P8.9
outdoor series: P7.5, P9.375, P15
Q2: Where is it used for?

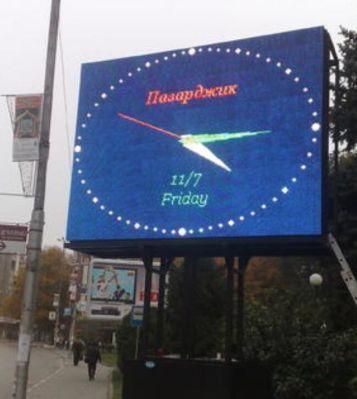

A2: performance shows, sports activities, advertising, information publishing, celebrating
activities, hotel entertainment ect
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with several different controlling systems,such
as Nova, Mooncell,linsn and so on.
Q4: Why choice your company?
A4: Founded in 2001,Excellent quality guarantee,creative products
Products has showed on Sochi Winter Games, Brazil World Cup, Incheon Asia
Games,Expo Milano 2015 and so on.
Q5: What after service can provide?
A5: One year warranty
24h online technical supports
Back-visiting customer for each yaer
Sending technical personnel to the scene in customers significant activities
