• Model NO.：LM5050-WN30-WW-HL
• LEDs Suppliers：Honglitronic,Osram,Samsung
• LEDs material：packaged by 99.99% pure gold wire
• LED BINs：3-Step,5-Step, same BIN for each order
• LED Type：Sanan(Epistar optional)
• PCB Width：10mm
• PCB material：Double-sided coated pure copper
• PCB thickness：2Oz (front 35um,back 35um)
• Adhesive Tape：9495 3000LSE 3M tape
• IP Grade：IP20,IP60,IP65,IP68
• Transport Package：5m,Roll with Static-Resistant Bag
• Specification：CE, RoHS, FCC
• Trademark：LEOMAY
• Origin：Guangdong, China
• HS Code：9405409000
• Production Capacity：10000 Meter,Day

Basic Info.

Model NO. LM5050-WN30-WW-HL LEDs Suppliers Honglitronic/Osram/Samsung LEDs material packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order LED Type Sanan(Epistar optional) PCB Width 10mm PCB material Double-sided coated pure copper PCB thickness 2Oz (front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package 5m/Roll with Static-Resistant Bag Specification CE, RoHS, FCC Trademark LEOMAY Origin Guangdong, China HS Code 9405409000 Production Capacity 10000 Meter/Day

Product Description

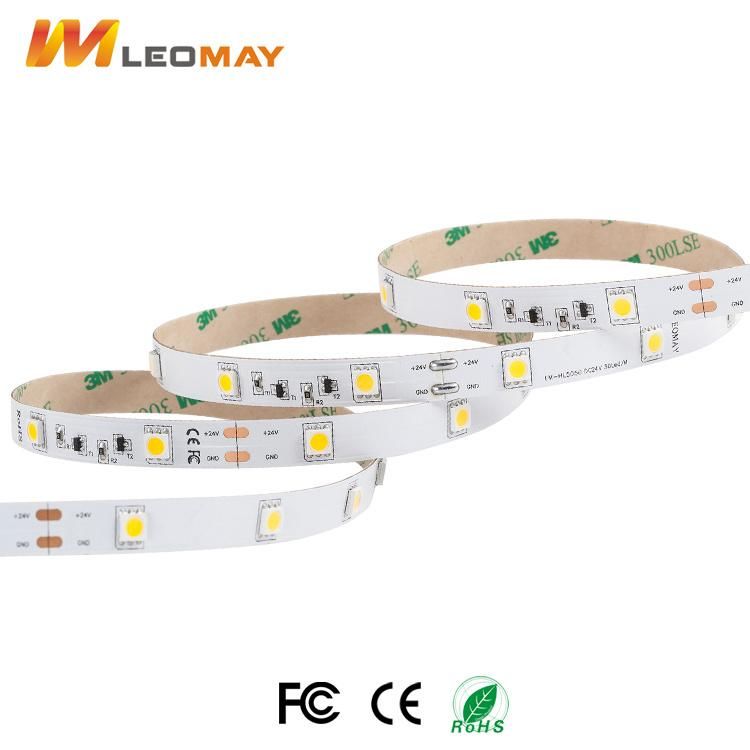

LM5050-WN30-24V LED Strips Constant Current




Specification:

Model NO	LM5050-WN30-HL-12V-10MM
Product Name	SMD5050 30LEDS/M Constant Current LED strips
PCB Width	10MM
LED Qty/m	30leds/m 5050
PCB Materials	2Oz Double-sided coated pure copper(can print your logo on PCB)
Voltage(V)	12V DC
Rated Power(W)	6.6W/M,33W/5M
Luminous(lm/m)	840lm/m
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120
Product Size(mm)	10*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	3 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes

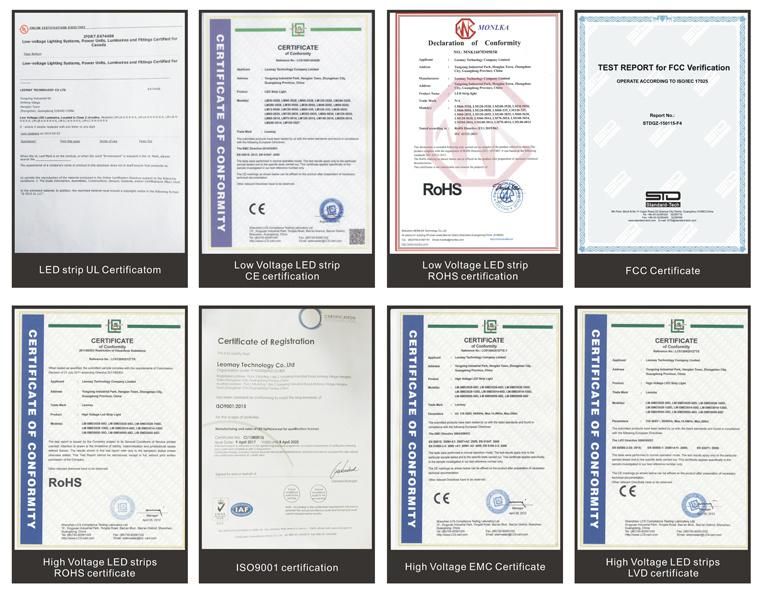

Certificate	UL,CE,Rohs,FCC.
Warranty	3 Years

Features:
Super brightness, high intensity and reliability.
Low power consumption.
Long life span over 50, 000 hours.
Fast and simple installation with adhesive back tape
Low maintenance.
Real 3M adhesive tape
IP Rate: IP 20

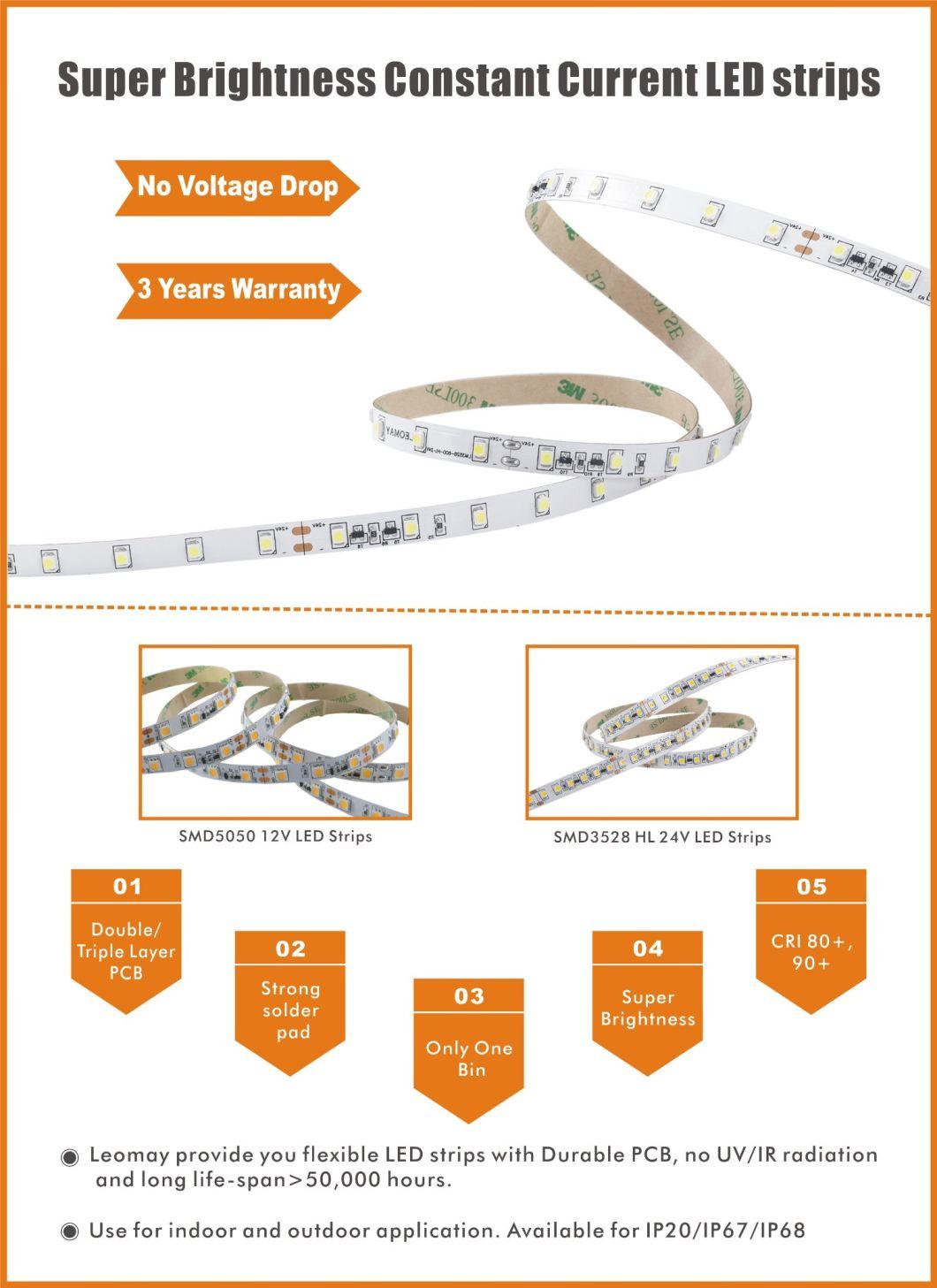

Constant light with advantages:
1 High brightness consistency.

2 Extend the LED lights with connection length.

3 Extend lamp with life.

4 Allows the input voltage error of 20% -30%, constant current output error of ± 5%

5 Reduce the number of power use, reduce project costs, installation more convenient.

Application:
Widely used for Exterior & Interior decorations such as home, hotel, clubs, shopping malls, bars etc...
Widely used for automobile and bicycle decoration, border or contour lighting etc...
Popularly applied in backlighting, concealed lighting, channel letter lighting, advertisement sign lighting and emergency lighting etc. Decorative lights for party, event, shows, exhibitions etc...


Model	LED QTY	Volt	Power	Lumen/m	CRI	PCB Width	IP Rate	Color
LM5050-WN30-HL	30leds/m	12V/24v	7.2w/m	600lm/m	80	10mm	IP20/65/67/68	W/WW/R/Y/G/B
LM5050-WN60-HL	60leds/m	12V/24v	14.4w/m	1200lm/m	80	10mm	IP20/65/67/68	W/WW/R/Y/G/B
LM5050-WN120	120leds/m	12V/24v	24w/m	2400lm/m	80	18mm	IP20/65/67/68	W/WW/R/Y/G/B
LM2835-WN120	120leds/m	24V	24w/m	2880lm/m	80	10mm	IP20/65/67/68	W/WW/R/Y/G/B
LM2835-WN240	240leds/m	24V	48w/m	5660lm/m	80	12mm	IP20/65/67/68	W/WW/R/Y/G/B

Frequently Asked Questions:

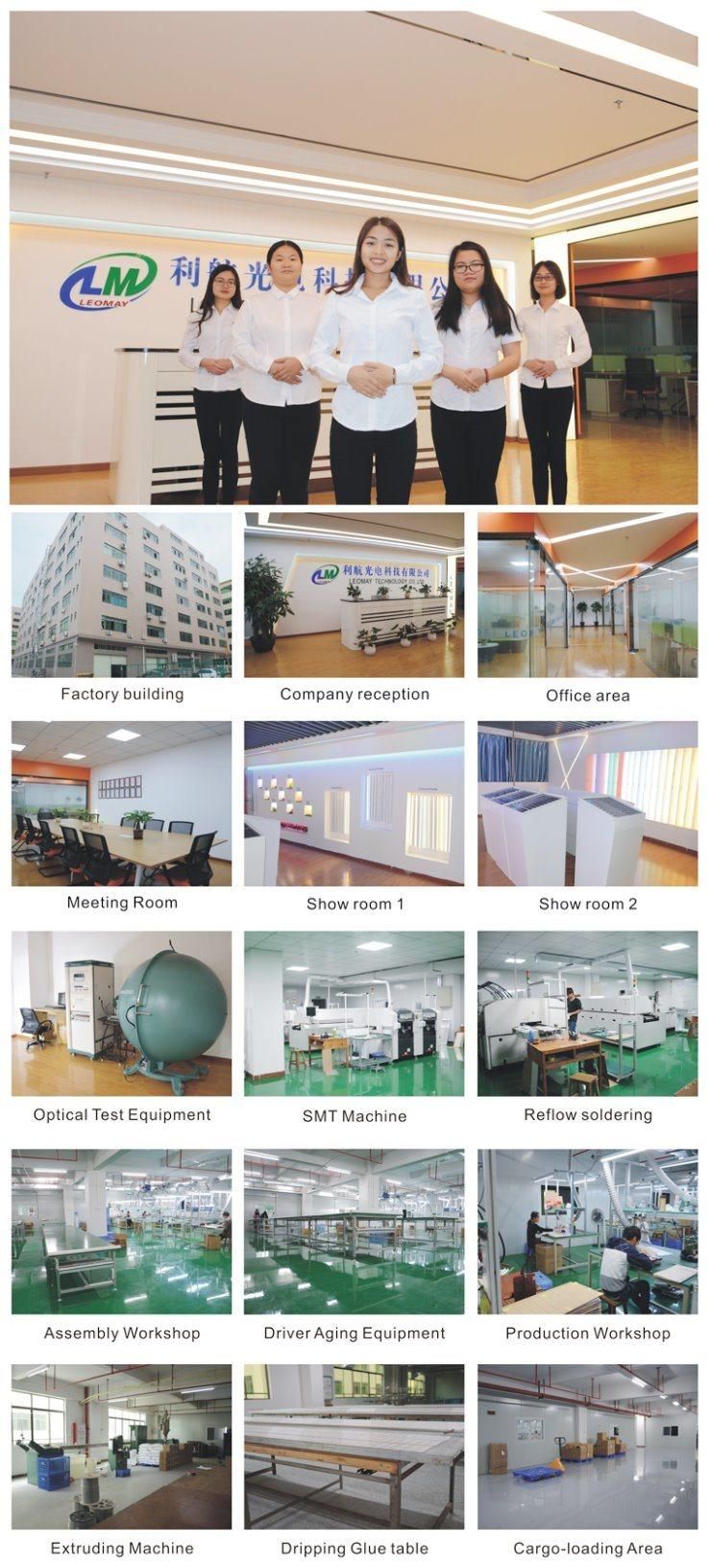

Q: Are you a factory?
A: Yes, we are LED lights manufacturer in Zhongshan, China.

Q: Can I have samples to test?
A: Yes, sample test is available and welcome.

Q: Can our logo or a simple parameter printed on the label of the led flexible strip?
A: Sure, if you like, we can print for you. Just telling us your requirements.

Q: Can you make the lamps using other brand led chip, e.g. CREE, OSRAM?
A: Yes, it is ok for other brand chips, we can produce the products according to your demands.

Q: What's the payment method you accept?
A: Usually we take T/T(bank wire transfer). You can also pay by Western Union.

Q: What is Delivery Time?
A: 5~7 days for normal orders; fast shipping for exact delivery time needs to discuss according to your order list; We keep our regular products in stock, you can consult with us about the shipping date.

Q: How about the warranty?
A: 2 years.

Q: Do you attend the Exhibitions?
A: Yes, we attend Canton Fair; HK Lighting Exhibition, International Exhibitions etc.

Q: What is the package?
A: Anti-static Package, 5M/roll. Also you can offer your own designs, you can also come to us for exact pictures for packing.

Q: What is your shipping method?
A: UPS, DHL, Fedex, TNT or EMS or Shipping by Air; Vessels by Sea or Domestic Shipping.
