• Model NO.：06-1250-21
• Brand：Lyhy
• Custom Design：Available
• Company History：Since 1993
• Outer Diameter：1476mm
• Inner Diameter：1084mm
• Height：110mm
• Testing：in House or Third Party
• Payment：Tt,LC
• Transport Package：Wooden Box
• Specification：ISO9001: 2008
• Trademark：LYHY
• Origin：China
• HS Code：848210900
• Production Capacity：600PCS Per Year

Basic Info.

Model NO. 06-1250-21 Brand Lyhy Custom Design Available Company History Since 1993 Outer Diameter 1476mm Inner Diameter 1084mm Height 110mm Testing in House or Third Party Payment Tt,LC Transport Package Wooden Box Specification ISO9001: 2008 Trademark LYHY Origin China HS Code 848210900 Production Capacity 600PCS Per Year

Product Description

LYHY bearings are expert at large diameter slewing bearing


Advantages:
1. Best quality and price
2. Small order accepted
3. ISO certified company
4. Variorum models
5. Extensive stock available
6. OEM accepted



Structure:
The balls contact with the circular race at four points through which the axial force, radial force and resultant moment may be born simultaneously.
Slewing Bearing ring material: 42CrMo, 50Mn
Slewing Bearing ring Certificate: GB/T19/ISO9001: 2008

Capacity:
Maximum Thrust: 34, 100 KN (7, 670, 000 lbs)
Maximum Moment: 27, 000 KN-M (19, 915, 000 ft-lbs)

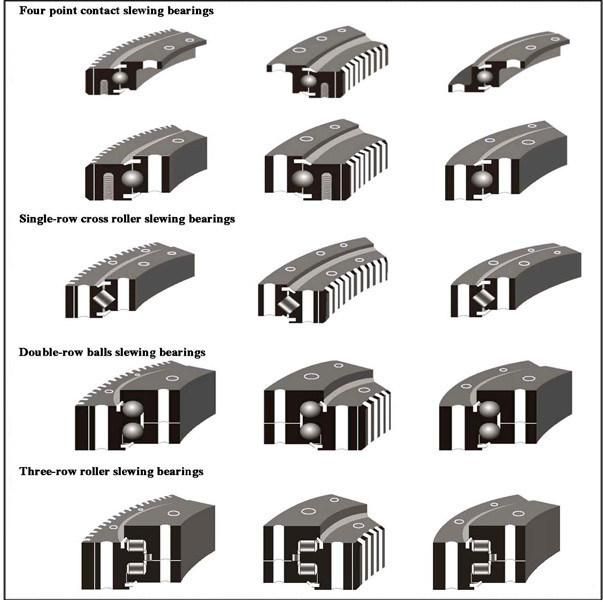

Type:

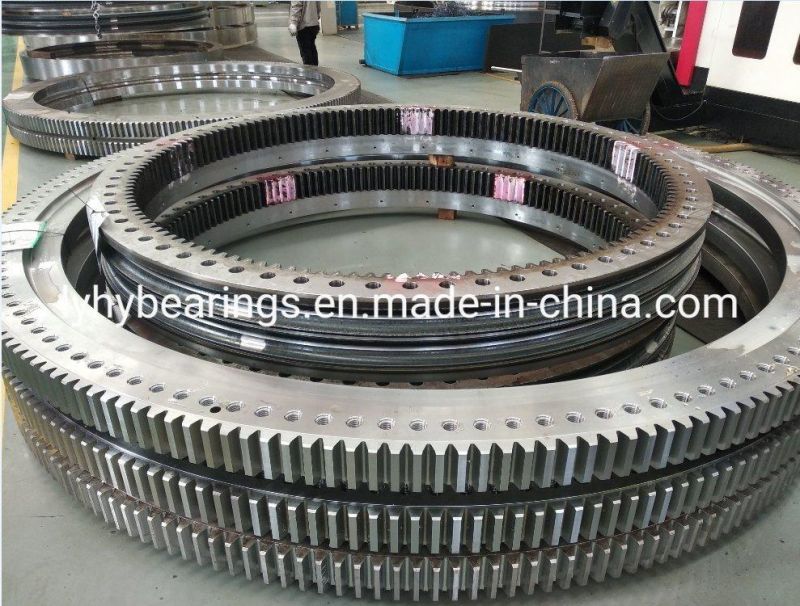

Non-gear, External Gear, Internal Gear

Hardness:
Tempering and quenching the forgings to 229-269HB, Case harden raceway to 55-60HRC, Case depth more than 3.

Application:
Tunneling equipment, harbor and shipyard cranes, construction equipment, mobile cranes, offshore technology, tower cranes, turning machines, solar energy plants, ship deck cranes, railway cranes, man lifts, wind turbines, and more.




External Diameter	Internal Diameter	Height	Weight	Module	Gear No.	Model
244	125	25	5	2	120	01 0181 02
318	169	45	14	3	104	01 0235 00
379	210	45	20	4	92	01 0289 06
403.5	234	55	25	4.5	88	06 0307 00
440	265	50	28	4.5	95	01 0342 00
505	304	56	32	5	99	21 0411 01
505	342	56	32	5	99	31 0411 01
529	323	54	45	5	103	01 0422 01
535	305	75	61	8	65	06 0400 00
589	383	75	62	5	116	06 0475 22
640	434	56	44	6	105	21 0541 01
640	472	56	46	6	105	31 0541 01
654	390	85	98	8	80	06 0508 00
689	455	74	89	6	112	01 0555 01
700	479	77	85	6	114	06 0574 09
742	534	56	52	6	122	21 0641 01
742	572	56	55	6	122	31 0641 01
774	516	82	118	8	94	01 0626 00
816	573	90	129	6	132	06 0675 00
840	634	56	60	6	138	21 0741 01
840	672	56	62	6	138	31 0741 01
863	679	82	102	6	142	01 0765 01
886	610	85	155	8	108	06 0734 00
950	734	56	68	8	117	21 0841 01
950	772	56	71	8	117	31 0841 01
979	717	100	178	10	94	06 0823 18
1022	770	82	159	8	125	01 0880 00
1046	834	56	76	8	129	21 0941 01
1046	872	56	78	8	129	31 0941 01
1094	833	82	179	8	134	01 0947 00
1144	869	100	228	10	111	06 0980 09
1198	984	56	86	8	148	21 1091 01
1198	1022	56	91	8	148	31 1091 01
1218	930	98	268	10	119	01 1050 00
1289.5	984	114	330	10	125	06 1116 00
1358	1045	98	325	10	133	01 1180 00
1431	1200	63	176	8	177	01 1295 01
1476	1084	110	503	10	144	06 1250 21
1604	1206	130	653	10	157	06 1390 03
1605	1270	110	469	12	131	01 1410 00
1727	1500	63	213	8	214	01 1595 00
1836	1433	135	791	16	112	06 1595 04
1929	1565	110	617	14	135	01 1712 00
1975	1750	63	244	8	245	01 1845 02
2027	1615	150	1004	14	142	06 1790 09
2140	1720	130	953	16	131	01 1895 00
2165	1950	68	278	8	269	01 2040 03
2267	1815	140	1174	16	139	06 2002 00
2342	2091	70	373	8	290	01 2202 00
2390	1950	130	1111	18	130	01 2130 00
2534	2042	144	1482	18	138	06 2242 00
2695	2425	63	411	8	335	01 2560 01
2790	2290	164	1895	18	151	06 2500 01
3116	2600	164	2200	20	152	06 2810 09
3200	2914	190	716	10	318	01 3031 00
