Diesel Heating Painting and Baking Booth for Automotive

1.HIGHLIGHTS

1. AS/NZS 4114.1:2003 compliance
2. Rear semi downdraft airflow
3. Shadow free workspace
4. High performance lower noise machinery
5. Inverter control
6. Lower operating costs

2.FEATURES
Infitech rear semi downdraft car spray booth IT-701B-A is designed for the Australian and New Zealand market. It complies with AS/NZS 4114.1:2003 code.
Comes standard with rear semi downdraft airflow (no need for concrete work), 28,000m³/h air volume, and 232kw heat exchanger and RG5D diesel burner, IT-701B-A spray booth provides not only practical option for you, but also maximized profits over the course of years to come.


3.SPECIFICATIONS

ITEMS	SPECIFICATIONS
Model	IT- 701B-A Rear Semi Downdraft Car Spray Booth
Design standard	AS/NZS 4114.1:2003
Internal dimensions	7000 X 4000 X 2800mm (L X W X H)
External dimensions	9170 X 4110 X 3460mm (L X W X H)
Airflow	Rear semi downdraft
Plenum (height)	600mm
Extraction	Through exhaust plenum chambers
Extraction area	4.8m2
Entrance door	3200x2700mm (WxH), 1 set
Service door	800x2000mm(WxH), 2 sets
Walls	50mm rock wool walls
Ceiling lights (LED)	8 sets, each 4 X 18W, 576W total
Sidewall lights (LED)	6 sets, each 2 X 18W, 216W total
Brightness	>1,000LUX
Filters	Bag filter, high efficiency ceiling filter, filter at exhaust plenum chamber, exhaust filter
Intake/Exhaust unit	Direct-type turbine fan, 2x5.5KW, ABB motor
Air volume	18,000m3/h
Empty loaded air speed	0.45m/s
Heats	232kw heat exchanger, RIELLO diesel burner G20
Maximum working temperature	80ºC
Controls	CE standard control box
Inverter	SCHNEIDER inverter control
Voltage	415V/3ph/50Hz
Rated power	15KW

4.DETAILS

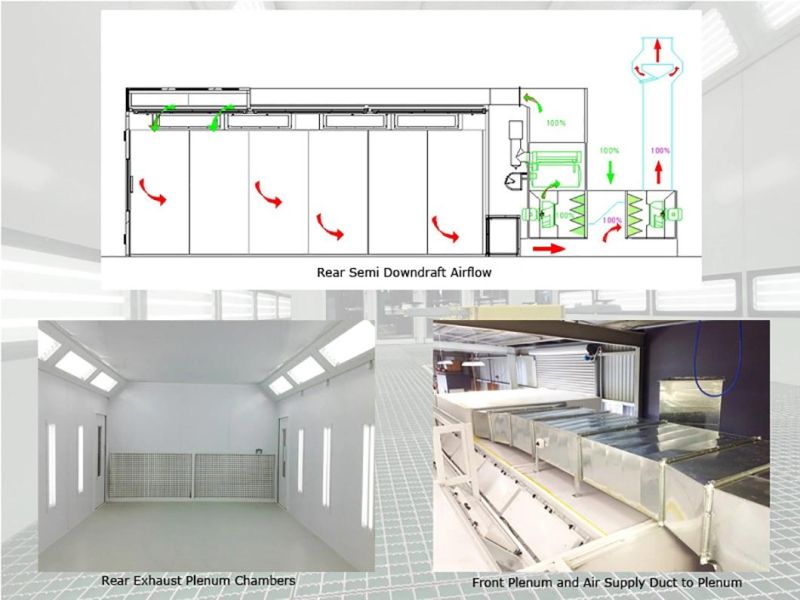

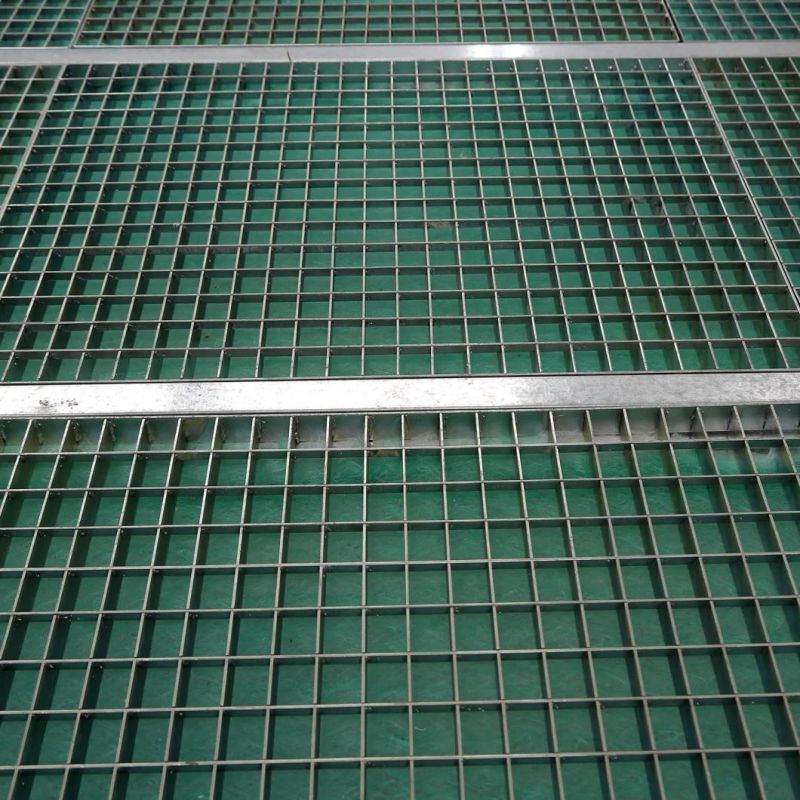

AIRFLOW

• Rear semi downdraught airflow
• Ceiling plenum (600mm high, i.e. 2 feet)

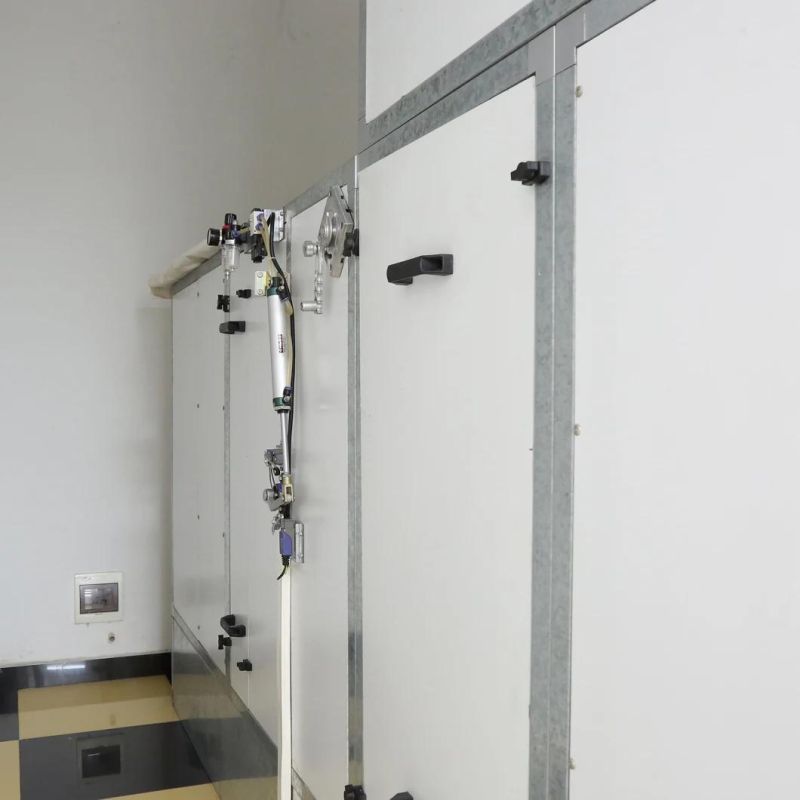

• Vertical wall panels
• Rear exhaust plenum chambers, 4000*660*800mm, filter area:3.2m²

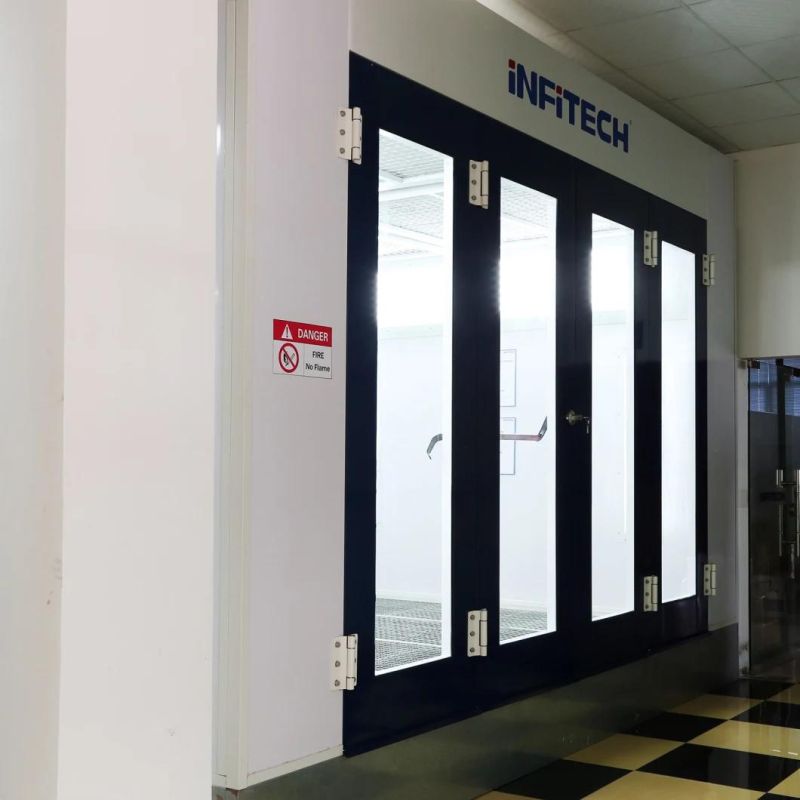

ENTRANCE DOOR

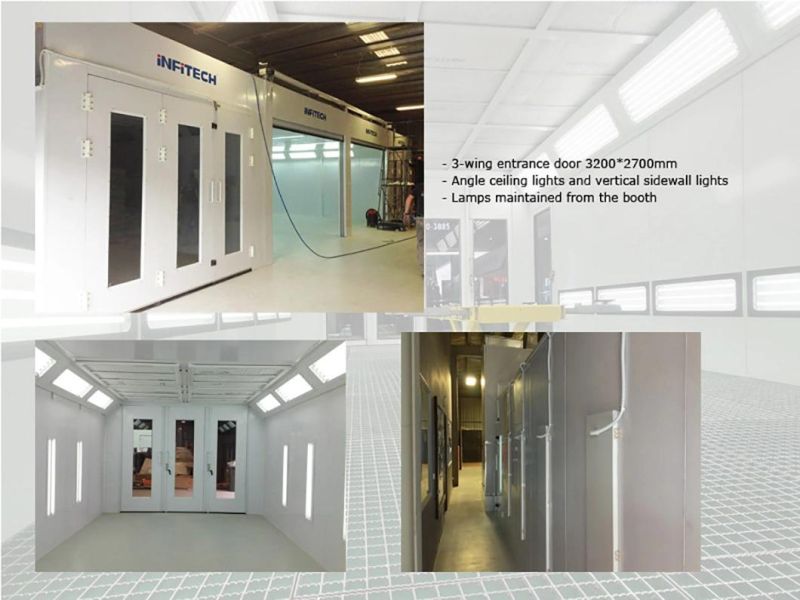

• 3-wing main entry door, with large tempering glass observation window on each door leaf
• With panic latch

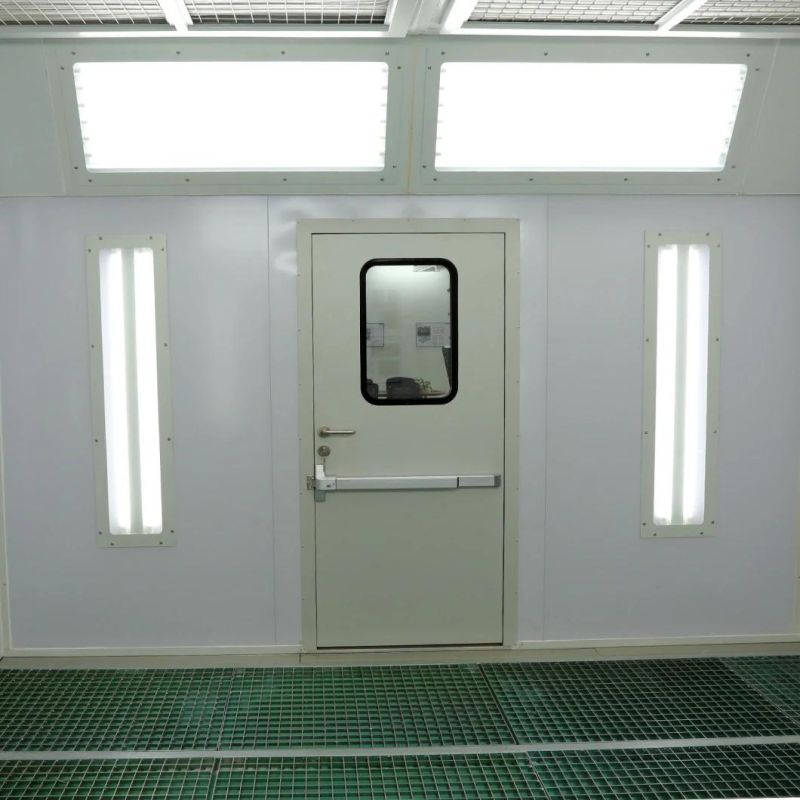

LIGHTS

• LED lamps, lamps are accessed and maintained from outside the spray booth
• IP55 protection grade lighting fixtures

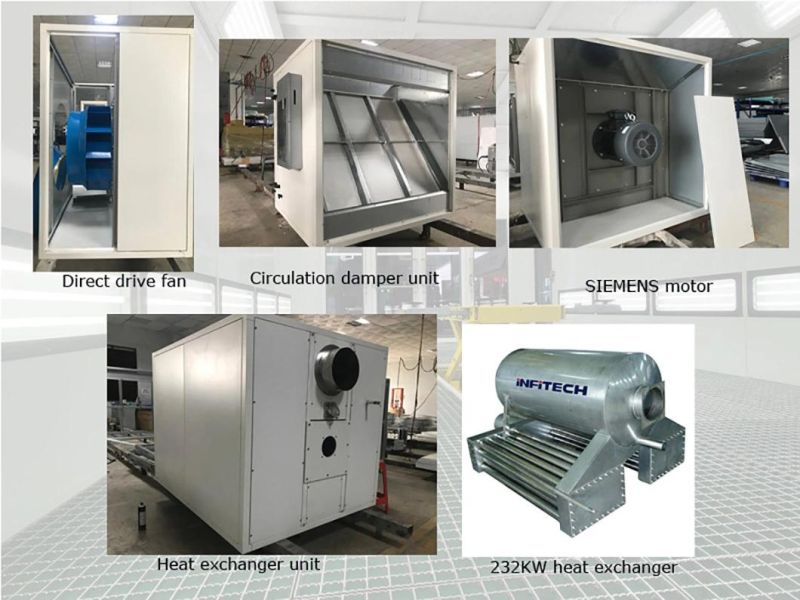

AIR HANDLING UNIT

• 2*5.5kw fan units, non-spark fan, ABB motor
• Air volume can reach 18,000m³/h, no load air speed: 0.45m/s
• 232kw heat exchanger and RIELLO diesel burner G20

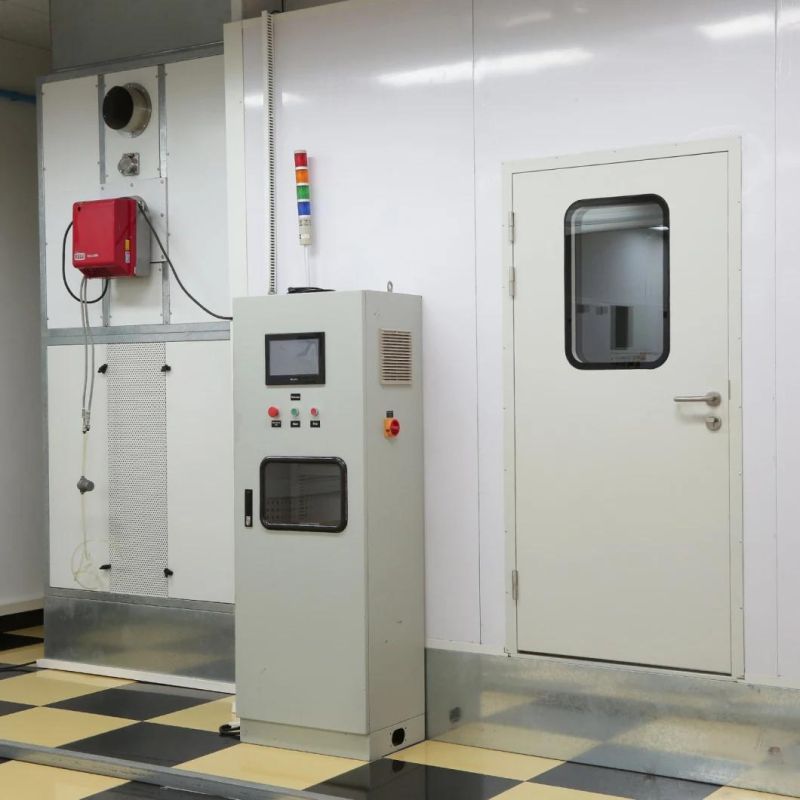

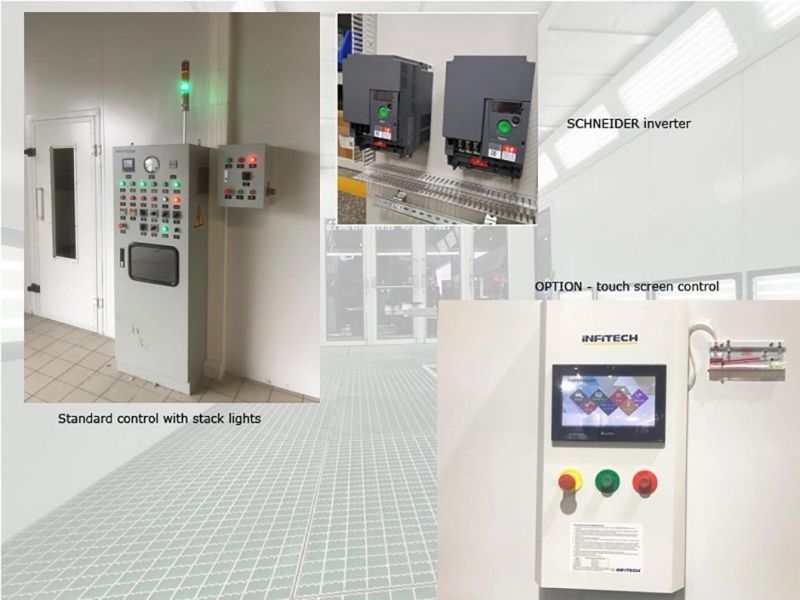

CONTROL

• Spray, bake, and cooling cycle
• SCHNEIDER brand electric components

UPGRADE

• SCHNEIDER inverter
• Touch screen control panel

FILTERS

Item	Specification
Inlet filter	Bag filter
Micro-dust filter	High efficiency SP-600G
Filter at exhaust plenum chambers	Pleated andreae filters + Fiberglass paint arrestor filter
Exhaust filter	Activated carbon filter mat

FAQQ: How big is the container do I need to load the spray booth?A: For spray booth IT-701B-A, 1x20GP container can load 1 piece.
 Q: What is the MOQ for your spray booth?A: 1 piece.
 Q: What about the payment terms?A: 50% down payment by T/T, balance payment before shipment.
 Q: How do you control the quality?A: We have quality control to inspect the quality of incoming materials, semi-finished products and finished products before packaging.
Meanwhile, we have strict selection procedures for our suppliers.
 Q: Can you customize the spray booth for us?A: Yes. We can design the spray booth to cater to your specific needs.
 Q: How long is the production schedule?A: For spray booth with standard configurations, it takes us 20 days for production.
