• Model NO.：020.25.500
• External Gear：021.25.500 022.25.500
• Sealing Type：Seal or Not
• Inner Gear：023.25.500 024.25.500
• Breadth：106mm
• Gear Breadth：60mm
• Weight：100kg
• Number of Inner Gear：59-72
• Inner Diameter：384mm
• Number of External Gear：105-126
• Transport Package：Cases and Pallets or as Customer′s Requirment
• Trademark：ZYS
• Origin：Luoyang, Henan, China

Basic Info.

Model NO. 020.25.500 External Gear 021.25.500 022.25.500 Sealing Type Seal or Not Inner Gear 023.25.500 024.25.500 Breadth 106mm Gear Breadth 60mm Weight 100kg Number of Inner Gear 59-72 Inner Diameter 384mm Number of External Gear 105-126 Transport Package Cases and Pallets or as Customer′s Requirment Trademark ZYS Origin Luoyang, Henan, China

Product Description

Slewing bearing types
     ZYS slewing bearings can be divided into the following types according to their structures as single row four point contact ball slewing bearing, single row cross roller slewing bearing, double row different ball diameter slewing bearing, three row cylindrical roller slewing bearing and roller/ball combination slewing bearing. These types of bearings can be further divided into bearings without gears, bearings with external gears and bearings with internal gears.

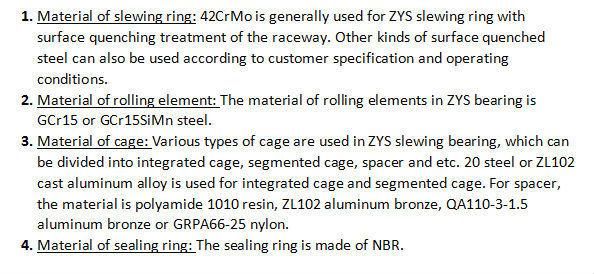

Materials of slewing bearing

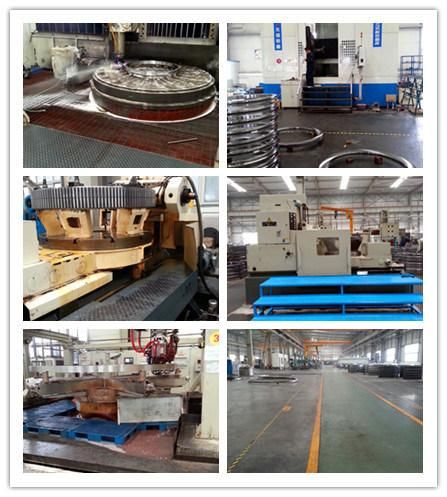

Slewing bearing workshop



ZYS Luoyang Bearing Science And Technology co.,ltd.

ZYS Tenet: To lead the science and technology development of bearing industry and to
                   improve the world'sequipment level.
ZYS Spirit: To keep continuous improvement, to pursue brilliance.
ZYS Core values: Integrity, rigor, innovation, mutual benefit.
      ZYS was formerly known as Luoyang bearing research institute, which was founded in 1958 and was the only first-class comprehensive research institute in China bearing industry. As it became one member of China National Machinery Industry Corporation in 1999, the former institute was transformed into the science and technology enterprise. Then Luoyang Bearing Science & Technology Co., Ltd. was established in 2001. It was listed at Shenzhen Stock Exchange with stock code 002046 in 2005.

ZYS Advantage

      ZYS has a strong strength of manufacturing high-precision and high-reliability bearings and relevant parts. ZYS company not only possesses advanced bearing manufacturing equipments and international first-class measuring instruments,but also has strong strength of manufacturing,inspecting and testing the high-precision and high-reliability bearings and relevant spare parts.In the meantime,it always keeps a leading position in bearing basic theory,lubrication technology,design,material,test,information criterion and other aspects.
Glory

Top 200 most promising companies of China in Forbes

Top 500 in China Machinery Industry

Excellent Enterprise with China Well-know Trademark

High-performance Bearings Laboratory

State Quality Supervision and Testing Center for Bearing

ISO/TC4 China Secretariat

The Research Center for High-speed Precision Bearing Engineering in Machinery Industry

                                                              ... ...

      We would like to and ready to do business with any company from all over the world.If any of ZYS products interests you or if you have interests in ZYS company, please don't hesitate to contact with us,we would like to give you ZYS best quality service any day any time !

         Contact us

Address: No.1 Jilin Road, Luoyang City, Henan, Province, China.

Zip Code:471039

Website:chinazys.en.made-in-china.com
