Outdoor Anti-Low Temperature and Energy Saving LED Display (P8 P5 P6 P10)

Emoer Industry Limited
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：8mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display, Image & Text Display, Text Display, Market Display
  • Average Power Consumption：750W,Square

Base Info

  • Model NO.：P8
  • Pixel Density：15625,Square
  • Scanning Mode：1,4 Scan
  • Display Type：LED Video Display
  • Application：Advertising
  • Certification：CE, RoHS, UL, CCC, ETL
  • Monthly Sales：30000 Sqm , Per Month

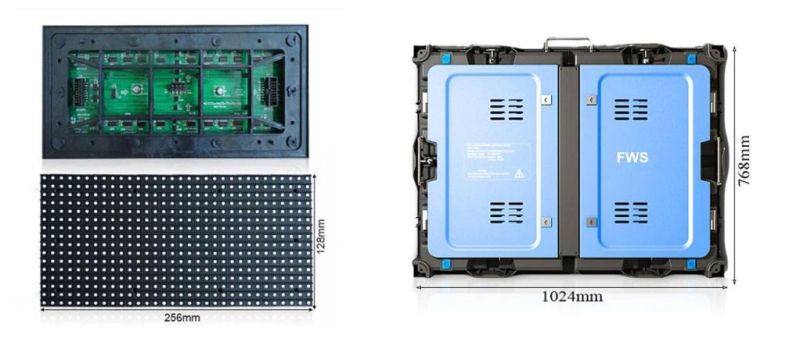

  • Module Size：256X128mm
  • Package Mode：Wooden Case
  • Life Span：100000 Hours
  • Waterproof Level：IP 65
  • Back Door：2 Back Door
  • Working：Working on Sun and Rain
  • Color Display：Full Color
  • Deliver Time：15-20 Days
  • LED Lamp：SMD 3535
  • Transport Package：Full Waterproof Cabinet
  • Specification：1024*768*95mm
  • Trademark：FWS
  • Origin：Made in China
  • HS Code：9405409000
  • Production Capacity：30000 Sqm , Per Month

Description

LED LampTypeSMD 3535BrandEpistarArrangement1R1G1BChip parametersRed (620-625nm) IV:(1000-1200mcd)Chip parametersGreen (520-525nm) IV:(2000-2500mcd)Chip parametersBlue (470-475nm) IV:(500-650mcd)LED ModulePixel Pitch8mmModule Size(W*H*D)256×128×25mm(LED CabinetPixel Density15625 Dots/sqmCabinet Dimension(W*H*D)1024×768×95mmCabinet Resolution128×96=12288(Dots)Module Quanty /Cabinet4×6=24(Pcs)Cabinets MaterialAluminum CabinetCabinet Weight25kgBrightness White Balance>7500cd/sqmViewing Angle120(Horizontal), 70(Vertical)Nearest Viewing Distance11mPower Consumption (Max)650 w/sqmPower Consumption (Average)200 w/sqmRefresh Rate>2000HzDrive Mode/Driver PositionConstant driving 1/4 Scan, Combined diver boardDisplay FunctionText, Graphics, VideoFrame Frequencyno less than 60 frame/secInput VoltageAC110-220V±10%, 50/60HzOutput VoltageDC-4.2V, 40A/60A/80AColor Grayscale16bitGray Scale per Color65536 levelColor ProcessingR(1024)×G(1024)×B(1024)Brightness Adjustment256 color levels, can be adjusted manually and automatically optionalMTBF( mean time between failures)5000 hoursLife-span100, 000 hoursProtection Level(front/back)IP66/IP54Malfunction Dot Rateless than 0.0001Storage Temperature-35oC~85oCWorking Temperature-35oC~50oCHumidity15%~85%Thermal DischargeFan cooledControl SystemControl MethodSynchronizationControl SystemSending Card, Receiving Card, Receiving HUBSoftwareLED Studio(FWS-linsn)LanguageChinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic,Korean,GermanControl Card InputDVI, USB, RJ45, HDMI(Sold separately)Input SignalAVI/MPG/MPEG/TXT.etcPC Operating SystemMicrosoft Windows 10 ,Windows 7 and XPCommunication TypeNet cableCertificateCE, ROHS, FCC, ISO9001, TUVLED Module & Cabinet
Outdoor Anti-Low Temperature and Energy Saving LED Display (P8 P5 P6 P10)
Case
Outdoor Anti-Low Temperature and Energy Saving LED Display (P8 P5 P6 P10)
Our Clients
Outdoor Anti-Low Temperature and Energy Saving LED Display (P8 P5 P6 P10)

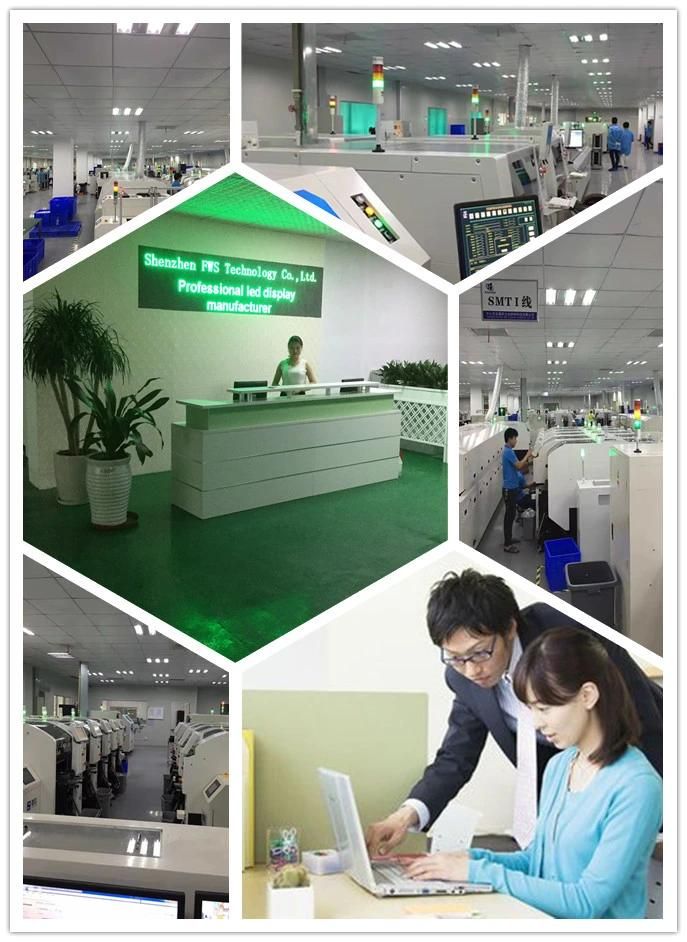

Our Factory
