• Type：Circular Gear
• Diameter：up to 885mm
• Material：Cast Iron
• Manipulate Way：Robotics
• Changes Way：Mixed
• Manufacturing Method：Cut Gear
• Toothed Portion Shape：Spur Gear
• Transport Package：Plywood Case
• Specification：ISO9001: 2008
• Trademark：SGR
• Origin：China
• HS Code：8483409000
• Production Capacity：400PCS,Month

Basic Info.

Type Circular Gear Diameter up to 885mm Material Cast Iron Manipulate Way Robotics Changes Way Mixed Manufacturing Method Cut Gear Toothed Portion Shape Spur Gear Transport Package Plywood Case Specification ISO9001: 2008 Trademark SGR Origin China HS Code 8483409000 Production Capacity 400PCS/Month

Product Description

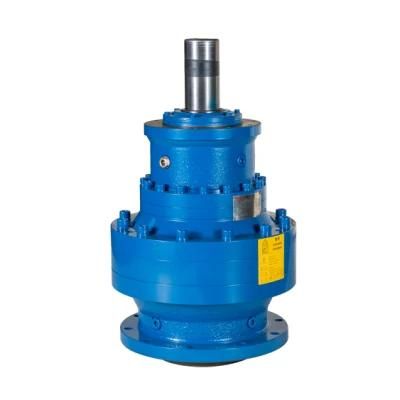

Flange Input In Line High Output Torque Planetary Gearbox Tranmsission


Description:

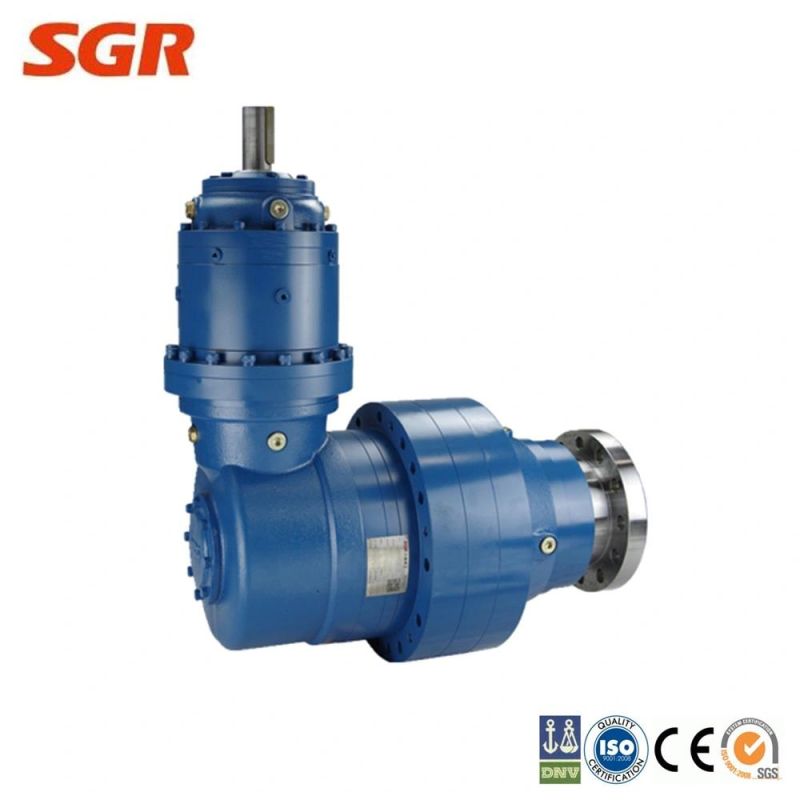

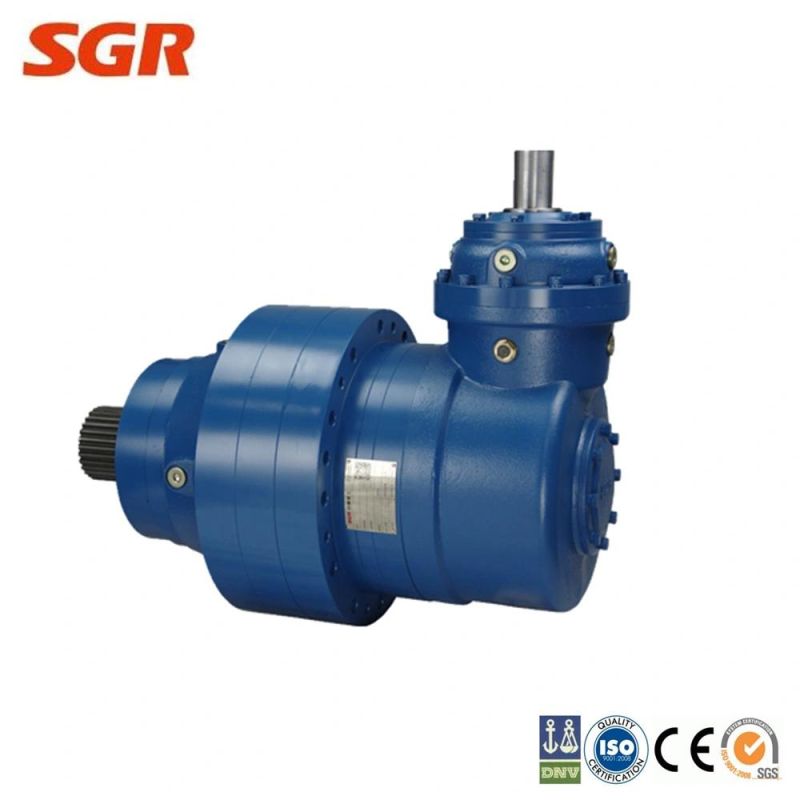

N series of planetary reducers from SGR are widely used for industrial and heavy duty severe applications . planetary reducer feature with compact size, low noise , excellent reliability ,long life . In-line or right-angle planetary gearboxes are available in male and female shaft configurations. The SGR male shaft solution (splined or cylindrical) is able to withstand strong radial or axial loads on the output shaft.

Key feature:

• Planetary gearbox is produced by modular design, and can be combined according to client's request
• Involuted planetary gear design
•  Nodular cast iron Housing to increase rigidity and antiknock
• Heavy duty bearing on low‐speed shaft, and can bear big radial load due to proportionate distribution of   torque
• All gears are case hardened to get high surface hardness, which guarantee transmission efficiency and whole gearbox's life
• Planetary gearbox has 16 models for different torque range, and each model have 1‐5 reduction stages to achieve different ratios
• Ratio range: 3.15‐9000
• Input power: 0.25‐55KW
• Permit torque rang: ≤ 800000N. M
• Output speed: 0.425‐445 r/min
• Structure mode: Possibility of flange, foot, or shaft mounting solutions
• Wide and comprehensive range of N series for industrial applications
• Low speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
• Rigid and precise nodular cast iron casing
• Low noise running, high manufacturing quality standard
• High and reliable performance, load capacity and low speed shaft bearing

N series planetary gearbox torque sheet with models

Gear unit size	200	201	240	241	280	281	353/354	355	400	401
Normal output torque T2N[Nm]	1500	2000	3500	4000	4300	7300	13000	16000	20000	23000
Gear unit size	428	429	445	446	510	542	543	695	810	885
Normal output torque T2N[Nm]	26000	30000	32000	43000	63000	75000	100000	150000	300000	420000
