Full Color SMD Outdoor LED Screen
Xiamen Teambo Industry & Trade Co., Ltd.- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：5.95mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Pixel Density：27777 DOT ,M2
Base Info
- Scanning Mode：1,8 Scan
- Display Type：LED Video Display
- Application：Stage Performance
- Certification：CE, RoHS, UL, CCC, ETL
- Warranty：2 Years
- Mtbf：> 100,000 Hours
- Signal Interface：DVI
- LED Lamp and IC：Epistar

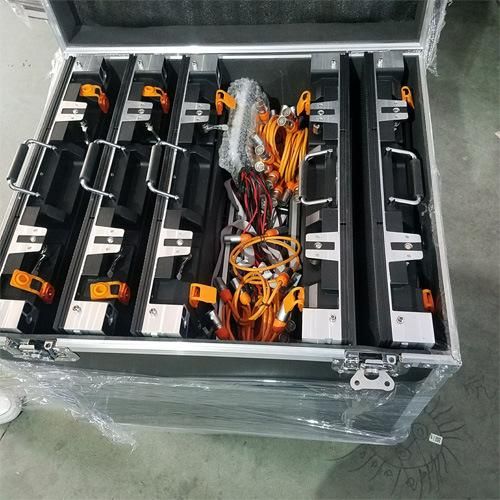

- Transport Package：Flight Case
- Specification：65*65*79cm
- Trademark：OEM
- Origin：China
- HS Code：8531200000
Description
Pixel Pitch 6 mm 2 LED per pixel SMD2727 3 Resolution 27777 pixel/m2 (uniformly spread over the surface, to ensure homogeneity) 4 LED LAMP AND IC Epistar 5 Single Module Dimension/Pixel(W x H) 192mm x192mm / (32dots * 32dots) 6 Single Cabinet Dimension/Pixel(W x H) 576mm*576mm /(96dots * 96dots) 7 Cabinet Material outdoor waterproof Rental Die-casting cabiant 8 Single Cabinet Weight around 20kg 9 Optimal View Distancing 5m-250m 10 Horizontal Viewing Angle 140° (Standard LEDs Viewing Angle) 11 Vertical Viewing Angle 110° (Standard LEDs Viewing Angle) 12 Brightness 6500cd/m² 13 Grey Color 16 Bit 14 Contrast 2000 15 Operating Temperature -20ºC~+50ºC , 10%~90%RH
