156 LEDs/M 15W SMD 3014 24VDC Side View Edge Emitting LED Strip Lighting
Phoebese Industrial (Shanghai) Co., Ltd.- Certification：GS, SAA, VDE, UL, EMC, RoHS, CE
- Power：16-20W
- Emitting Color：White
- Voltage：24VDC
- IP Rating：IP33
- LED Quantity Per Meter：156
Base Info
- Model NO.：MB-FS30ED-W-156,20
- PCB Width：8mm, 10mm
- SMD：3014
- CRI：80+
- Transport Package：5m,Reel
- Specification：sideview led strip
- Trademark：Maxblue
- Origin：Shenzhen, China
- HS Code：94054090
- Production Capacity：20, 000m,Week
Description
-Ideal for fast installation into many applications like signs, displays and pelmets
-Back affixed with 3M double-sided adhesive , easy to install .
-Low voltage , safe and environmentally friendly.
-Special circuit design, anti-static and stable.
-Solid state light source, shock , no subject to RF interference.
-Different colors and IP20/non-water proof, IP55, IP67, IP68 available
-White, yellow PCB board
-Per 3-led or 6-led cuttable for DC12V or 24V
-CE, ROHS certification
-3-year warranty
Product Parameters
Model No.: MB-SFS30-W-156/20
Dimension: 5000mm*8mm*0.22mm
PCB width: 8mm, 10mm
PCB color: White, Yellow or Black
Voltage: DC24V
Max.Current: 30mA/led
Wattage: Max. 15W/M;
LEDs: 780pcs SMD3014 10-13lm/led
Waterproof grade: IP20
Beam Angle: 120degree
Color: Warm white, Cool white
Working temperature: -20~+60 celsius degree

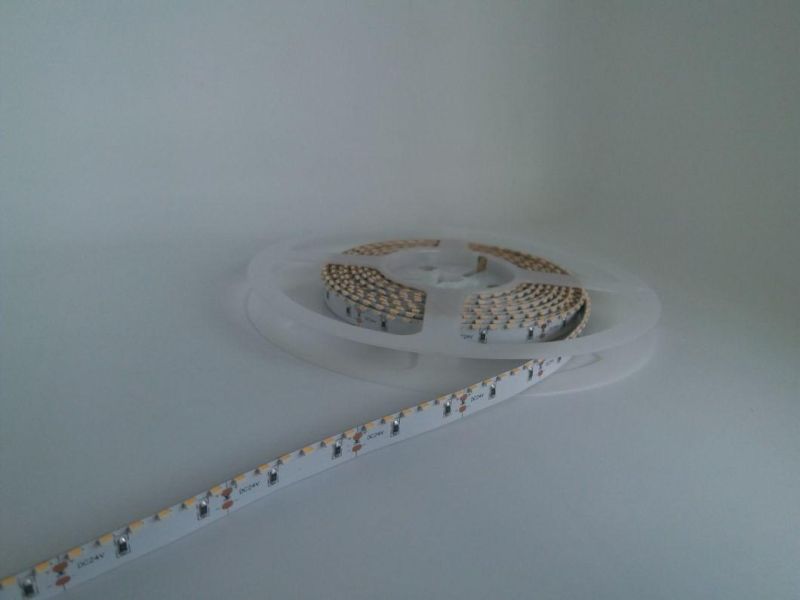

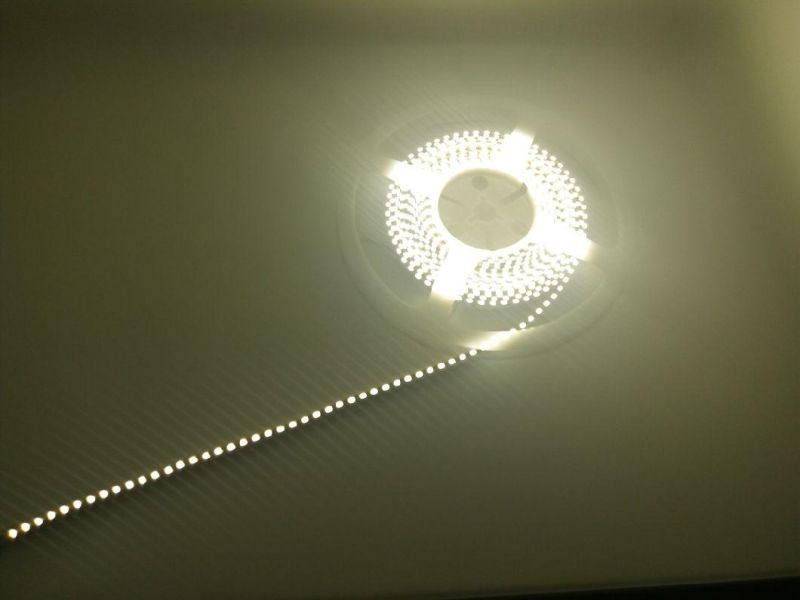

Detailed Photos
Flexible led Strip range:
--3528 smd led: 60leds/m, 120leds/m, 240leds/m(single row and double row);
--5050 smd led: 60leds/m, 72leds/m, 120leds/m(double row)
--2835 smd led: 60leds/m, 120leds/m (single row)
--5630 smd led: 60leds/m, 120leds/m (double row), Samsung 5630 is available
--RGBW led strip: 4 in one(60/72/84/96leds/m)
RGB+W/WW(60/72/96/120/144leds/m)
--CCT adjustable led strip: 3528 120/240 leds/m, 5050 60leds/m, 2835 112leds/m; 3014 224leds/m; 5630 112leds/m.
--digital strips
--110V/220V led strips
different length, different voltage, different led quantity can be customized/tailored.

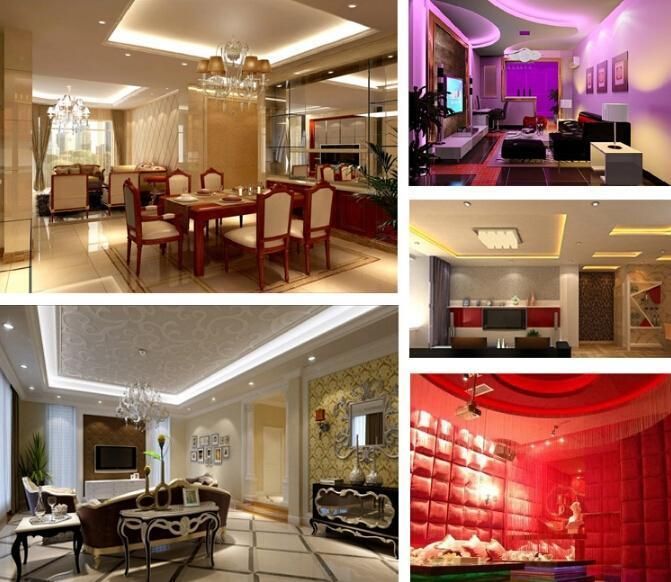

Applications
a. Indoor and outdoor decoration lightings.
b. Large scale backlight.
c. Window display lighting.
d. Building contour decorative lighting.
e. Advertising Signs, light boxes.
f. Landscape outlines.
g. Car and motorcycle decorative lighting.
h. Bridge edge lighting.
i. Architectural decorative lighting.
j. Emergency hallway lighting.
k. Festival lighting, like Christmas.
OUR MISSION
Vision:
For better lighting the world and keeping the blue sky maximum.
Mission:
To be one of the best products and service brands in Led lighting industry.
Core Value:
We would like to follow the advanced technology to develop the products with:
Eco-friendly & Energy-saving: make less CO2 emission with using led products.
Reliable: our strict quality control system makes sure the products work in stability within the life span.
Affordable: offering the reasonable price to make sure the end user enjoy the latest technology.
Established in 2009, Maxblue Lighting Co., Ltd., with own branches of R&D, manufacturing and marketing, is specialized in Indoor Led lighting and commercial Led decoration, devoting to delivering eco-friendly, affordable and stable Led products for the customers. Now we focus on led flexible strip, led linear light, led cob downlight, led panel light, led track light, led wall washer etc.
With our ISO9001:2008 certified facilities, plus two SMT production lines and one fully-automatic reflow machine, we can manufacture above 50000 units of CE- and TUV-marked items per month in the 5000 square meters factory. To develop innovative products cater to different market needs, we have 12 RD engineers and 15 QC staff, well knowledgeable about optical, electrical and thermal design and management. And the OEM/ODM sample orders can be tailored within 7 working days per customer's requirements.
Based on our continuous efforts and outstanding quality control polices, we developed rapidly in the past five years, and the products are well welcomed in European, North/South America, Japan and other Asia countries. And also in some countries, Maxblue has been distributing by some partners. If you have interests, warmly welcome you to join us for better lighting the world.
FACTORY VIEW
