• Model NO.：6mm, 8mm, 10mm, 16mm
• Pixel Density：10000 dot , m²
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC
• Delivery Time：15~25 Working Days
• Warranty Time：2 Years
• Lifespan：>100000hrs
• OEM：Yes
• Brightness：>6500nits
• Refresh Rate：>1500Hz
• Transport Package：Flight Case, Plywood Case, Carton.
• Specification：CE, ROHS, ISO9001
• Trademark：BST
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：5000sqm,Month

Basic Info.

Model NO. 6mm, 8mm, 10mm, 16mm Pixel Density 10000 dot / m² Scanning Mode 1/4 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC Delivery Time 15~25 Working Days Warranty Time 2 Years Lifespan >100000hrs OEM Yes Brightness >6500nits Refresh Rate >1500Hz Transport Package Flight Case, Plywood Case, Carton. Specification CE, ROHS, ISO9001 Trademark BST Origin Shenzhen, China HS Code 8528591090 Production Capacity 5000sqm/Month

Product Description

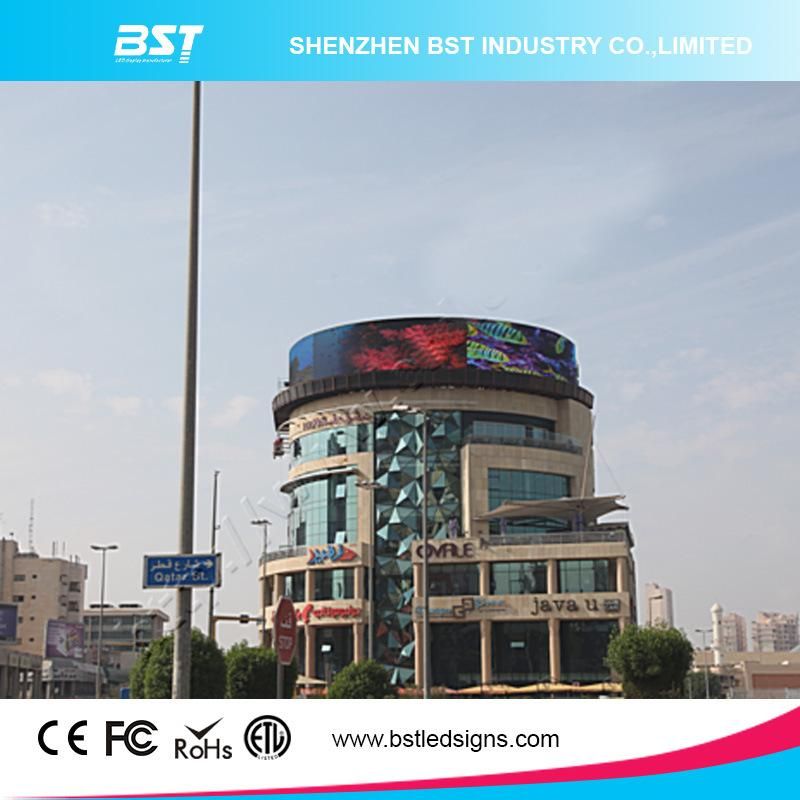

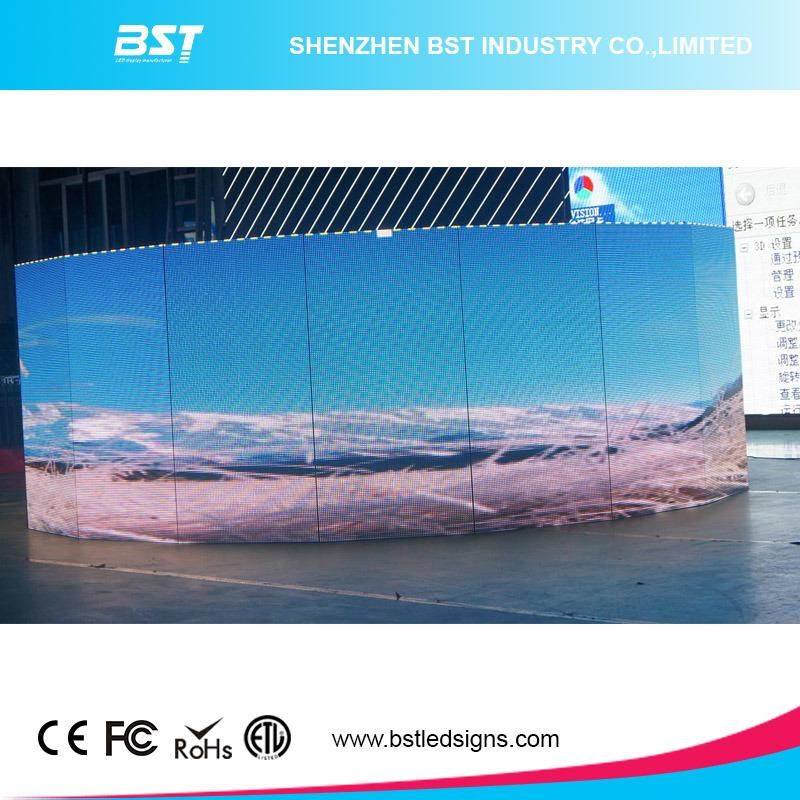

Wall mounted P10mm Waterproof Outdoor Fixed Full Color curved LED Screen


Outdoor Fixed Full Color LED Screen's Key Benefits

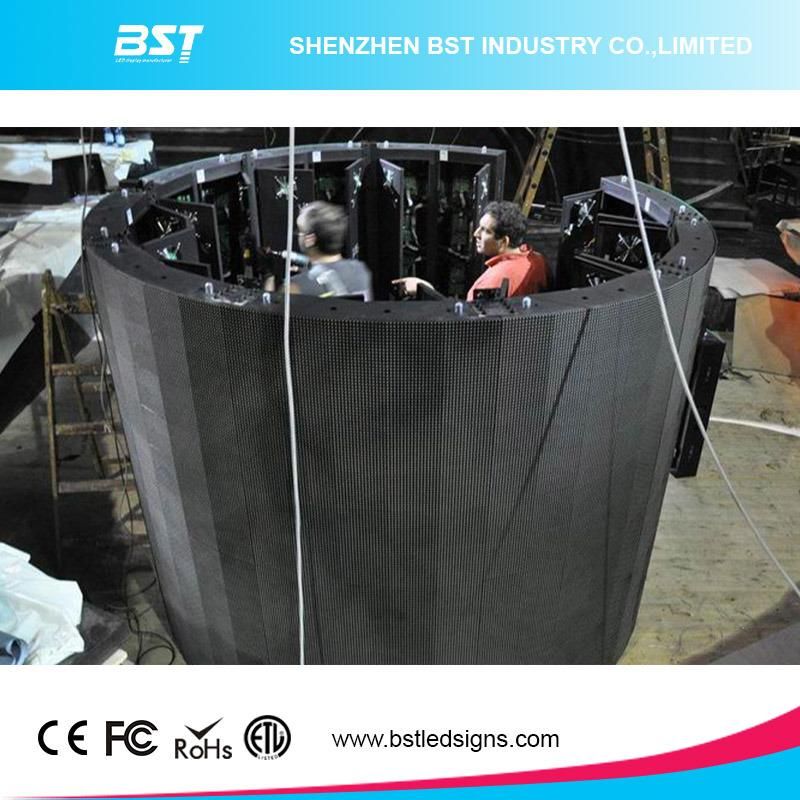

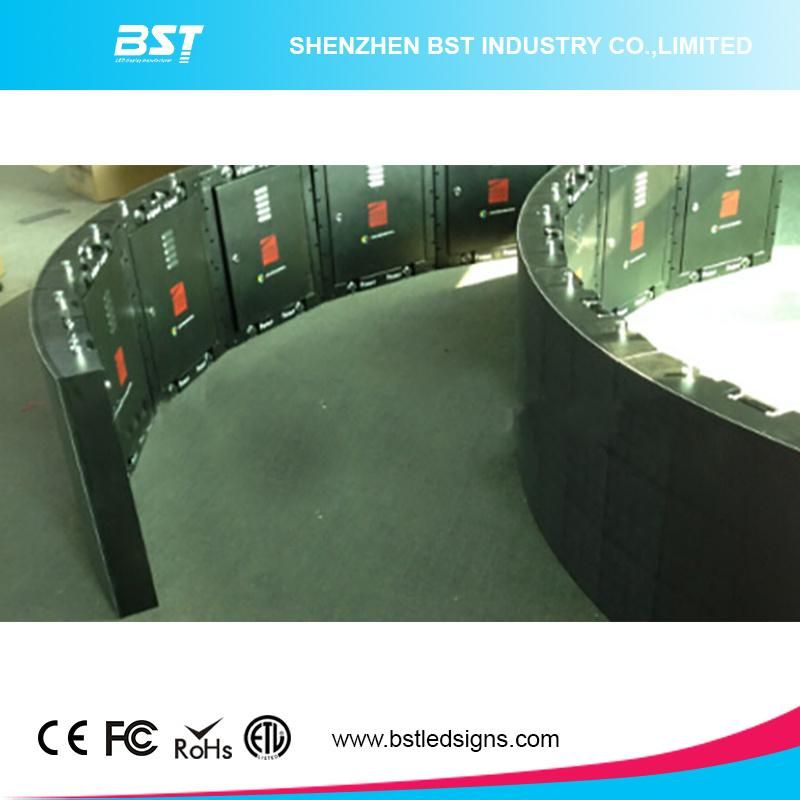

1. It can be curved into different shape to fit convex or concave wall or rugged wall or building, and it can be shaped into column to wrap pillars for animation decoration.
2, High resolution, high contrast ratio, wide viewing angle.
3. We make best design with high cost- efficiency due to different demands and we can offer OEM service as well.
4. The brightness can be adjustable for different environment.
5. Easy to maintain and Operation
6. Having good lightening accordance and no mosaic;
7. Having large viewing angle: Getting vivid effect within any position of the viewing range;
8. Any LED in died pixel can be respectively repaired, which reduce the cost of the display maintenance.

LED DISPLAY, LED STADIUM SCREEN, LED OUTDOOR SCREEN, OUTDOOR BILLBOARD

Model	PH10
Pixel  Pitch	10mm
Unit  Size	1280mm x 960mm
LED  Type	1R1G1B
Pixel / Unit	128x96
Unit  Weight	65kg(steel) or 45kg(Aluminum)
Viewing  Angle	H140°   V140°
Application	Storage-40~60° C,     Working-20~50° C
Protection  Level	IP65
Power  Consumption	620W/panel  Max
	250W/Panel  Ave.
Driving	1/4
Frame  Refresh	≥60Hz
Data  Refresh  Rate	1200~4000Hz
Processing	16bit
Max    Brightness	5,500-6500nits
Power  Supply	AC90-240V,   50~60Hz
MTBF	≥1000  Hours
Life  Span	≥50000  Hours
Pixel  Failure	< 0.0003
