• Model NO.：SMLN-80W

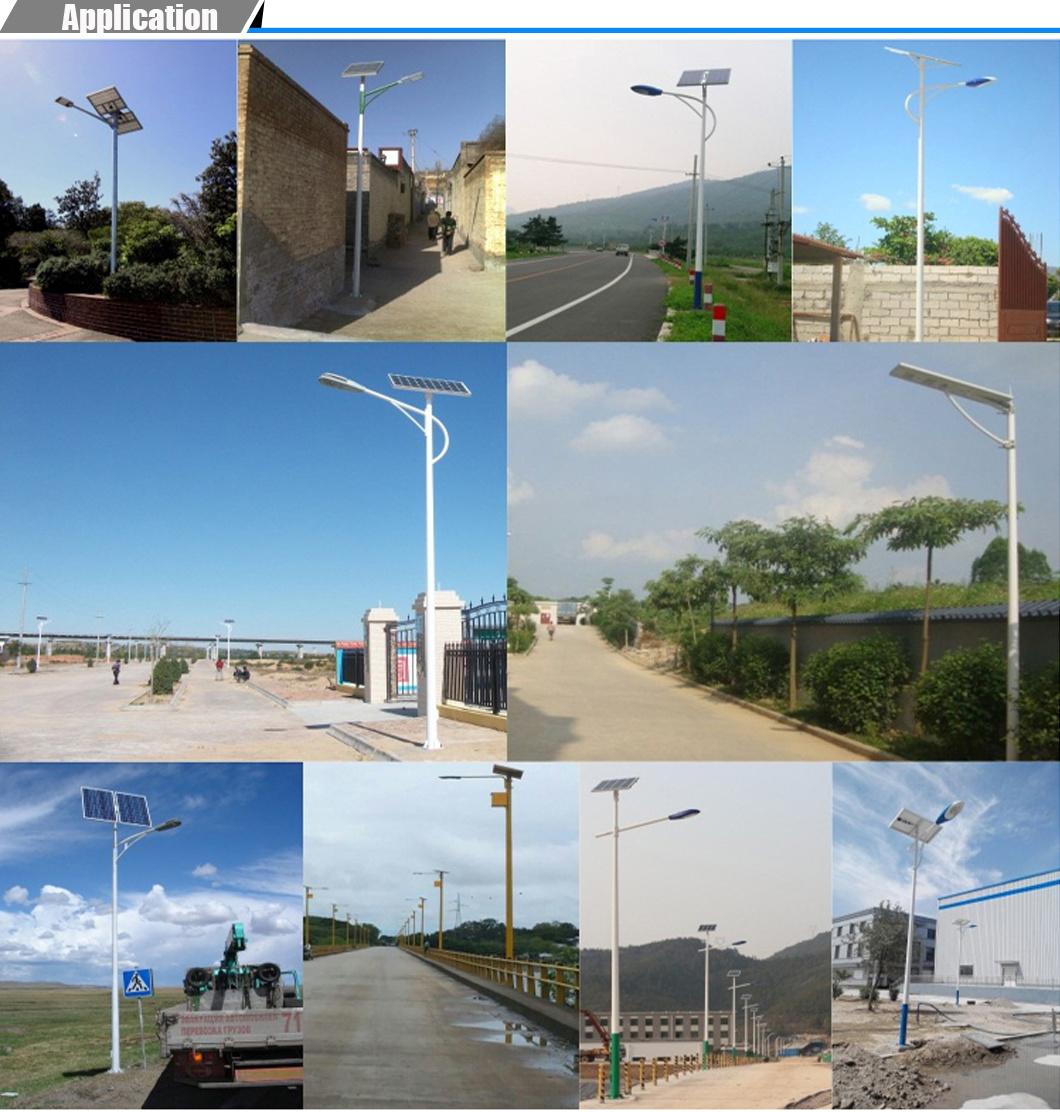

• Application：Highway, Square, Garden
• IP Rating：IP66
• Certification：CE, RoHS, ISO, FCC, EMC, GS, TUV
• Voltage：12V
• Mounting Height：9m
• Battery：56ah
• LED Chip Brand：USA Bridgelux 210lm,W
• Solar Panel：120W
• Lamp Luminous Flux(Lm)：14400
• Distance Between Poles：10-15m
• Pole Height：12m
• Solar Cells：Mono or Poly High Efficiency A Grade

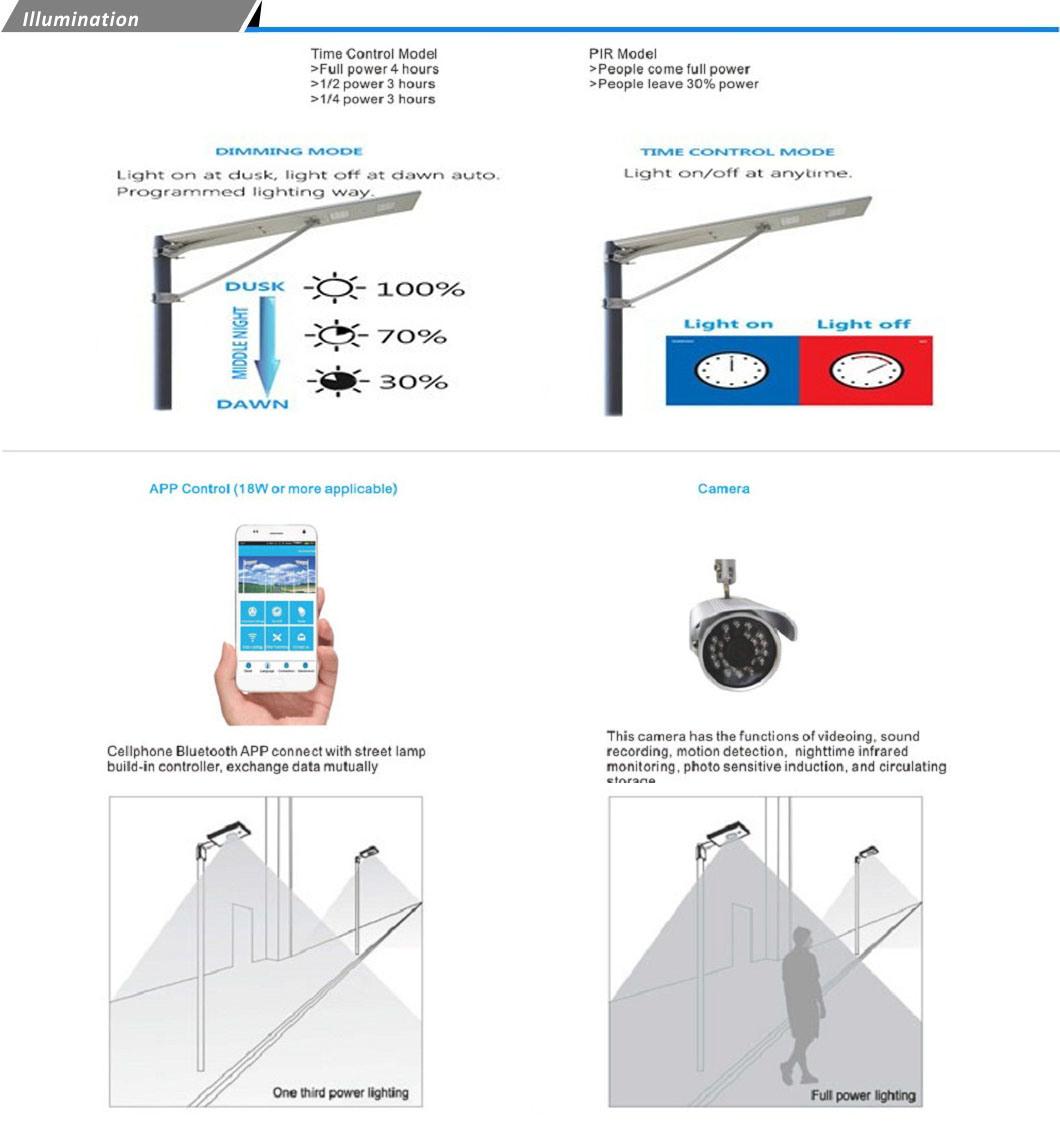

• Dim/Non-Dim：Both Can Do
• Approval：Ce,RoHS,Coc,IEC Soncap
• OEM/ODM/Customized：Available
• Warranty(Year)：5 Years
• Input Voltage(V)：DC12,24V
• Lamp Luminous Efficiency(Lm/W)：180lm,W
• Working Temperature(ºC)：-40ºC - 60ºC
• Transport Package：Carten
• Specification：1593X450X45mm
• Trademark：sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：1000PCS,Week

Basic Info.

Model NO. SMLN-80W Application Highway, Square, Garden IP Rating IP66 Certification CE, RoHS, ISO, FCC, EMC, GS, TUV Voltage 12V Mounting Height 9m Battery 56ah LED Chip Brand USA Bridgelux 210lm/W Solar Panel 120W Lamp Luminous Flux(Lm) 14400 Distance Between Poles 10-15m Pole Height 12m Solar Cells Mono or Poly High Efficiency A Grade Dim/Non-Dim Both Can Do Approval Ce/RoHS/Coc/IEC Soncap OEM/ODM/Customized Available Warranty(Year) 5 Years Input Voltage(V) DC12/24V Lamp Luminous Efficiency(Lm/W) 180lm/W Working Temperature(ºC) -40ºC - 60ºC Transport Package Carten Specification 1593X450X45mm Trademark sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 1000PCS/Week

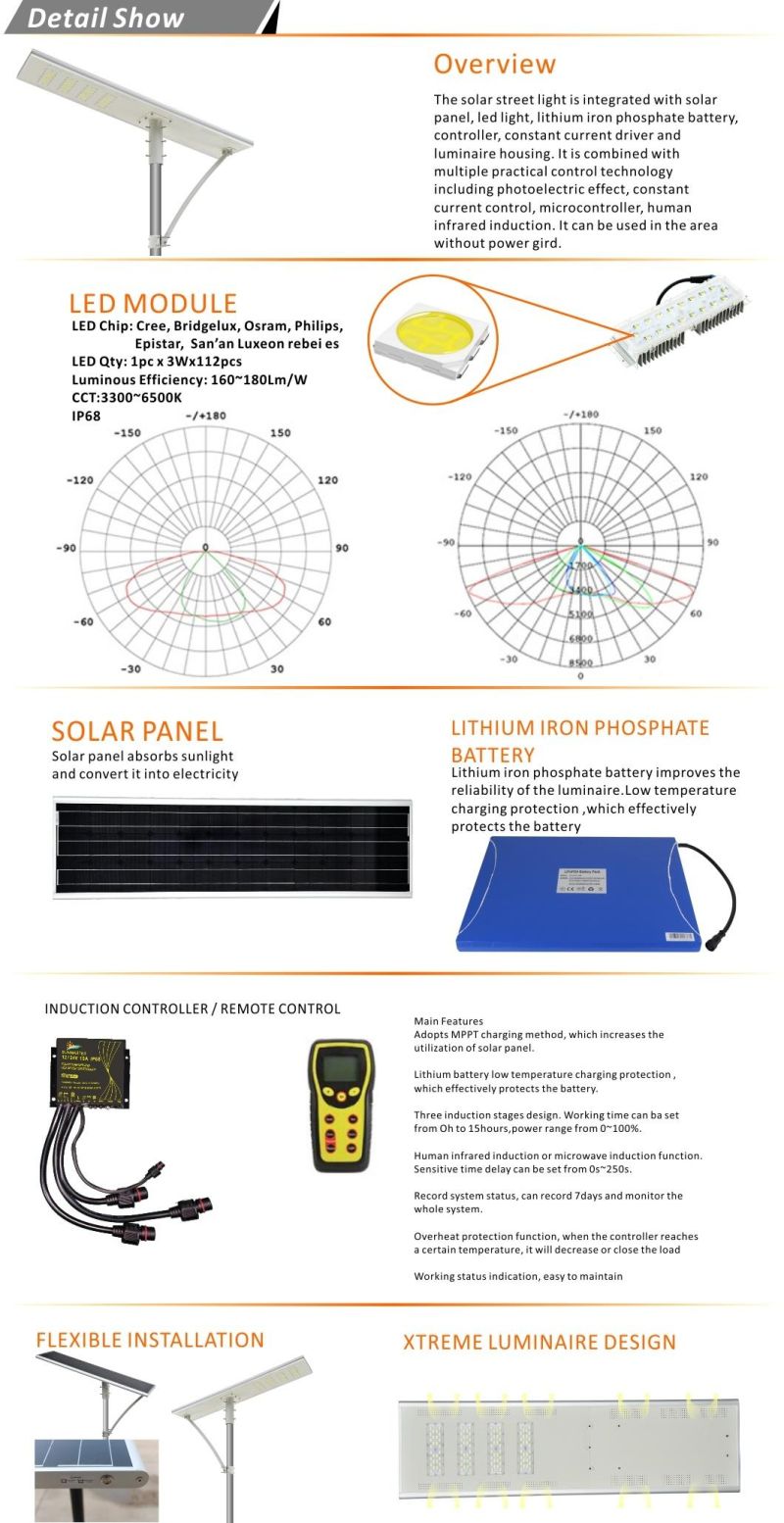

Product Description

1.Excellent quality LED and human induction PIR more senstitive.
2.MPPT Superier controller efficiency more than 96%,time control,light on/off.
3.LiFePO4 battery,good safety performance,high capacity,long life,high and low temperateure protection.
4.Unique lens design,with excellent illumination and light transmittance.
5.IP67 Metal switch,more durable.

Model NO.	SMLN-80W	Battery Type:	LiFePO4 26Ah/25.6V
Power:	80W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	1593*450*45mm
Viewing Angle:	120	Packing Dimension:	1640*505*150mm
Working temperature :	,-20 ~ +70	Product Weight	24.2kg
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	9-12m
Solar Panel:	18V 120W Mono-crystalalline	Warranty:	3 years
