F Series Gear Reducer Hard Tooth Face Gearbox Reduction
Shinylink (Shanghai) Industrial Inc.- Application：Machinery
- Hardness：Hardened Tooth Surface
- Installation：Horizontal Type
- Layout：Parallel
- Gear Shape：Helical Gear
- Step：Double-Step
Base Info
- Model NO.：F
- Type：Gear Reducer
- Input Power：0.12~200kw
- Permissible Torque：110nm~18000n.M
- Voltage：380-440V
- Color：Customized
- Unit Package：Standard Plywood Case Package ,Also Can as Client
- Ratio：4.3-273
- Warranty：1 Year
- Material：Cast Iron
- Output Torque：200n.M-18000n.M
- Input Speed：1400rpm
- Output Speed：Based on Ratio
- Mounting Position：Foot Mounted. Flange Mounted
- Input Form：Motor, Motor Flange, Input Solid Shaft
- Output Form：Hollow Shaft Output
- Gear Set：Helical Gear Unit
- Transport Package：Wooden Case,Carton,Pallet
- Specification：ISO, CE, SGS
- Trademark：AOKMAN DRIVE
- Origin：China
- HS Code：8483409000
- Production Capacity：5000PCS,Year
Description
Output Shaft Dia.Input Shaft Dia.Power(kW)RatioMax. Torque(Nm)Solid ShaftHollow ShaftF3825mm30mm16mm0.18~3.03.81~128.51200F4830mm35mm16mm0.18~3.05.06~189.39400F5835mm40mm19mm0.18~5.55.18~199.70600F6840mm40mm19mm0.18~5.54.21~228.99820F7850mm50mm24mm0.37~114.30~281.711500F8860mm60mm28mm0.75~224.20~271.923000F9870mm70mm38mm1.1~304.68~276.644300F10890mm90mm42mm2.2~456.20~255.257840F128110mm100mm55mm7.5~904.63~172.3312000F158120mm120mm70mm11~20012.07~270.1818000
Installation:
Foot-mounted
B5 Flange-mounted
B14 Flange-mounted
Shaft-mounted
Lubrication:
Oil-bath and Splash Lubrication
Cooling:
Natural Cooling
Services during selling1.Pre-check and accept products ahead of delivery.2. Help clients to draft solving plans.After-sale services1.Assist clients to prepare for the first construction scheme.2. Train the first-line operators.3.Take initiative to eliminate the trouble rapidly.4. Provide technical exchanging.

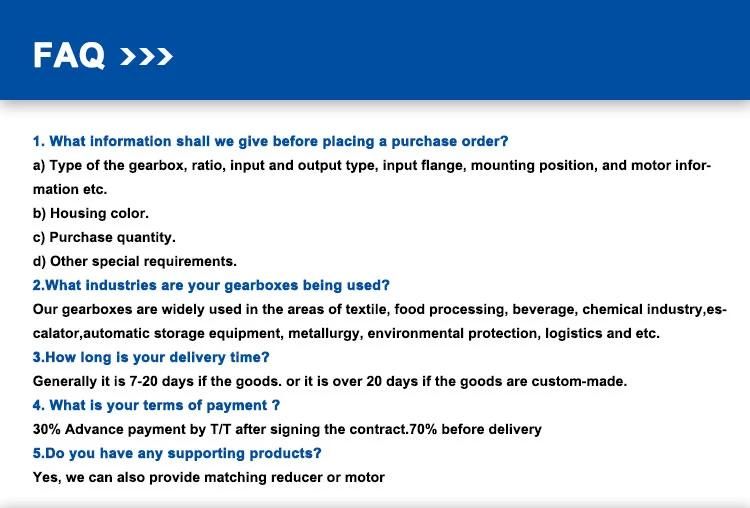

FAQ:
If you have specific parameters and requirement for our gearbox, customization is available.
Installation:
Foot-mounted
B5 Flange-mounted
B14 Flange-mounted
Shaft-mounted
Lubrication:
Oil-bath and Splash Lubrication
Cooling:
Natural Cooling
Services during selling1.Pre-check and accept products ahead of delivery.2. Help clients to draft solving plans.After-sale services1.Assist clients to prepare for the first construction scheme.2. Train the first-line operators.3.Take initiative to eliminate the trouble rapidly.4. Provide technical exchanging.
FAQ:
If you have specific parameters and requirement for our gearbox, customization is available.
