• Model NO.：X400
• Type：Air Suspension
• Specification：22L*10W*18CM
• Trademark：CARTEEAIR
• Origin：Huizhou, China

Basic Info.

Model NO. X400 Type Air Suspension Specification 22L*10W*18CM Trademark CARTEEAIR Origin Huizhou, China

Product Description

X400 compressor is a 33% duty cycle compressor that works quickly and efficiently putting out 2.54 CFM flow at 0 PSI.
It includes a standard 1/4" NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.

Model No. X400

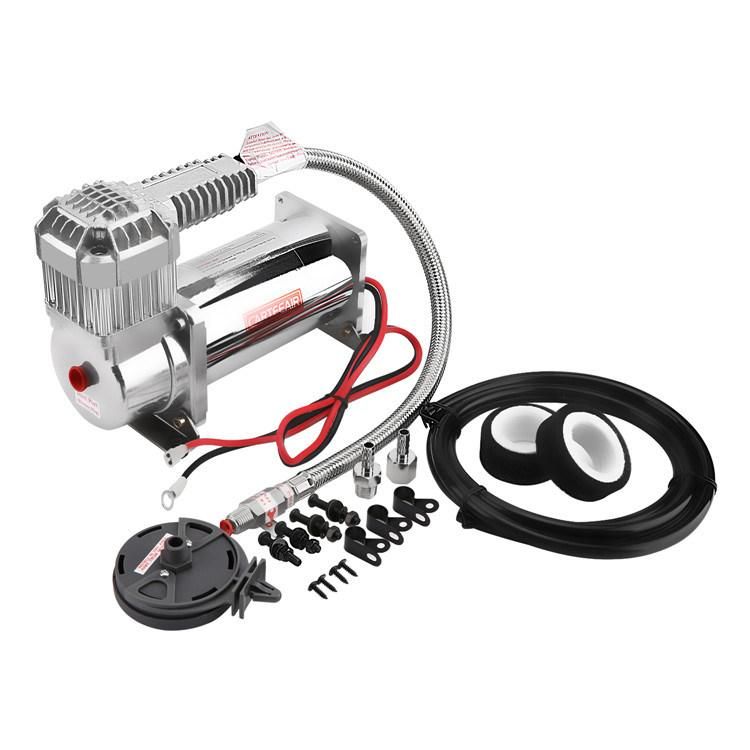

Included Parts:

- Check Valve

- Vibration Isolators

- Mounting Hardware

- Stainless Steel Braided Leader Hose

- Air Line for Remote Mount Air Filter

- Remote Mount Air Filter Assembly

- (2) Replacement Air Filter Elements

SPECIFICATIONS:

- 12-Volt

- Permanent Magnetic Motor

- Duty Cycle: 33% @ 100 PSI

- Max. Working Pressure: 150 PSI

Max. Amp Draw: 30 Amps

Dimensions: 217*100*171.5mm

- Net Weight: 8.75 lbs.

Max. Intermittent Pressure: 250PSI

Max. Flow Rate: 72L/Min (2.54CFM)



Tank Fill Rates

Begin/End PSI	2.5 Gallon Tank
0 to 105 PSI	1 Min. 27 Sec.
85 to 105 PSI	17 Seconds
0 to 145 PSI	2 Min. 20 Sec.
110 to 145 PSI	48 Seconds



Begin/End PSI	5.0 Gallon Tank
0 to 105 PSI	2 Min. 55 Sec.
85 to 105 PSI	35 Seconds
0 to 145 PSI	4 Min. 50 Sec.
110 to 145 PSI	1 Min. 40 Sec.

PERFORMANCE DATA

PSI	CFM	A	BAR	LPM	A
0	2.54	16	0	72.0	16
10	2.39	18	1.0	65.0	20
20	2.21	20	2.0	60.0	23
30	2.11	22	3.0	56.0	25
40	2.01	24	4.0	53.0	27
50	1.93	25	5.0	49.0	28
60	1.84	26	6.0	46.0	28
70	1.73	27	7.0	42.0	28
80	1.65	27	8.0	38.0	28
90	1.52	27	9.0	35.0	27
100	1.45	27	10.0	31.0	27
110	1.35	27
120	1.26	27
130	1.19	27
140	1.08	27
150	1.01	26

* Supply Voltage: 13.8 Volts
Features:

• IP 67 Rated
• Gearless, direct-driven electric motors
• Oil-less design requires no maintenance (besides filter inspection/replacement)
• High performance and highly reinforced PTFE piston ring
• Anodized piston cylinder for increased wear protection
• Precision, high speed, durable bearings for increased piston & motor life
• Sealed motor housing for moisture resistance
• Environmental seals where electrical connections enter motor housing
• Efficient, oversized heat sink head assembly for increased heat dissipation, duty cycle & performance
• High performance check valve to eliminate restart pressure on head and piston
• Direct or remote mount option air filter assembly
• Replacement air filter elements (filtration to 10 microns)
• Stainless steel braided leader hose (PTFE lined where applicable)
• Heavy duty mounting feet (omega and standard styles, as applicable)
• Reinforced vibration isolators for safe & quiet operation
• Mounting hardware (bolts, washers, locking washers, nuts)
• Thermal Overload Protection (T.O.P. equipped compressors only) to protect compressor from overheating during normal operational duty cycle
• Maximum operating temperature of 158° F
• Minimum operating temperature of -40° F (unless otherwise noted)
• Wire terminal ends to simplify installation (ring ground terminal, spade positive lead terminal)
